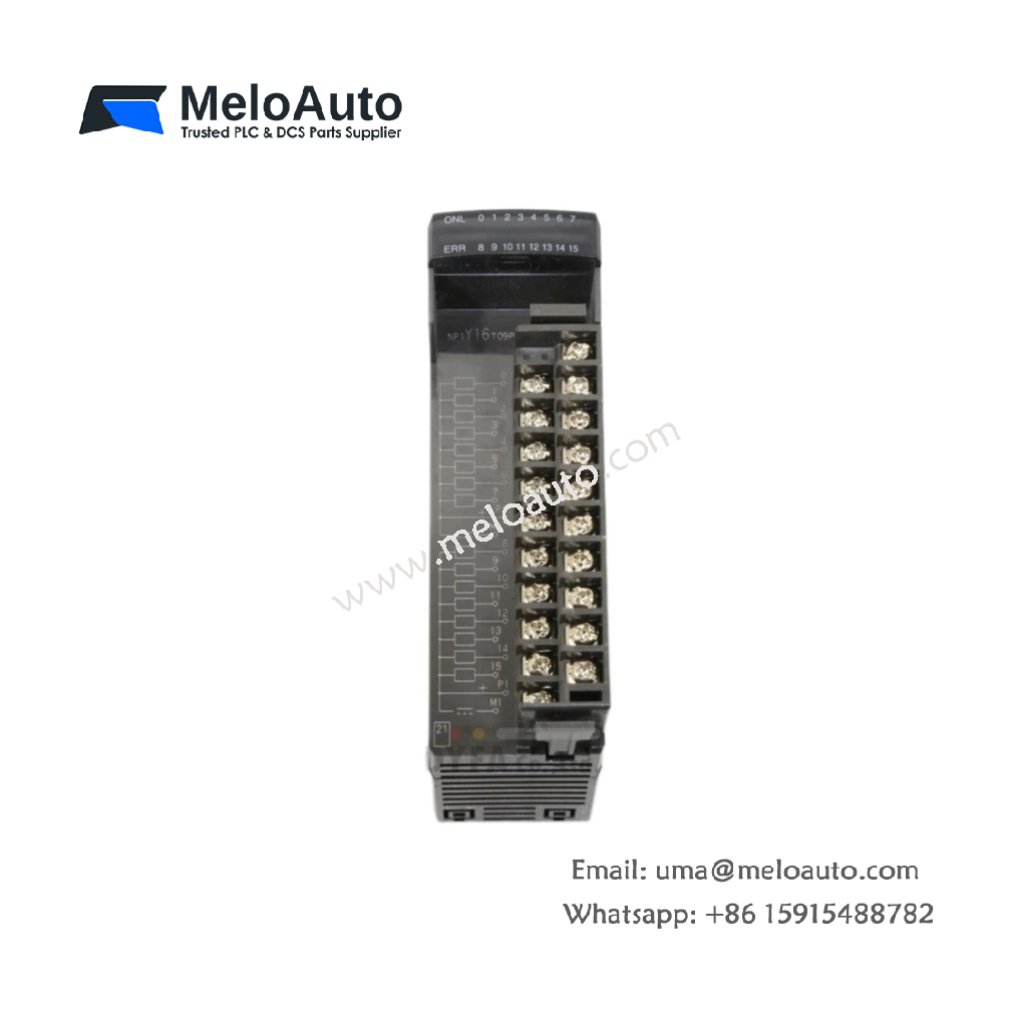

FUJI NP1Y16T09P6 Standard I/O Module

This standard I/O module provides transistor output control for MICREX-SX PLC systems. The FUJI NP1Y16T09P6 features sixteen independent sinking output channels. Each channel delivers 24V DC at 0.5A for driving solenoids and indicator lamps. Consequently, automation engineers can control multiple field devices with high-speed switching.

Technical Specifications of the Standard I/O Module

The FUJI NP1Y16T09P6 measures 113.6 mm in width and 90 mm in height. Its depth reaches 76 mm for standard MICREX-SX rack mounting. The module weighs approximately 0.27 kg including all output and isolation circuitry. A single front panel LED array shows the on-off status for each output channel. The front side features a removable screw terminal block for field wiring connections. This design stores minimal energy in small suppression capacitors only. Therefore, the module contains no batteries or large energy storage elements.

Parameter	Specification
Brand	Fuji Electric
Full Model	NP1Y16T09P6
Category	Standard I/O Module (Transistor Output)
Dimensions (W x H x D)	113.6 mm x 90 mm x 76 mm
Weight	Approximately 0.27 kg
Output Channels	16 independent outputs
Output Type	24V DC, sinking (NPN)
Output Current	0.5A per channel, 4A per common
Response Time	0.5 ms typical
Protection	Short circuit and overcurrent
Isolation	1500V AC optical per channel
Terminal Type	Removable screw blocks
Energy Storage	Minimal (suppression only)
Supply Voltage	5V DC from backplane, 24V DC field power

Functional Features and Output Protection

The FUJI NP1Y16T09P6 includes built-in short circuit protection on every output channel. You can connect outputs directly to inductive loads without external diodes. The module automatically shuts down a channel during overload conditions. Each output also features a green LED indicator for visual troubleshooting. Consequently, maintenance teams can identify faulty circuits instantly without meters.

Installation and System Integration

You must install this output module into a standard MICREX-SX rack slot. The FUJI NP1Y16T09P6 communicates with the CPU through the high-speed backplane. A removable terminal block accepts field wiring from 14 to 22 AWG. The module requires an external 24V DC supply for output field power. Always verify load current limits before connecting multiple devices to one common.

Maintenance and Operational Benefits

Because the FUJI NP1Y16T09P6 stores no battery-backed data, it needs no periodic battery changes. Technicians can replace the module without losing any configuration settings. The transparent terminal cover prevents accidental contact with live output wires. Consequently, this transistor output module offers safe and simple maintenance for high-speed control applications.
