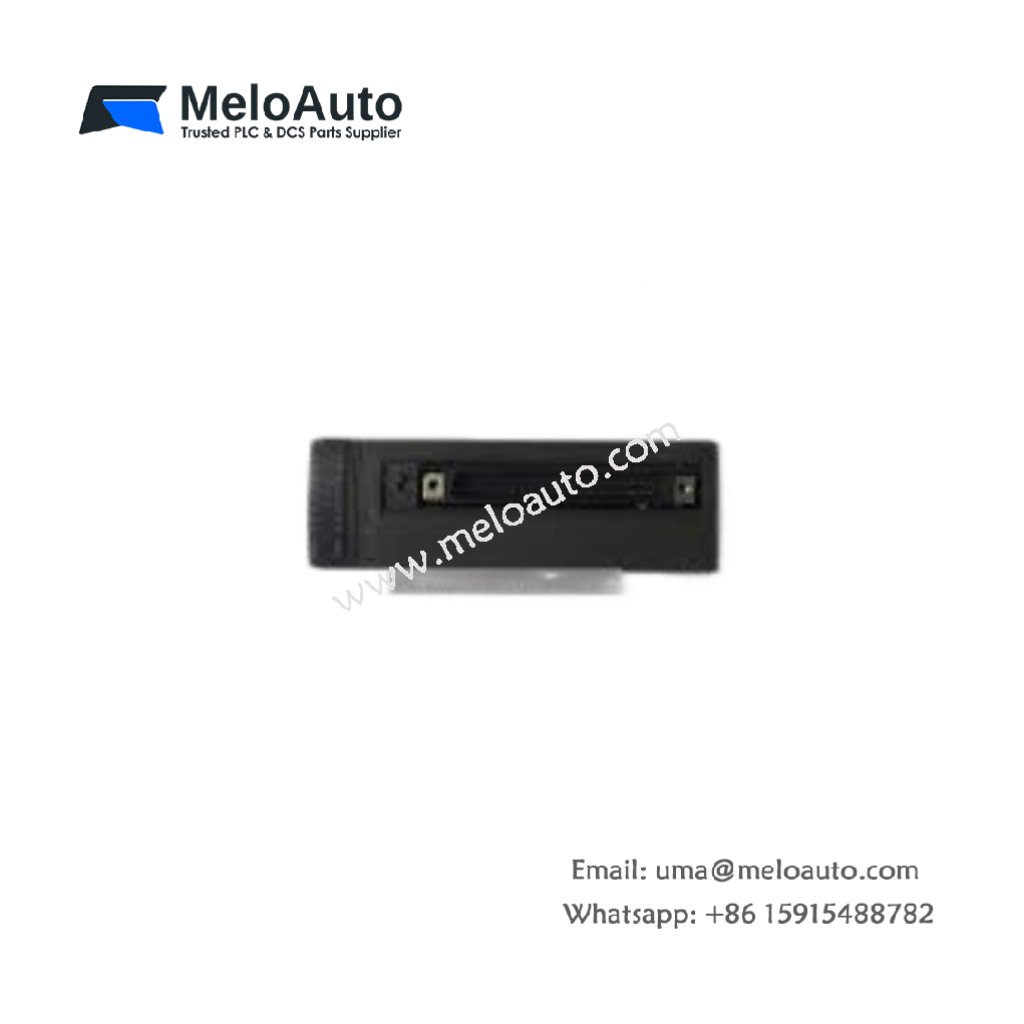

FUJI NP1Y08S Digital Output Module

The FUJI NP1Y08S functions as a compact digital output module within the Fuji NP1 series, designed for precise signal control. This unit delivers eight independent output channels for driving actuators, relays, and indicator lamps. You can depend on its robust construction to maintain reliable switching in demanding manufacturing environments. It provides the essential interface between your PLC logic and field devices.

Technical Specifications

Parameter	Specification
Model Number	FUJI NP1Y08S
Category	Digital Output Module
Output Type	Transistor (sink type)
Number of Points	8 independent outputs
Rated Voltage	12-24V DC
Max Load Current	0.5A per point, 4A per common
Isolation Method	Optocoupler isolation
Response Time	OFF to ON: 0.5 ms max, ON to OFF: 1.5 ms max
Dimensions	65 mm x 70 mm x 85 mm
Weight	150 grams
Power Consumption	50 mA from 5V DC backplane
External Supply	24V DC ±10%
Operating Temp	0°C to 55°C
Terminal Style	Removable screw terminal block
LED Indicators	Green LED per channel for status
Short Protection	Built-in overcurrent protection
Common Wiring	4 points per common (2 commons total)

Output Performance and Switching Characteristics

The FUJI NP1Y08S delivers fast and precise switching for time-critical automation tasks. Its transistor outputs provide millisecond-level response times without the mechanical wear of relays. Consequently, you achieve consistent performance across millions of switching cycles in high-speed applications.

Each output channel handles up to 0.5 amps continuously for driving small solenoids and indicators. The module distributes its eight points across two common terminals for flexible wiring configurations. This arrangement simplifies installation while maintaining proper current distribution.

Protection Features for System Reliability

Industrial environments expose output modules to various electrical stresses and fault conditions. The FUJI NP1Y08S incorporates multiple protection mechanisms to safeguard both the module and connected loads. Built-in overcurrent protection prevents damage from accidental short circuits on output wiring.

Optocoupler isolation separates the internal logic circuits from external field wiring completely. This isolation blocks harmful voltage transients from reaching the PLC backplane. Therefore, you protect sensitive control components while maintaining signal integrity.

Physical Design and Installation

Space constraints often challenge control panel designers during system layout. The FUJI NP1Y08S features a compact footprint that minimizes panel space requirements while maintaining accessibility. Its removable terminal blocks simplify wiring replacement without disturbing existing connections.

Green LED indicators on the module face show the real-time status of each output channel. Technicians can quickly verify operation during commissioning and troubleshooting without additional tools. This visibility reduces diagnostic time and keeps production lines running.

Integration with Fuji Automation Systems

The FUJI NP1Y08S connects seamlessly with Fuji NP1 series CPUs and other system components. It mounts directly on the same backplane as power supplies and input modules for a unified assembly. This integration simplifies system design and reduces wiring complexity between devices.

You can combine this output module with protection devices like the RMS TSG TZ C Static Trip unit for comprehensive system safety. The fast switching response ensures coordinated operation between control logic and protective elements. Trust Fuji’s modular approach to deliver flexible solutions for any automation requirement.
