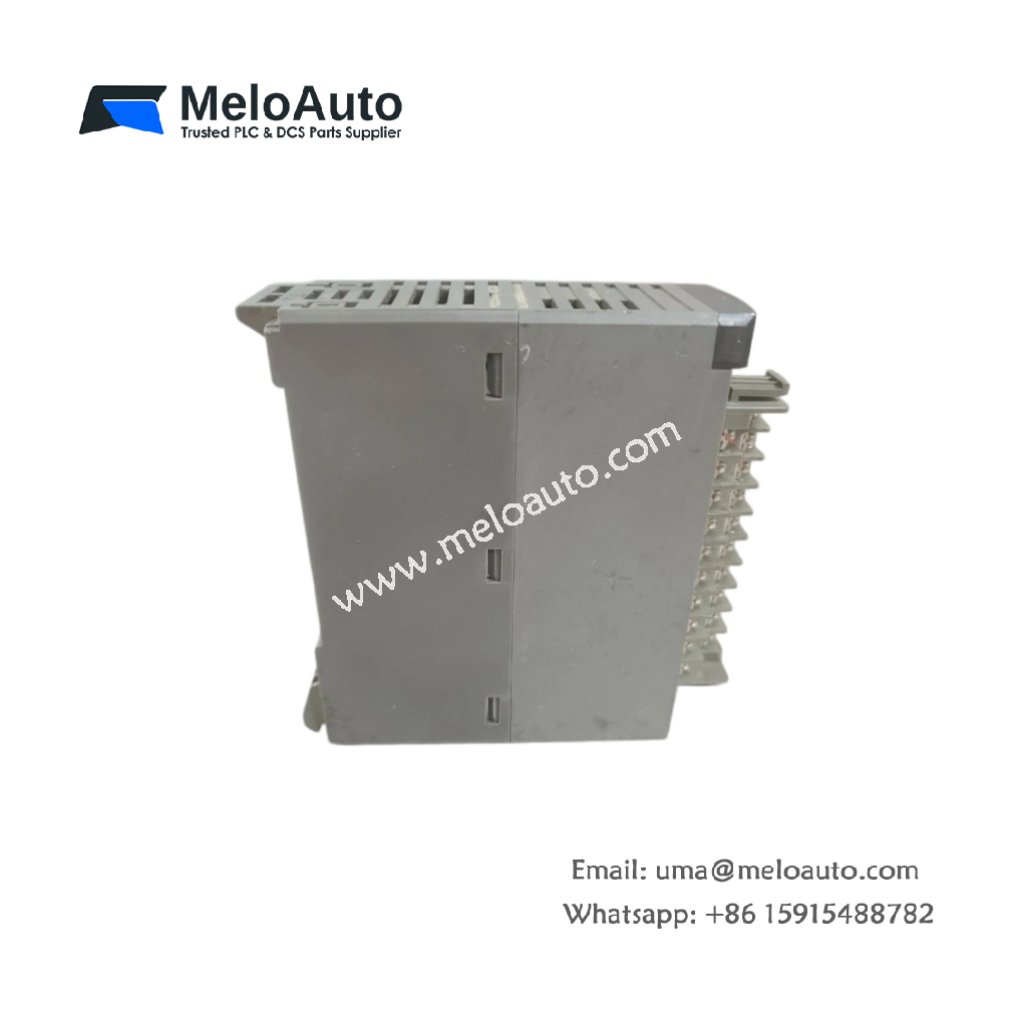

Fuji NP1X3206-W Digital Input Module

Input Architecture and Signal Detection

The Fuji NP1X3206-W delivers 32 discrete input points for interfacing with field sensors and switches. Each input channel accepts 24 VDC signals with a nominal current draw of 7 mA. This unit employs optical isolation technology to protect the backplane from electrical noise and transients. It operates effectively in applications requiring high-density input monitoring in industrial environments.

This input module features individual channel filtering that eliminates signal bounce and contact chatter. Each channel incorporates LED indicators that display the real-time status of connected field devices. Consequently, engineers can quickly verify signal states during system startup and troubleshooting procedures.

Physical Specifications and Mounting

The NP1X3206-W measures 12.0 cm in height, 7.5 cm in width, and 11.5 cm in depth. It weighs approximately 0.27 kg, allowing for straightforward installation in standard Fuji NP1 Series racks. This module occupies a single slot on the baseplate and connects directly to the backplane power bus. The front panel features 32 LED indicators that display the real-time status of each input channel. These visual indicators provide immediate feedback during system startup and troubleshooting.

A 50-pin Fujitsu-style connector provides the interface for all field wiring connections. This connector supports standard ribbon cable assemblies for simplified integration with terminal blocks. The module also includes keying features that prevent incorrect cable attachment during installation.

Power Consumption and Energy Storage

This input module draws 100 mA from the backplane at 5 VDC for internal logic operation. It requires an external 24 VDC supply to power the input field circuits. The module incorporates energy storage capacitors that maintain input status during brief power interruptions. These capacitors provide approximately 10 milliseconds of hold-up time to prevent nuisance fault reporting.

Technical Specifications

System Integration and Compatibility

The NP1X3206-W integrates seamlessly with Fuji NP1 Series CPUs, power supplies, and output modules. It works alongside output modules such as the NP1Y32U09P1 for complete I/O configurations. Users can combine this digital input module with any NP1 Series baseplate configuration for scalable system design. Always verify total input current requirements before connecting field devices to ensure reliable operation.
