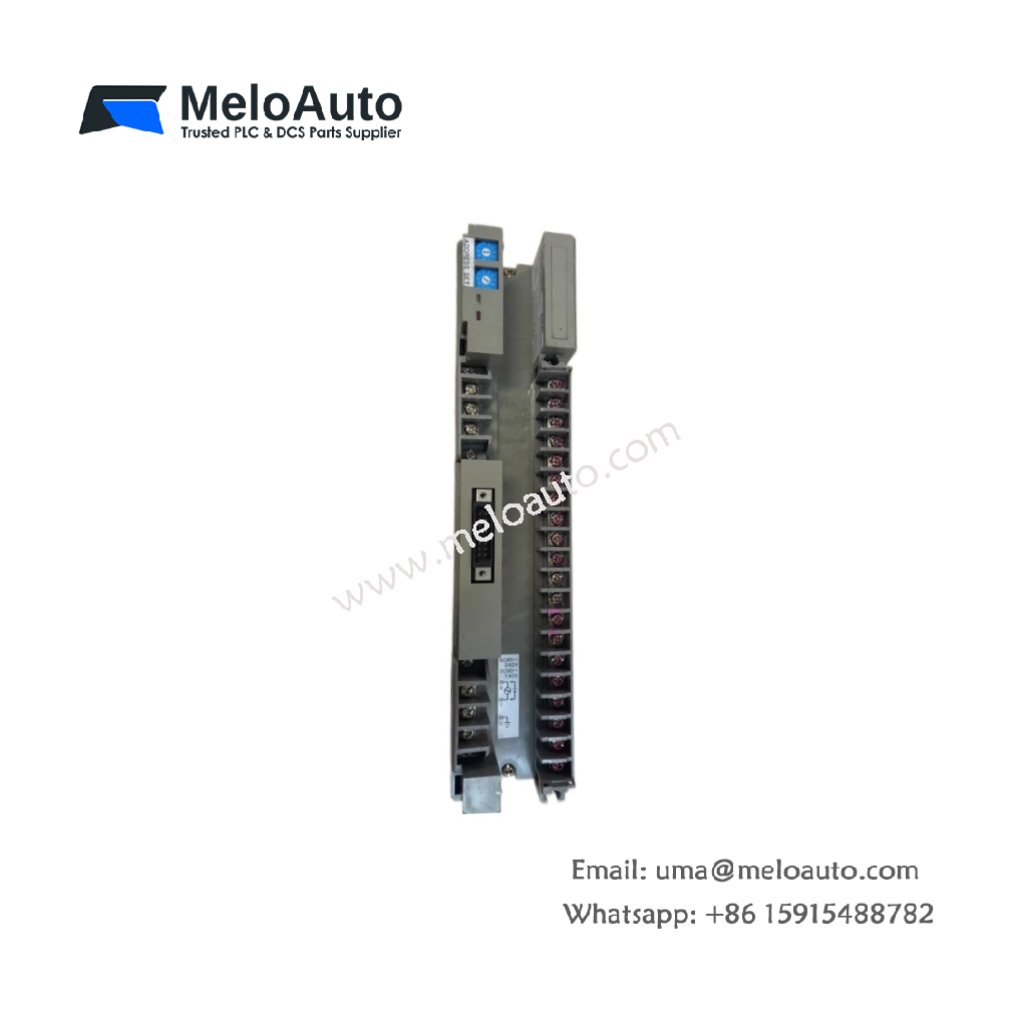

Fuji NP1PS-74D CPU Module

Processing Architecture and Control Performance

The Fuji NP1PS-74D functions as a high-performance central processing unit for the NP1 Series programmable controller platform. It executes user programs with exceptional speed for demanding real-time control applications. This CPU module supports discrete, analog, and specialty I/O configurations through the backplane interface. It manages complex machine logic, process control, and data processing tasks efficiently.

This CPU unit contains onboard program memory with capacity for up to 74,000 steps of user application code. It features flash memory technology that retains programs without battery backup during power loss. Consequently, users can restore operation immediately after system power cycles without reloading programs.

Physical Specifications and Interface Connections

The NP1PS-74D measures 12.0 cm in height, 7.5 cm in width, and 11.5 cm in depth. It weighs approximately 0.38 kg, allowing for straightforward installation in standard Fuji NP1 Series racks. This processor occupies a single slot on the baseplate and connects directly to the backplane bus. The front panel features LED indicators for power, run, stop, and error status monitoring. These visual indicators provide immediate feedback during system startup and troubleshooting.

This unit includes two communication ports for programming and network connectivity. A 9-pin D-sub connector provides RS-232C interface for programming software and operator panels. The module also features a dedicated peripheral port for direct connection to handheld programmers or PC-based configuration tools.

Energy Storage and Data Retention

The NP1PS-74D incorporates energy storage capacitors that maintain real-time clock operation during brief power interruptions. These capacitors provide approximately 10 days of clock retention at rated temperature conditions. The module also features non-volatile flash memory that preserves user programs without battery support. A lithium battery option provides extended data retention for critical system parameters and diagnostic logs.

Technical Specifications

System Integration and Programming

The NP1PS-74D integrates seamlessly with Fuji NP1 Series I/O modules, power supplies, and expansion units. It supports programming through Fuji standard software or handheld programmers for flexible configuration options. Users can combine this CPU with digital input modules like NP1X3206-W and output modules such as NP1Y32U09P1 for complete system configurations. This modular design allows engineers to build scalable control systems tailored to specific application requirements.
