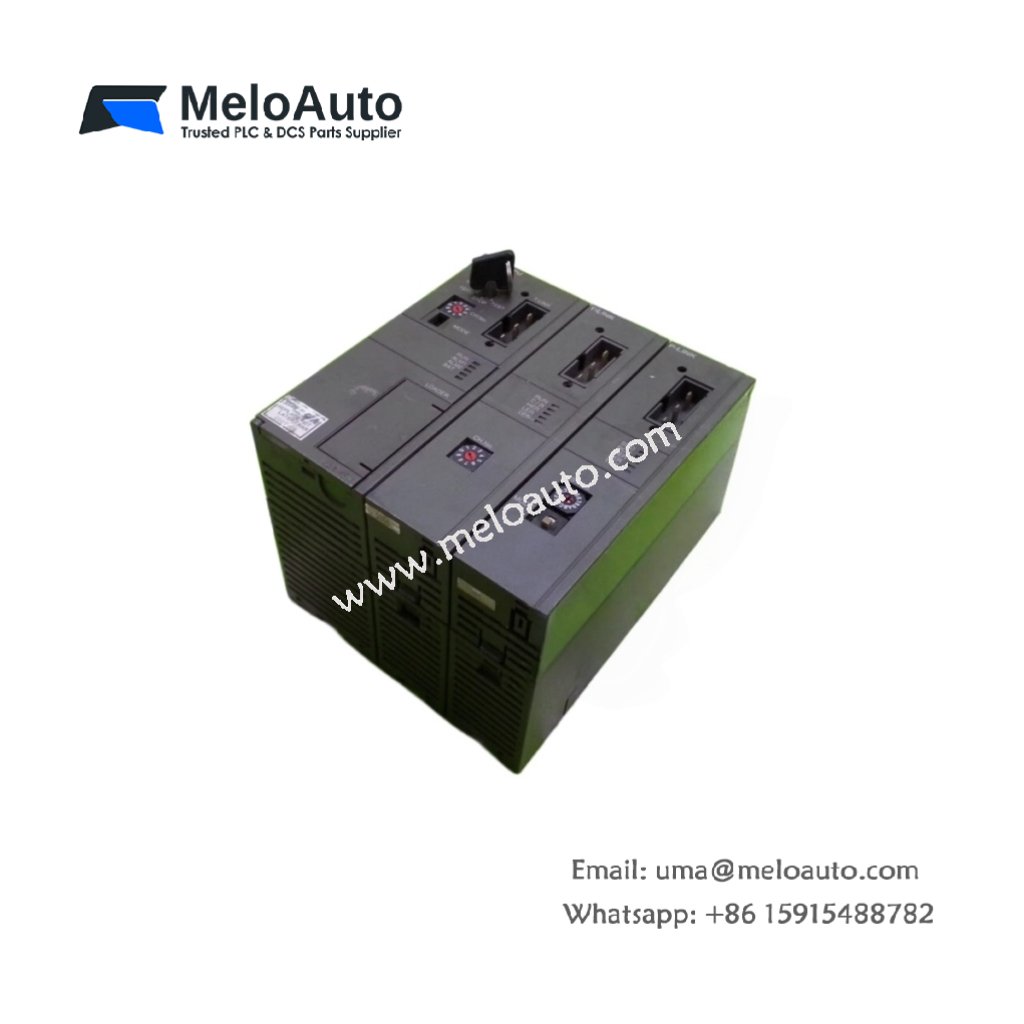

Fuji NC1P-S2 Processor Module

High-Speed Logic Processing for Compact Systems

This processor module serves as the central intelligence for your MICREX-SX controller. The Fuji NC1P-S2 executes ladder logic programs with consistent high-speed performance. It manages up to 512 digital I/O points for small to medium automation tasks. A built‑in lithium battery preserves program memory during power interruptions. Consequently, this processor delivers reliable control for packaging machines and assembly stations.

Memory Capacity & Processing Speed

The Fuji NC1P-S2 provides ample memory for typical machine control applications. It processes bit operations within microseconds for real-time responsiveness. A dedicated programming port allows easy code uploads and online diagnostics. The module supports expansion I/O racks for system growth. Therefore, this processor suits original equipment manufacturers and panel builders.

Parameter	Detailed Specification
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to +70°C
Humidity Range	20% to 95% RH (no condensation)
User Memory	16 KB (battery‑backed RAM)
Max Digital I/O	512 inputs + 512 outputs
Max Analog I/O	64 channels
Bit Operation Speed	0.5 µs per instruction
Word Operation Speed	2.5 µs per instruction
Programming Port	1 x RS‑232C (front panel)
Status LEDs	4 (RUN, STOP, ERROR, BATT)
Compatible Rack	MICREX-SX (any slot)
Power Supply	24V DC via backplane
Current Draw	200 mA typical
Energy Storage	Lithium battery (5‑year life) + 220 µF capacitor

Installation & System Integration

You insert the Fuji NC1P-S2 into any available slot of your MICREX-SX rack. The processor communicates with I/O modules through the high‑speed backplane bus. You program this processor using standard Fuji MICREX‑SX software tools. The module supports online program monitoring for easy troubleshooting. Consequently, maintenance teams diagnose issues without stopping production.

Operational Advantages & Compact Design

The Fuji NC1P-S2 fits into systems where rack space is limited. Its low power consumption generates minimal heat inside control cabinets. A built‑in watchdog timer resets the processor automatically during software faults. The battery-backed memory retains your program for up to five years without external power. Therefore, this Fuji processor provides reliable performance for demanding machine control applications.
