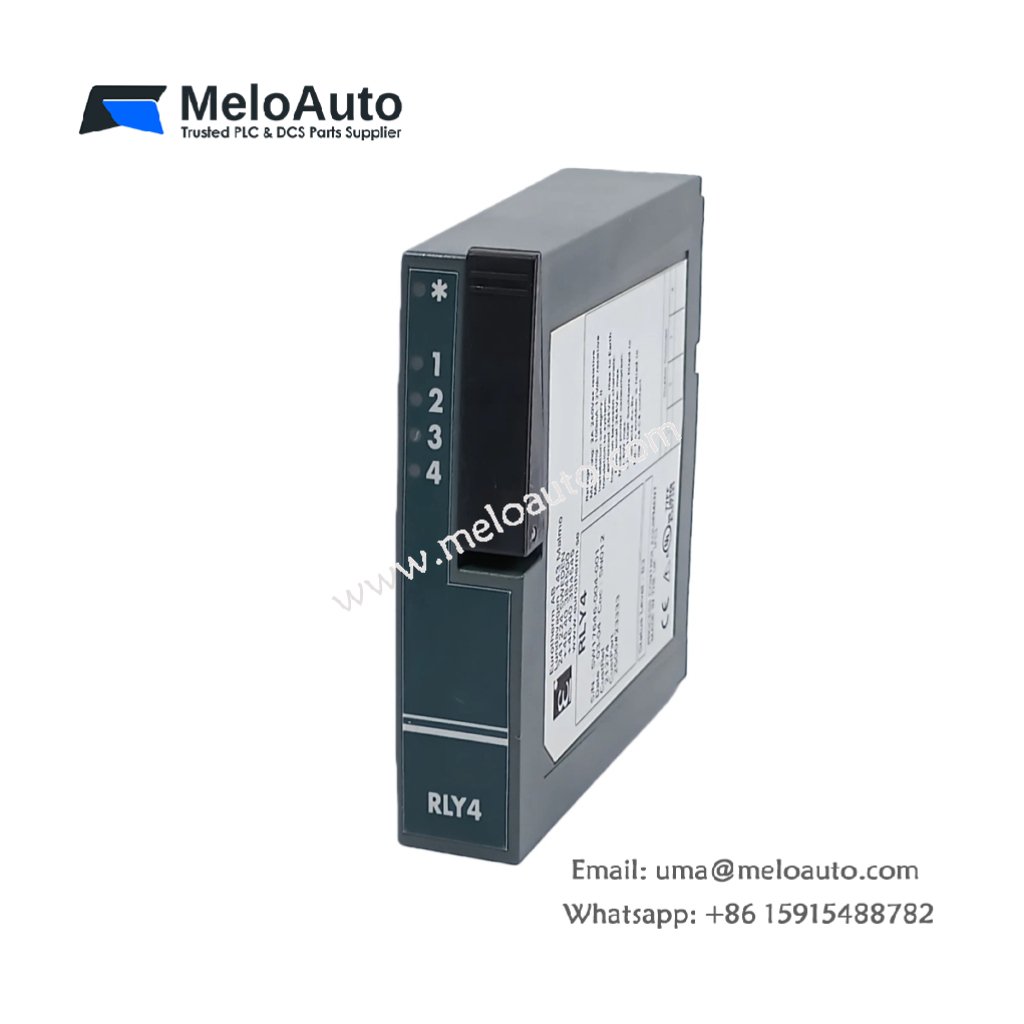

Foxboro RLY4 2500M/RLY4/XXXXX/XXXXXX Relay Output Module

Overview

The Foxboro RLY4 2500M/RLY4/XXXXX/XXXXXX relay output module delivers high performance for controlling industrial devices such as motors, valves, and alarms. It integrates seamlessly with the Foxboro I/A Series Distributed Control System (DCS). This module features four independent relay output channels, ensuring reliable operation across various applications. Its robust design guarantees excellent performance, even in harsh industrial environments.

Key Features

Four Independent Relay Channels: Provides reliable control for multiple devices simultaneously.
Voltage and Current Rating: Each channel supports 2500 volts and 10 amps, ensuring dependable performance in demanding applications.
Galvanic Isolation: Each channel is galvanically isolated from the others and from ground, effectively minimizing electrical noise and preventing interference.
High Reliability: Engineered for durability, the Foxboro RLY4 2500M/RLY4/XXXXX/XXXXXX offers long-term service with minimal maintenance needs.
Wide Application Range: Perfect for controlling a variety of industrial devices like motors, valves, alarms, and more.
Durable and Compact Design: Its rugged enclosure withstands tough environments while maintaining a compact form for easy installation.
Flexible Installation: The module fits easily into tight spaces, making it ideal for installations with space constraints.

Technical Specifications

Parameter	Specification
Model Number	Foxboro RLY4 2500M/RLY4/XXXXX/XXXXXX
Number of Channels	4
Voltage Rating (Per Channel)	2500 Volts
Current Rating (Per Channel)	10 Amps
Galvanic Isolation	Yes, each channel is isolated from others and from ground.
Housing Material	Rugged, industrial-grade enclosure
Mounting Type	DIN Rail or Panel Mount
Operating Temperature Range	-20°C to +60°C (-4°F to +140°F)
Dimensions (L x W x H)	140 mm x 95 mm x 60 mm (5.51 in x 3.74 in x 2.36 in)
Weight	Approx. 0.6 kg (1.32 lbs)
Application Range	Industrial, HVAC, Pharmaceutical, Food & Beverage

Applications

The Foxboro RLY4 2500M/RLY4/XXXXX/XXXXXX relay output module is ideal for various industrial applications, including:

Industrial Processes: Power generation, oil and gas production, and chemical processing.
HVAC Systems: Efficient control of valves, motors, and other equipment.
Food & Beverage Processing: Ensuring smooth operation of machinery and alarm systems.
Pharmaceutical Manufacturing: Perfect for controlling critical devices in highly regulated environments.

Benefits

Noise Reduction: Galvanic isolation effectively prevents electrical noise and ensures consistent signal integrity.
Versatile Control: Offers flexibility in controlling different types of devices, improving system versatility.
Space-Saving Design: Compact size allows installation in confined spaces without compromising functionality.
High Durability: Built to last, the module requires minimal maintenance, providing long-term operational reliability.

Conclusion

The Foxboro RLY4 2500M/RLY4/XXXXX/XXXXXX relay output module is a highly reliable solution for controlling industrial devices. With its robust features, compact size, and high-voltage rating, it is well-suited for demanding applications in industries such as power generation, HVAC, and food processing. Its easy installation and long-lasting performance make it an excellent choice for any industrial control system.
