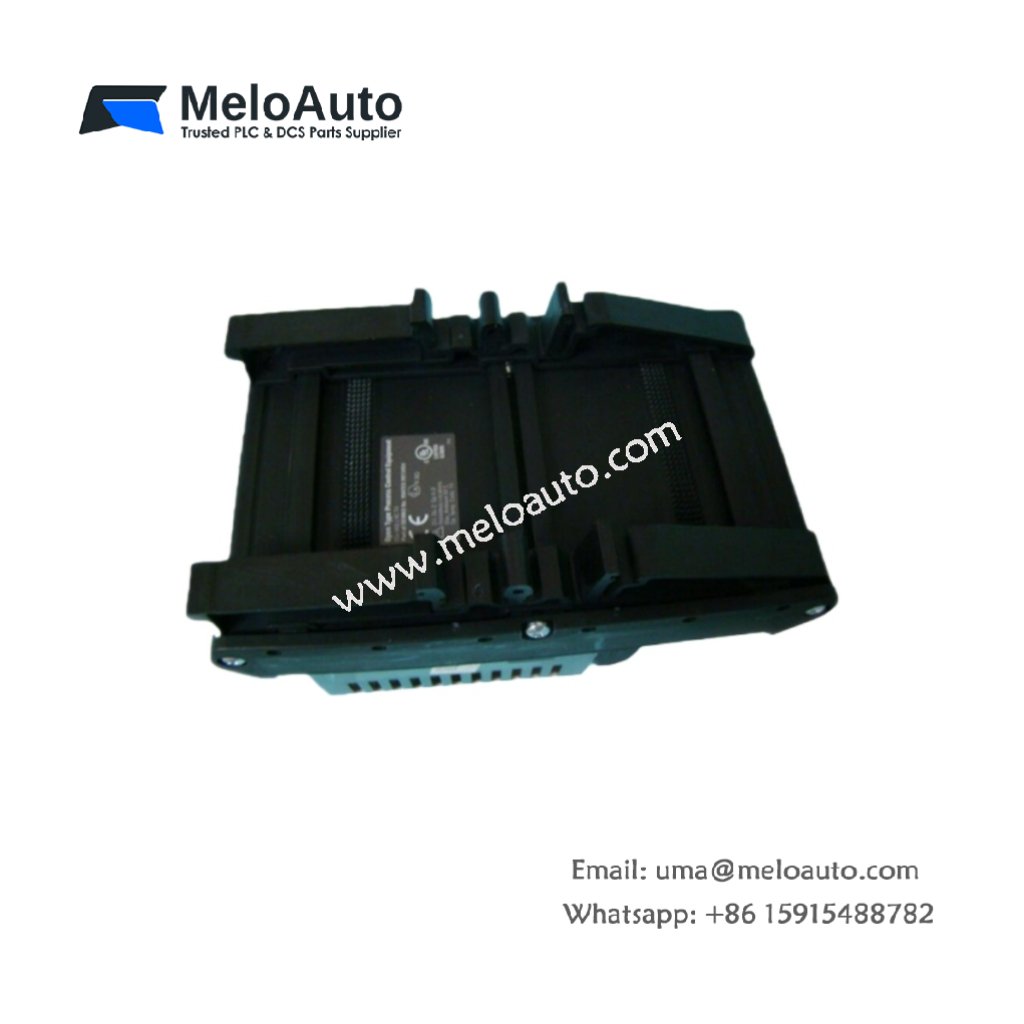

Foxboro P0916CC Termination Assembly

Overview

The Foxboro P0916CC serves as a crucial termination assembly for the I/A Series Distributed Control System (DCS). It provides a reliable connection point for field devices while offering protection against electrical noise and transients. Designed to withstand harsh industrial environments, this termination assembly ensures durability and consistent performance in critical process control applications.

Key Features

16 Screw-Type Terminals: Ensures secure and reliable connections for multiple field devices.
Rugged Polycarbonate Construction: Built to endure tough environments, ensuring long-term reliability.
Enhanced Protection: Offers protection against electrical noise and transients, improving system stability.
Compact Design: Ideal for installation in space-constrained control panels and systems.

Technical Specifications

Specification	Value
Manufacturer	Foxboro
Model Number	P0916CC
Product Type	Termination Assembly (I/A Series)
Number of Terminals	16
Termination Type	Screw-type
Material	Polycarbonate
Operating Temperature Range	-40°C to +80°C ( -40°F to +176°F)
Relative Humidity	0 to 95% RH (non-condensing)
Ingress Protection	IP66

Applications

The Foxboro P0916CC termination assembly is ideal for use in:

Process control systems
Industrial automation applications
Control panels and electrical systems in harsh environments

Conclusion

The Foxboro P0916CC is a reliable termination assembly designed for use with the I/A Series DCS. With 16 screw-type terminals, it provides secure connections while offering protection against electrical disturbances. Its rugged design and wide operating temperature range make it perfect for harsh industrial environments.
