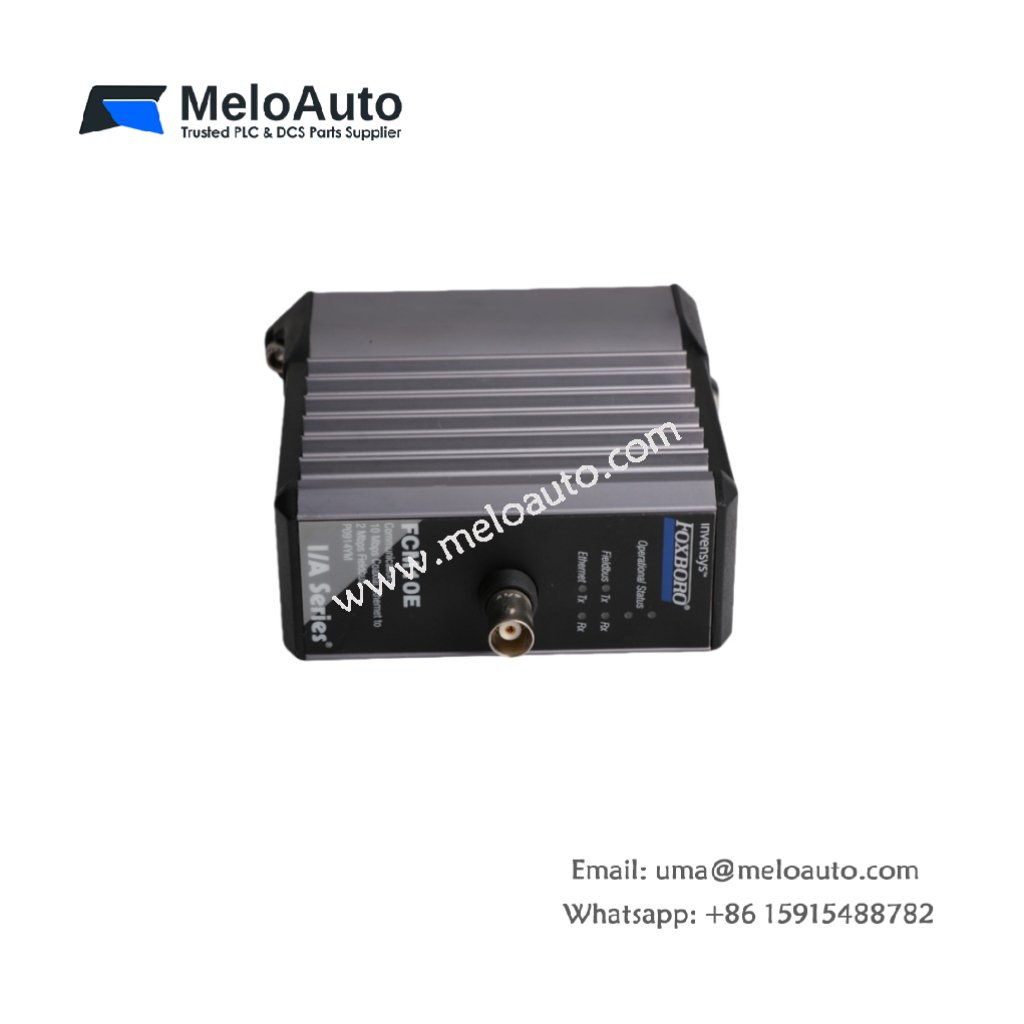

Foxboro FCM10E P0914YM Communications Module

Overview

The Foxboro FCM10E P0914YM is a reliable communications module designed to integrate DIN rail-mounted Fieldbus Modules (FBMs) with I/A Series control stations. This module supports high-speed 10 Mbps Ethernet trunk Fieldbus communication and offers an optional redundant configuration. The FCM10E P0914YM ensures robust, seamless communication, making it ideal for industrial and process control applications.

Key Features

High-Speed Communication: Supports 10 Mbps Ethernet trunk Fieldbus, ensuring fast and efficient data transmission.
DIN Rail Mountable: Designed to work with DIN rail-mounted FBMs, facilitating easy integration into existing systems.
Optional Redundancy: Provides an optional redundant configuration for improved system reliability and uptime.
Compact Design: The features a rugged, compact design, making it suitable for harsh industrial environments.
Easy Installation: The module is designed for quick installation and configuration, minimizing system downtime.

Technical Specifications

Parameter	Specification
Manufacturer	Foxboro (now part of Schneider Electric)
Model Number	FCM10E P0914YM
Product Type	Communications Module
Fieldbus Communication	10 Mbps Ethernet trunk
Redundancy	Optional Redundancy
Supported FBM Type	DIN rail-mounted FBMs
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Dimensions (L x W x H)	10.4 cm x 4.5 cm x 8.5 cm
Weight	Approx. 0.45 kg (1 lb)
Power Requirements	24 VDC, Max Power Consumption: 3 W
Mounting	DIN Rail Mountable

Applications

The Foxboro FCM10E P0914YM is ideal for several industries and automation applications, including:

Process Control: Facilitates efficient communication in process control systems.
Industrial Automation: Enables fast and reliable data exchange between Fieldbus modules and control stations.
Building Automation: Ensures seamless communication for building management systems.
