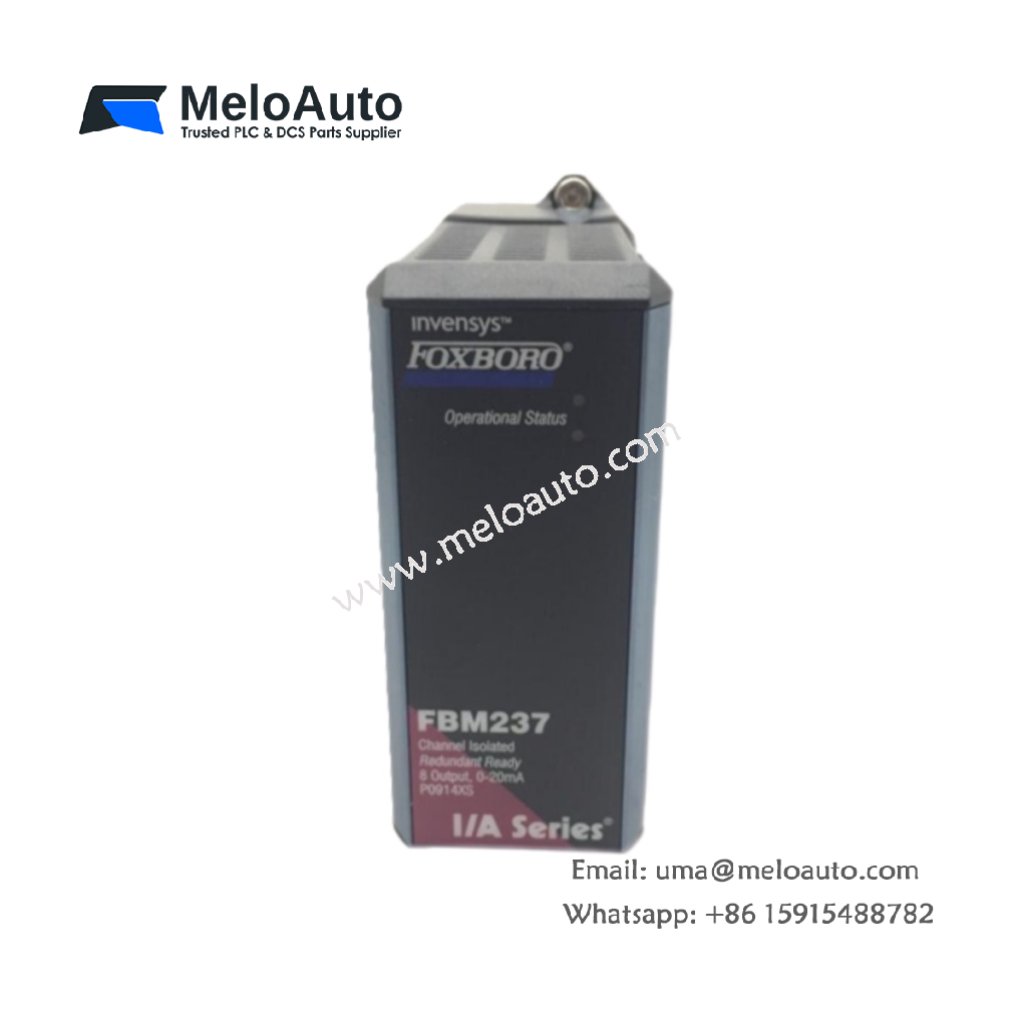

Foxboro FBM237 P0914XS 0 to 20 mA Output Module

The Foxboro FBM237 P0914XS is a robust 0 to 20 mA Output Module designed to offer eight isolated output channels. Each channel features galvanic isolation, ensuring protection from electrical noise and interference. This module is a reliable choice for industrial automation systems, and it can operate as a single unit or in a redundant configuration for added reliability. The redundancy option ensures continuous operation even in the event of a module failure. Furthermore, the FBM237 P0914XS is compatible with HART® field devices, enhancing its versatility.

Key Features:

Eight 0 to 20 mA Output Channels: The FBM237 P0914XS provides eight individual channels, each capable of delivering a 0 to 20 mA DC output, ideal for controlling and monitoring various industrial parameters.
Galvanic Isolation: Each channel is galvanically isolated, preventing ground loop issues and reducing the risk of electrical interference.
Redundancy for Enhanced Reliability: You can configure the FBM237 in a redundant setup, ensuring uninterrupted operation even during module failure. This feature minimizes downtime and supports continuous system performance.
Rugged Construction: Designed to withstand Class G3 harsh environments, the module operates reliably under extreme conditions, making it suitable for demanding industrial applications.
Termination Assemblies (TAs): The module supports local or remote wiring connections via Termination Assemblies (TAs), allowing flexibility in installation and configuration. Additionally, the TA is compatible with an Output Bypass Station, which helps maintain outputs during module maintenance.
HART® Compatibility: The FBM237 P0914XS works seamlessly with standard HART® field devices, making it a flexible solution for process control systems.

Technical Specifications:

Specification	Details
Product Type	0 to 20 mA Output Module
Model Number	FBM237 P0914XS
Manufacturer	Foxboro
Number of Channels	8 isolated output channels
Output Range	0 to 20 mA DC
Galvanic Isolation	Yes, for each channel and from ground
Redundancy Configuration	Single or redundant module setup
Temperature Range	-40 to +70°C (-40 to +158°F)
Relative Humidity	5 to 95% (non-condensing)
Mounting	DIN rail or panel mounting
Vibration Resistance	7.5 m/s² (0.75 g) from 5 to 500 Hz
Dimensions (L x W x H)	10.5 cm x 5.2 cm x 12.4 cm
Weight	0.35 kg (12.3 oz)
HART® Compatibility	Yes

Why Choose the Foxboro FBM237 P0914XS?

The Foxboro FBM237 P0914XS is ideal for industrial automation systems that require reliable and isolated analog output signals. Whether used as a single module or in a redundant configuration, this module ensures maximum system uptime. Its rugged design and galvanic isolation make it suitable for harsh industrial environments, while the compatibility with HART® devices provides greater flexibility and integration possibilities.
