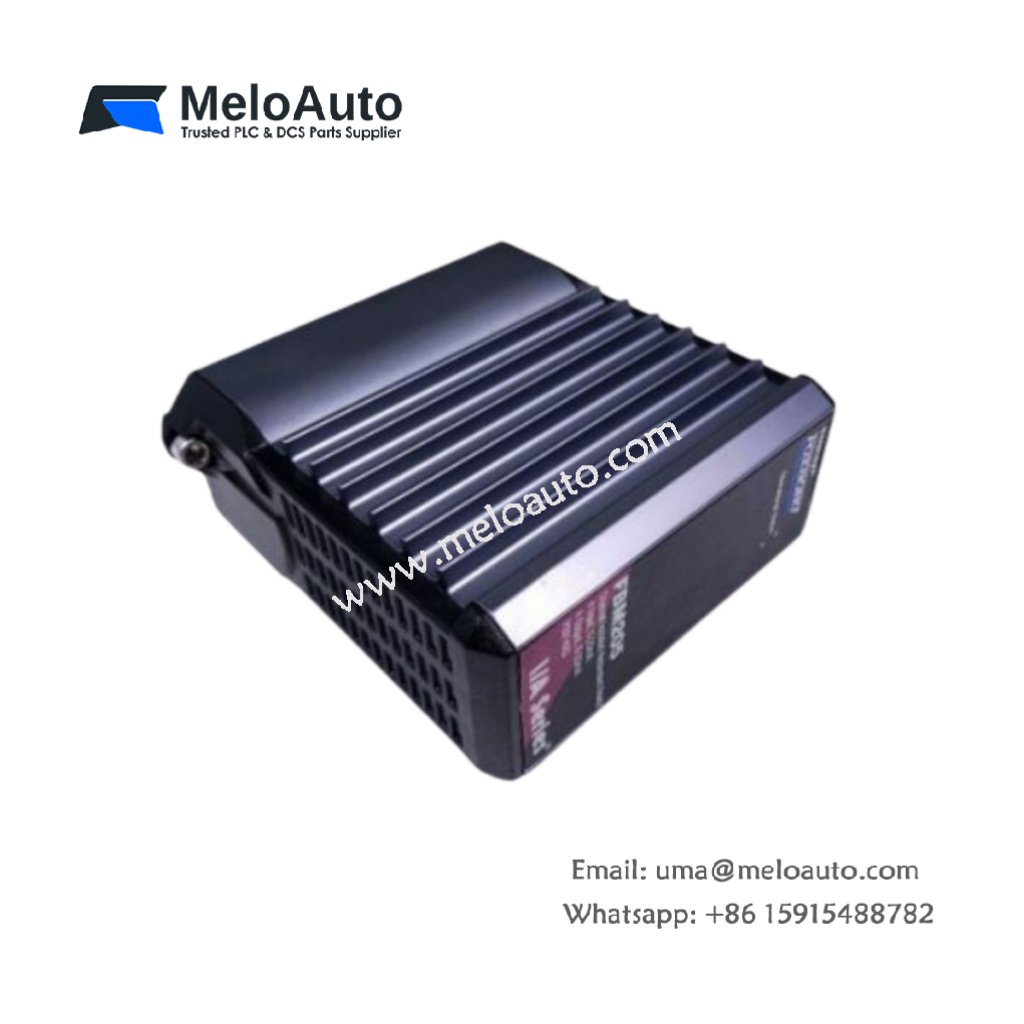

Foxboro FBM205 P0914XG Analog I/O Module

Overview

The Foxboro FBM205 P0914XG is a 4-channel redundant analog input/output module designed for integration within the I/A Series programmable logic controllers (PLC). This module facilitates the connection and measurement of 0-20 mA analog signals from various field sensors. Additionally, it can generate 0-20 mA analog signals for controlling devices such as actuators, valves, and motors. Its redundant channels ensure continuous operation, making it suitable for critical industrial applications requiring high reliability and precision.

Key Features

4 Redundant Channels: Supports both input and output functionality with redundancy for enhanced reliability.
Precise Analog I/O: Input and output range from 0 to 20 mA, ensuring compatibility with a wide range of sensors and devices.
High Accuracy: Accuracy of +0.1% of reading, ensuring precise control and measurement.
12-Bit Resolution: Provides 12-bit resolution for high precision in data conversion and signal generation.
Diagnostics Support: Includes integral diagnostics for efficient troubleshooting, reducing downtime.
Wide Communication Protocol Support: Compatible with Ethernet/IP, Modbus TCP/IP, and DeviceNet, offering flexibility in system integration.

Technical Specifications

Specification	Details
Input/Output Channels	4 redundant channels (input/output)
Input/Output Range	0 to 20 mA
Accuracy	+0.1% of reading
Resolution	12 bits
Power Supply	24 V DC ±10%
Operating Temperature Range	-20°C to +70°C (-4°F to 158°F)
Storage Temperature Range	-40°C to +85°C (-40°F to 185°F)
Humidity Range	5% to 95% RH, non-condensing
Dimensions	7.2 x 3.6 x 2.5 in (183 x 92 x 63 mm)
Weight	0.68 kg (1.5 lbs)
Communication Protocols	Ethernet/IP, Modbus TCP/IP, DeviceNet

Applications

The Foxboro FBM205 P0914XG is ideal for industrial environments that require precise analog signal processing and control. Typical applications include:

Flow Measurement: Monitoring the flow of liquids in pipelines with high precision.
Temperature Monitoring: Measuring the temperature of process fluids in various industrial settings.
Motor Speed Control: Adjusting the speed of motors used in industrial equipment.
Valve Positioning: Controlling the position of valves in automated processes.
Pressure Regulation: Ensuring the stable pressure of gases in critical systems.

Benefits

Redundant Operation: The 4-channel redundancy ensures continuous operation, even in the event of a failure in one channel, making the module suitable for mission-critical applications.
High-Accuracy Control: With an accuracy of +0.1%, the FBM205 P0914XG delivers precise control and measurement for sensitive processes.
Flexible Communication: Supports a range of communication protocols, including Ethernet/IP, Modbus TCP/IP, and DeviceNet, making it versatile for various system configurations.
Compact and Rugged Design: Its durable construction ensures reliable operation in harsh industrial environments, while its compact form factor allows for easy integration into existing setups.
