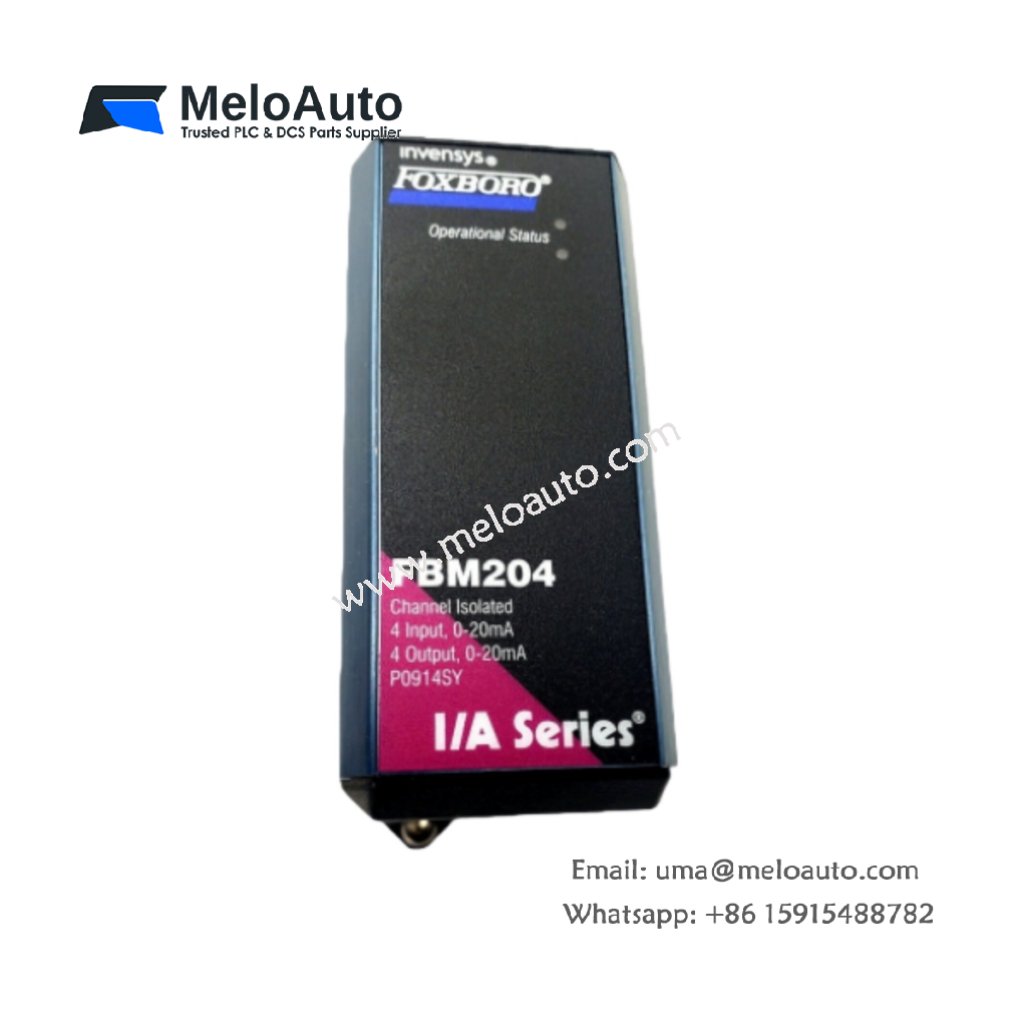

Foxboro FBM204 RH914SY Analog Input/Output Module

The Foxboro FBM204 RH914SY is a high-performance analog input/output module designed for industrial automation systems. This module offers four 0 to 20 mA DC analog input channels and four 0 to 20 mA DC analog output channels. It integrates seamlessly with analog sensors, such as 4 to 20 mA transmitters or self-powered 20 mA sources. The FBM204 RH914SY ensures reliable performance and accurate signal conversion, making it ideal for demanding applications.

Key Features

Galvanic Isolation: The FBM204 provides galvanic isolation for both inputs and outputs, ensuring protection against electrical interference and grounding issues. This feature is crucial for maintaining the integrity of the signals in harsh industrial environments.
High Accuracy: Each channel uses sigma-delta data conversions, delivering exceptional accuracy for both input and output signals. This ensures precise control and monitoring, even in complex systems.
Rugged Design: Built to withstand Class G3 (harsh) environments, the FBM204 ensures long-term durability and reliable operation in challenging conditions.
Compact Design: The module’s compact size allows for easy integration into various enclosures, saving valuable space in industrial control panels.
Easy Maintenance: The FBM204 RH914SY is designed for quick removal and replacement without the need to disconnect field device termination cabling, power, or communication wiring. This minimizes downtime during maintenance.
Visual Indicators: Equipped with LED indicators, the module provides clear visual feedback on the operational status, helping operators quickly identify potential issues and perform troubleshooting.
Fieldbus Communication: The FBM204 interfaces with a redundant 2 Mbps fieldbus, ensuring robust communication and high reliability, even in complex industrial automation systems.

Technical Specifications

Specification	Details
Model Number	FBM204 RH914SY
Manufacturer	Foxboro
Product Type	Analog Input/Output Module
Input Channels	4 channels (0 to 20 mA DC)
Output Channels	4 channels (0 to 20 mA DC)
Isolation	Galvanically isolated inputs and outputs
Compatibility	Compatible with standard HART signals
Accuracy	High accuracy with sigma-delta conversions
Dimensions	Compact design for various enclosures
Environmental Rating	Class G3 (harsh) environments
Communication Interface	2 Mbps fieldbus (redundant)
Visual Indicators	LED status indicators

Why Choose the FBM204 RH914SY?

The Foxboro FBM204 RH914SY provides unmatched reliability and accuracy for analog signal processing in industrial environments. Its galvanic isolation, sigma-delta conversions, and rugged design ensure that it delivers exceptional performance under challenging conditions. Additionally, the compact design and easy maintenance features make it a flexible and efficient choice for various automation applications.
