FLIR E5-XT Infrared Thermal Camera Overview

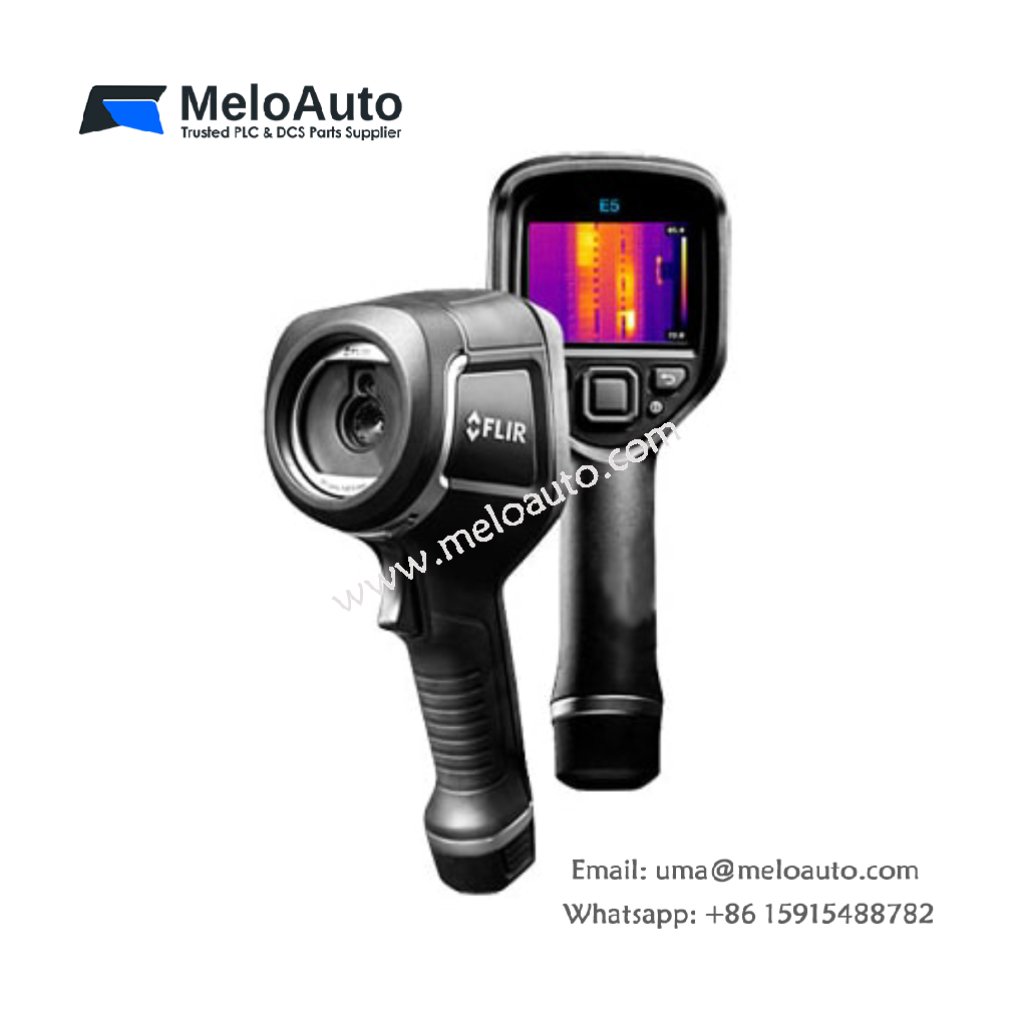

The FLIR E5-XT is a compact infrared thermal camera designed for industrial inspections.
It features 160 × 120 IR resolution and <0.10°C thermal sensitivity, delivering precise temperature readings.
The camera supports -20°C to 400°C measurement range and multiple image modes including MSX, Picture-in-Picture, and Thermal Blending.
A 3” color LCD, Wi-Fi connectivity, and USB data transfer simplify image analysis and reporting.
Lightweight (0.575 kg) and durable, it withstands 2 m drops and operates in -15°C to 50°C environments.
Rechargeable battery provides up to 4 hours of operation for continuous field use.

FLIR E5-XT Technical Specifications

Image and Optical Data

• IR resolution: 160 × 120 (19,200 pixels)
• Thermal sensitivity / NETD: <0.10°C / <100 mK
• Spatial resolution (IFOV): 5.2 mrad
• Field of view (FOV): 45° × 34°
• F-number: 1.5
• Image frequency: 9 Hz
• Lens: Focus-free

Detector Data

• Detector type: Focal Plane Array (FPA), uncooled microbolometer
• Spectral range: 7.5–13 µm

Image Presentation and Modes

• Display: 3” 320 × 240 color LCD
• Image adjustment: Automatic adjust / lock image
• Image modes: Thermal, MSX, Picture-in-Picture, Thermal Blending, Digital Camera
• Color palettes: Iron, Rainbow, Black & White

Measurement and Analysis

• Object temperature range: -20°C to 400°C (-4°F to 752°F)
• Accuracy: ±2°C or ±2% of reading (ambient 10–35°C, object >0°C)
• Spotmeter: Center spot
• Area measurement: Box with max/min values
• Isotherms: Above / below alarm

Data Communication and Interfaces

• Interfaces: USB Micro for PC/Mac
• Wi-Fi: Peer-to-peer or infrastructure mode
• File format: Standard JPEG with 14-bit measurement data

General Specifications

• Operating temperature: -15°C to 50°C
• Battery: Rechargeable 3.6 V Li-ion, approx. 4 hours runtime
• Battery charging time: 2.5 hours in camera, 2 hours in charger
• Drop resistance: 2 m (6.6 ft.)
• Weight: 0.575 kg (1.27 lb)
• Size (L × W × H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Box Contents

Includes infrared camera, hard transport case, battery, USB cable, power supply/charger (EU, UK, US, AU plugs), and printed documentation.
