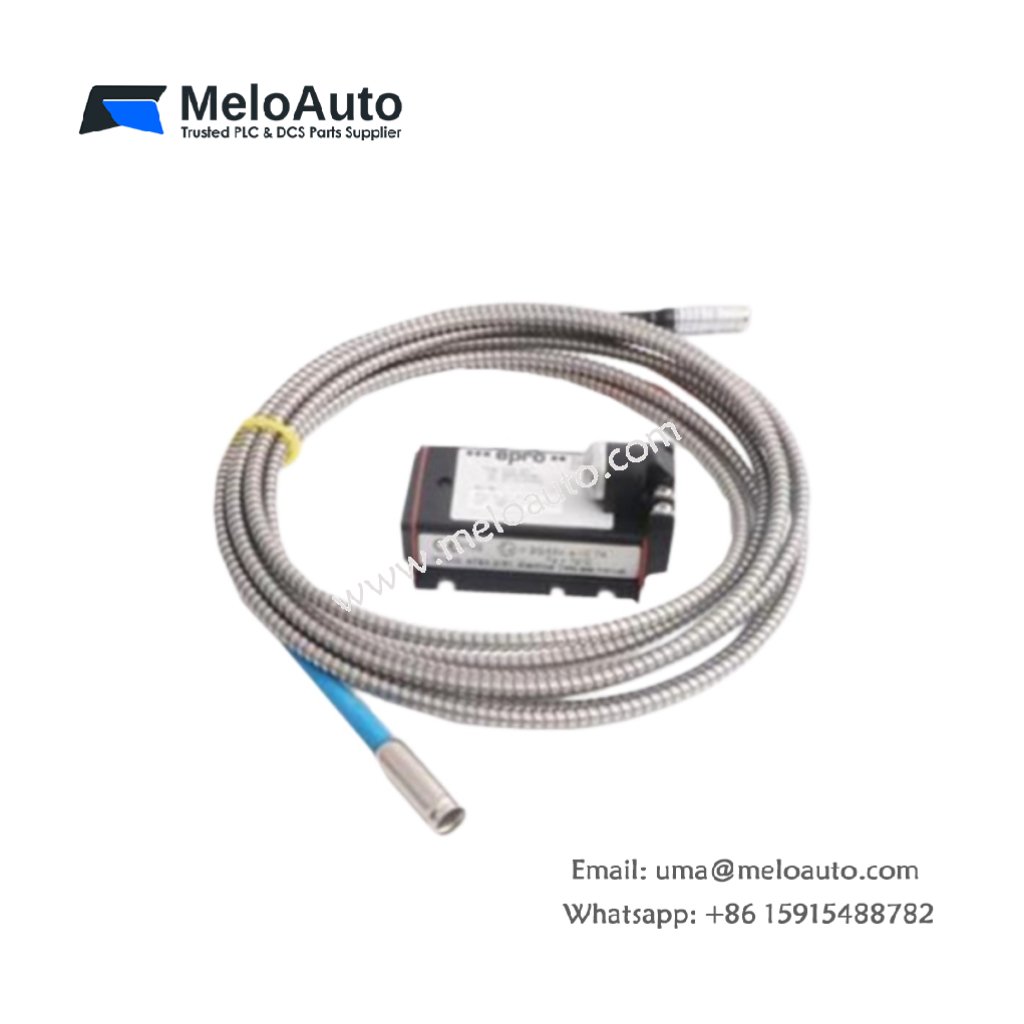

EPRO PR6424/010-040 16mm Eddy Current Sensor

This eddy current sensor measures shaft vibration and position in large turbomachinery. You will find the EPRO PR6424/010-040 16mm Eddy Current Sensor providing reliable data for turbine protection systems. Its larger tip diameter offers extended linear range for heavy-duty applications.

Technical Specifications

This sensor contains one sealed coil assembly within a stainless steel housing. You can also locate a 5-meter connecting cable with integral connector. The EPRO PR6424/010-040 16mm Eddy Current Sensor stores no battery energy for operational purposes. Instead, it draws power directly from the compatible A6000 monitor. Therefore, this sensor never requires any battery replacement whatsoever.

Parameter	Specification
Full Product Name	EPRO PR6424/010-040 16mm Eddy Current Sensor
Series	PR6424
Product Type	Eddy Current Displacement Sensor
Weight	0.35 kg
Tip Diameter	16 mm
Housing Diameter	28 mm
Total Length	120 mm
Thread Size	M18 x 1.5
Linear Range	0.5 – 4.5 mm
Sensitivity	4 V/mm typical
Cable Length	5 meters
Cable Type	Coaxial with connector
Temperature Range	-35°C to +180°C
Energy Storage	None (passive sensor)

Measurement Details

The EPRO PR6424/010-040 16mm Eddy Current Sensor operates without contact to the rotating shaft surface. You can mount this sensor facing the target material for gap measurement. The larger 16mm tip provides a linear range of 4 millimeters from end. Moreover, the sensor works with all standard A6000 series monitors from EPRO. This design allows precise measurement of vibration, position, and eccentricity.

Mechanical Integration and Mounting

You must mount the EPRO PR6424/010-040 16mm Eddy Current Sensor using the M18 thread into a drilled hole. After positioning, secure the sensor using the locknut provided with the unit. The sensor measures exactly 120 millimeters in total length and 28 millimeters in diameter. Its total weight reaches approximately 0.35 kilograms for straightforward handling. Furthermore, the 5-meter cable connects directly to PR6424 compatible monitors.

Environmental and Storage Guidelines

You should store this EPRO PR6424/010-040 16mm Eddy Current Sensor in a clean dry location away from impact. The sensor operates reliably between -35°C and +180°C ambient temperature. Likewise, keep the sensor tip away from magnetic debris or conductive coatings. Because the sensor contains no moving parts, it requires zero regular maintenance over its service life.
