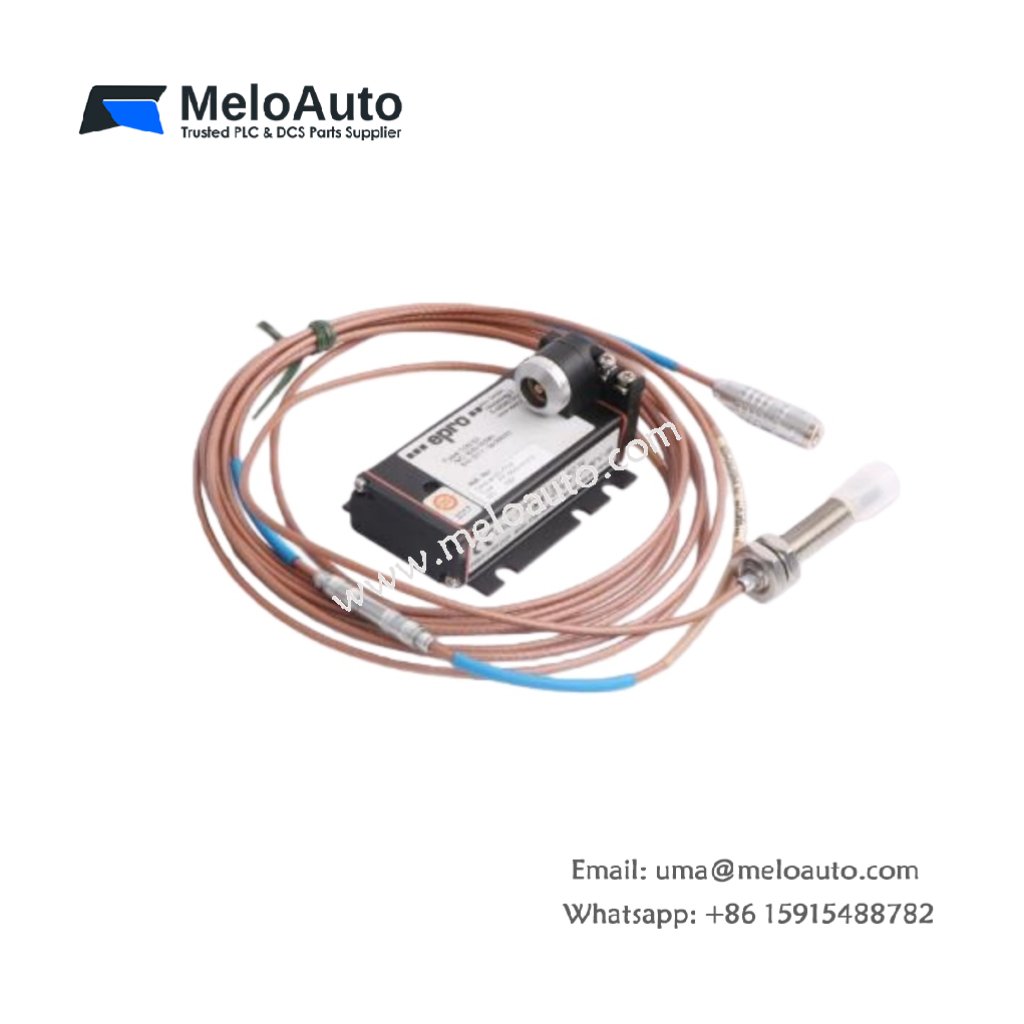

EPRO PR6424/006-130 – High-Precision Eddy Current Sensor for Displacement and Vibration Measurement

The EPRO PR6424/006-130 is a high-performance eddy current sensor specifically designed for the precise measurement of mechanical parameters such as displacement and vibration. It works based on a non-contact measurement principle, making it suitable for various industrial applications. This sensor excels in monitoring turbomachinery and assessing both dynamic and static displacements, ensuring reliable and accurate measurements.

Key Features:

• Non-Contact Measurement: The sensor performs displacement and vibration measurements without any physical contact. This feature ensures no wear or damage to either the sensor or the measured components.
• High Versatility: Whether you are measuring radial or axial displacement, vibration, or shaft eccentricity, the EPRO PR6424/006-130 adapts to various industrial environments.
• Compact Yet Durable: Despite its compact size, the sensor provides robust performance even in harsh conditions. Its rugged design makes it ideal for tough industrial applications.
• Pre-Configured for Easy Use: The sensor is factory-adjusted and calibrated with its signal converter, eliminating the need for on-site calibration. The only requirement is to adjust the gap for accurate readings.

Applications:

The EPRO PR6424/006-130 is suitable for many critical applications:

• Turbomachinery Monitoring: It measures clearances between rotating and stator parts, detects dynamic shaft displacement, and monitors other critical parameters.
• Vibration Monitoring: By accurately measuring vibrations in rotating machinery, it helps identify issues before they lead to failures.
• Condition Monitoring: It can detect wear, eccentricity, and bending in rotating and stator parts, enabling proactive maintenance.
• Oil Film Thickness and Bearing Wear: It monitors oil film thickness and thrust bearing wear to improve operational reliability.
• Process Monitoring: The sensor measures differential expansions, valve positions, and housing expansions to ensure optimal machine performance.

How It Works:

The EPRO PR6424/006-130 sensor pairs with a signal converter (CON) to create an oscillator circuit. As a metallic object moves closer to the sensor, the amplitude of oscillation decreases. This damping correlates with the distance between the sensor and the object, allowing precise measurements. The sensor is pre-calibrated, so you only need to adjust the gap between the sensor and the object to achieve the specified output signal.

Technical Specifications:

Key Benefits:

• Precision and Reliability: The EPRO PR6424/006-130 offers precise and consistent measurements, ensuring you monitor your machinery accurately.
• Non-Contact Design: With its non-contact nature, this sensor eliminates wear and tear while providing high-quality data.
• Easy Setup: The sensor arrives factory-calibrated, simplifying installation. Just adjust the gap, and the sensor will provide accurate output.
• Wide Application Range: From aerospace to oil and gas industries, this sensor supports various sectors where precise displacement and vibration monitoring is crucial.
• Rugged and Reliable: Built to withstand harsh conditions, this sensor performs reliably even in the most demanding environments.
