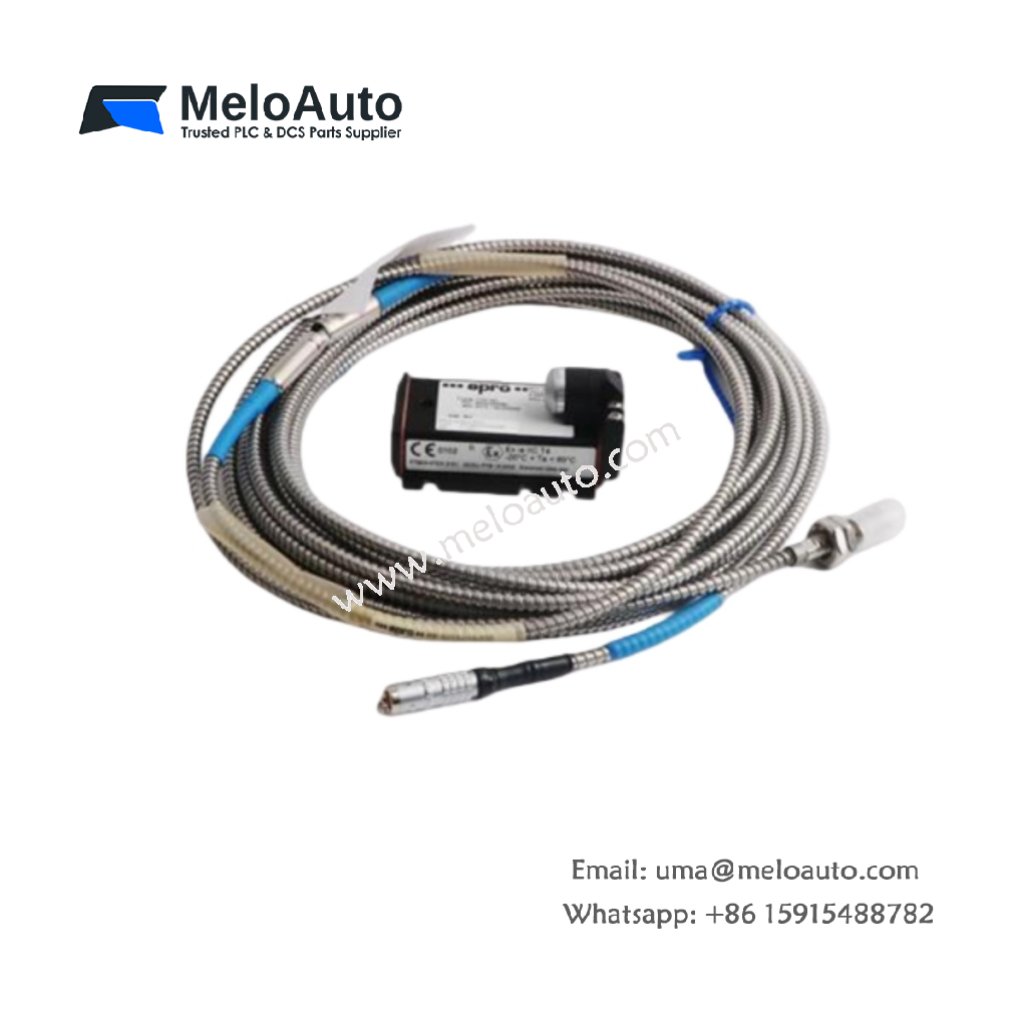

EPRO PR6423/231-110 Eddy Current Transducer

Overview

The EPRO PR6423/231-110 is a highly precise eddy current transducer system, designed to measure key mechanical parameters such as displacements and vibrations. Its versatility makes it suitable for a wide range of applications across industries and laboratories. Thanks to its compact design, contactless measurement capability, and robust construction, the EPRO PR6423/231-110 excels in demanding environments, making it ideal for use in various turbomachines.

Key Features

Contactless Measurement: The system utilizes the eddy current principle, ensuring non-contact and reliable measurements.
Durability: Designed to operate efficiently in aggressive and harsh industrial environments.
Compact and Rugged: The compact size, combined with a rugged design, allows easy integration into different systems.
Versatile Application: Suitable for monitoring parameters in turbomachinery, such as turbines, compressors, and pumps.

Measurement Parameters

The EPRO PR6423/231-110 is capable of accurately measuring a variety of mechanical parameters, including:

Clearances: Measures the gap between rotating and stator parts
Vibration: Monitors vibration in rotating and other machine components
Dynamic Motion and Eccentricity: Tracks dynamic motion and eccentricity of shafts
Deformation or Bending: Detects deformation or bending of rotating or stator parts
Axial and Radial Shaft Movements: Monitors axial and radial movements of shafts
Thrust Bearing Wear: Detects thrust bearing positions and wear
Oil Film Thickness: Measures the thickness of the oil film between parts
Differential Expansions: Monitors differential expansions
Housing Expansions and Valve Positions: Measures housing expansions and valve positions

Operating Principle

The EPRO PR6423/231-110 uses an eddy current transducer paired with a signal converter to form an oscillator circuit. The amplitude of oscillation is affected by the proximity of a metallic object in front of the transducer. This damping effect is proportional to the distance between the transducer face and the object being measured.

The system is delivered fully adjusted, so no onsite calibration is required. The only adjustment needed is to set the gap between the transducer and the object to achieve the desired signal at the converter’s output.

Technical Specifications

Specification	Value
Measurement Principle	Eddy current
Output Type	Analog or Digital
Measurement Range	Dependent on application
Signal Converter	Integrated within the system
Gap Adjustment	Adjustable gap for signal calibration
Applications	Turbomachinery, pumps, compressors, turbines
Environmental Resistance	High, suitable for aggressive environments

Applications

The EPRO PR6423/231-110 is particularly effective in monitoring the performance of critical machinery components in various industrial systems:

Turbomachinery: Ideal for use in turbines, compressors, and pumps, providing critical data on vibration, shaft movement, and more.
Industrial Equipment: Effective in monitoring rotating machinery, where precise measurements of displacement and vibration are crucial.
Laboratories: Excellent for research environments requiring high-accuracy mechanical measurements.

Installation and Maintenance

The EPRO PR6423/231-110 is easy to install and maintain, offering seamless integration into existing systems. With minimal calibration required, it ensures reliable, long-term performance with little maintenance effort.

Conclusion

The EPRO PR6423/231-110 eddy current transducer system provides high-accuracy, non-contact measurement capabilities. Its compact design, rugged construction, and versatility make it an ideal solution for monitoring various mechanical parameters in turbomachinery and industrial applications.
