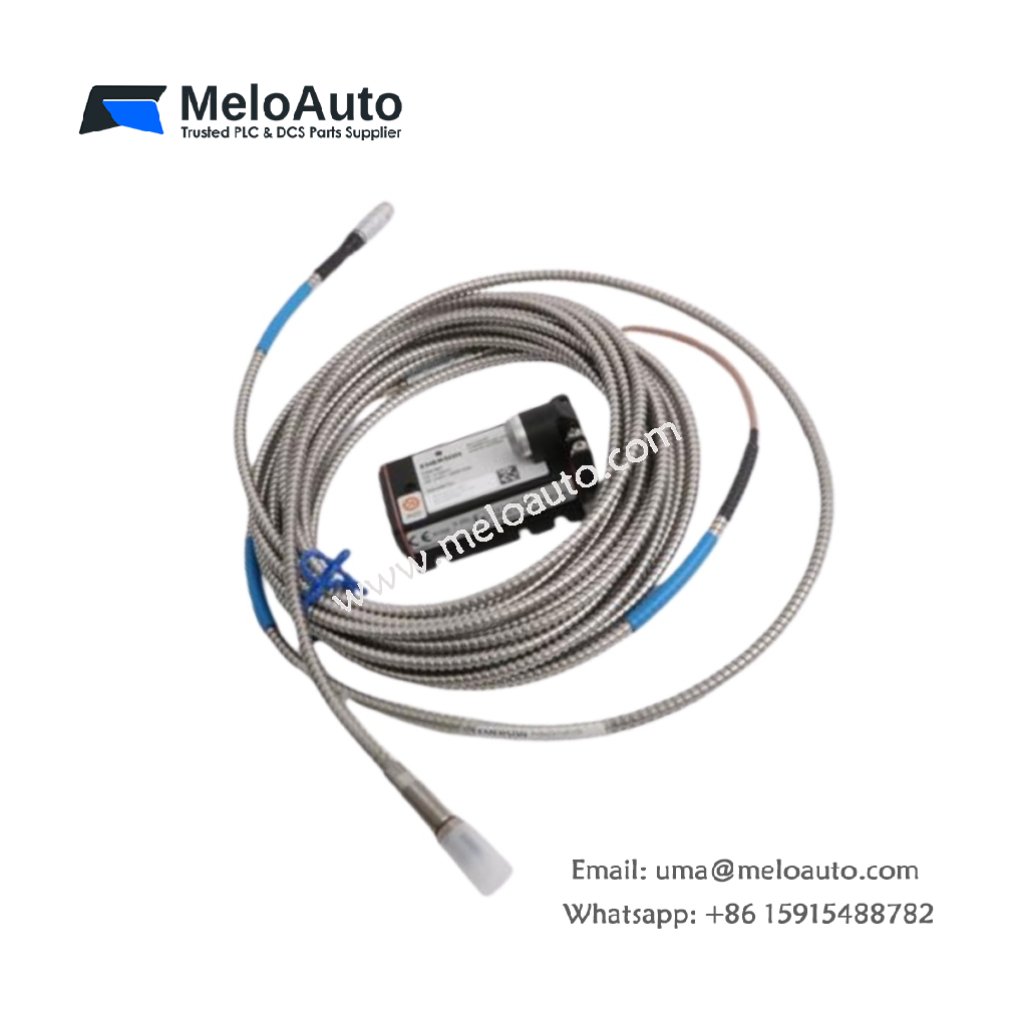

EPRO PR6423/165-110 Eddy Current Transducer

Overview

The EPRO PR6423/165-110 is a high-performance eddy current transducer designed to measure mechanical parameters such as displacement and vibration. This transducer is ideal for use in turbomachinery, including steam, gas, and hydro turbines, compressors, pumps, and fans. Its contactless measurement technology, small form factor, and rugged design make it suitable for demanding environments. With EPRO‘s advanced technology, the PR6423/165-110 ensures reliable performance in critical industrial applications.

Key Applications

The EPRO PR6423/165-110 is widely used in monitoring and measuring various parameters in turbo machinery. Key applications include:

Clearances between rotating and stator parts
Vibration of rotating and stationary components
Dynamic motion and eccentricity of shafts
Deformation or bending of rotating or stator parts
Axial and radial shaft movements
Thrust bearing positions and wear
Oil film thickness monitoring
Differential expansions and housing expansions
Valve positions and other machine health indicators

The ability to measure these critical parameters helps in the early detection of issues, reducing downtime and maintenance costs in industrial machinery.

How It Works

The EPRO PR6423/165-110 operates based on the principle of eddy current measurement. It generates an oscillator circuit that interacts with metallic objects. The proximity of a metallic object dampens the oscillation amplitude, providing accurate distance measurements. The distance between the sensor and the object directly affects the signal, which allows precise measurements of displacement and vibration.

Additionally, the EPRO PR6423/165-110 system includes a signal converter (CON) that works in conjunction with the sensor. The system comes fully calibrated, eliminating the need for on-site calibration. Users only need to adjust the gap between the sensor and the object to achieve the desired signal output.

Key Features

Contactless Measurement: Reduces wear and tear on the sensor, ensuring longer service life and lower maintenance.
High Sensitivity: Measures even small displacements with a sensitivity of 2 V/mm (50.8 mV/mil).
Robust Construction: Designed to withstand harsh industrial environments, providing reliable performance in critical applications.
Pre-Calibrated System: Arrives fully calibrated, simplifying installation and operation.
Wide Operating Temperature Range: The sensor operates effectively in temperatures from -35°C to +180°C (-31°F to +356°F).

Technical Specifications

Parameter	Value
Model	EPRO PR6423/165-110
Measurement Principle	Eddy Current
Measurement Range	± 4.0 mm (0.157”)
Shaft Diameter	≥ 200 mm (7.87”)
Operating Temperature Range	-35°C to +180°C (-31°F to +356°F)
Weight	1 kg (2.2 lbs)
Dimensions	20 cm x 20 cm x 15 cm (7.87” x 7.87” x 5.91”)
Protection Class	IP65
Signal Converter	Yes, includes CON signal converter
Sensitivity	2 V/mm (50.8 mV/mil) ± 1.5% max
Vibration Resistance	5g @ 60 Hz at 25°C (77°F)
Pre-Calibrated	Yes

System Description

The EPRO PR6423/165-110 is part of an advanced eddy current system that provides real-time, high-precision measurements of mechanical parameters. It works in combination with a signal converter (CON) to measure displacement and vibration. The sensor’s oscillation is dampened as it detects the proximity of a metallic object, providing an accurate measurement of the object’s distance.

With the EPRO PR6423/165-110, there is no need for complex on-site calibration. The system arrives fully adjusted, ensuring immediate usability. You only need to fine-tune the sensor gap for optimal signal output.

Why Choose the EPRO PR6423/165-110?

By selecting the EPRO PR6423/165-110, you benefit from a highly accurate and reliable sensor that can withstand even the harshest industrial environments. Its contactless measurement technology reduces wear, extending the sensor’s life and reducing maintenance costs. Furthermore, the sensor’s robust construction, wide operating temperature range, and ease of installation make it an excellent choice for monitoring turbomachinery in demanding industrial settings.

Conclusion

The EPRO PR6423/165-110 is a state-of-the-art eddy current sensor that delivers precise measurements for a wide range of mechanical parameters. It excels in harsh industrial environments and is ideal for use in turbomachinery applications. With its high sensitivity, rugged design, and ease of use, this sensor is a trusted solution for accurate machine health monitoring.
