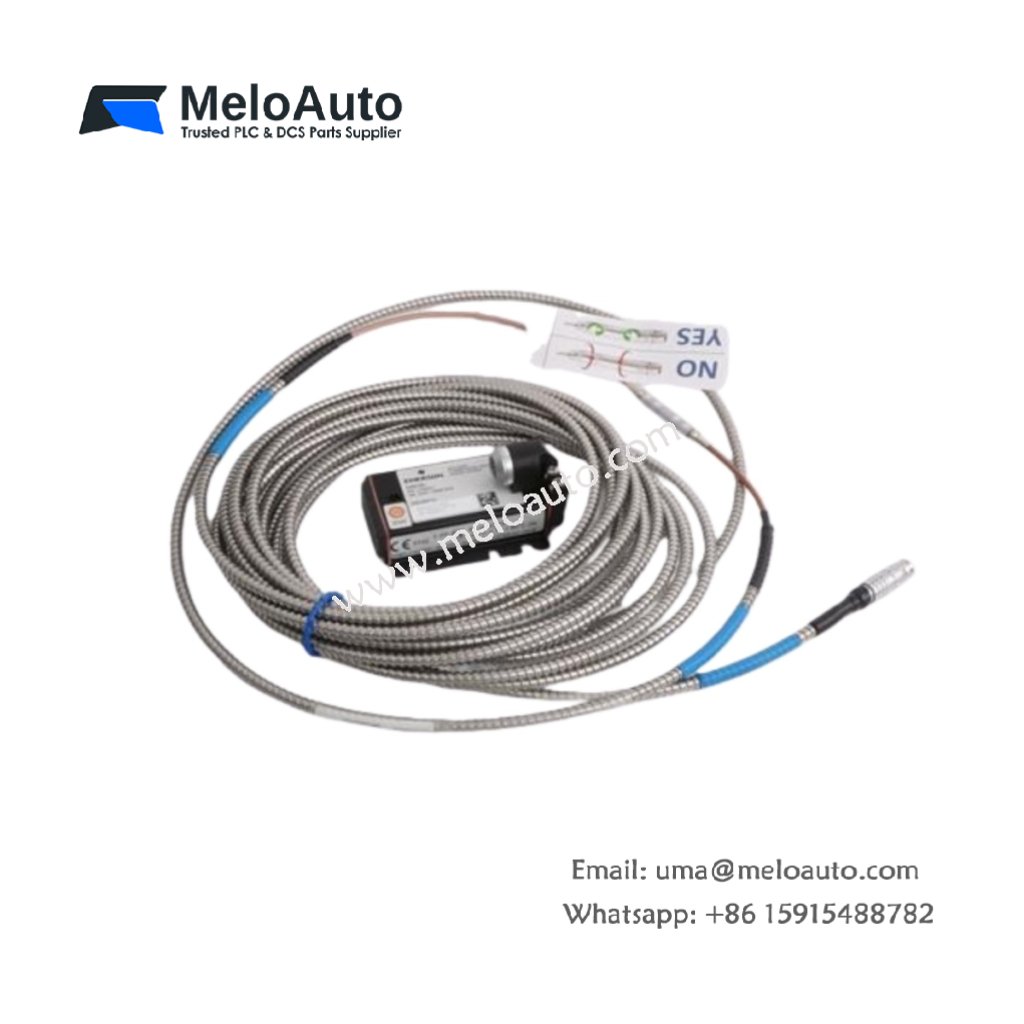

EPRO PR6423/119-110 Eddy Current Transducer

Overview

The EPRO PR6423/119-110 is a highly accurate and durable eddy current transducer. It is specifically designed to measure mechanical parameters like displacement and vibration, ideal for critical turbomachinery applications. This sensor operates on a contactless measurement principle, offering high precision in demanding environments. Its compact size, rugged design, and resistance to harsh conditions make it a reliable choice for applications in steam, gas, and hydro turbines, as well as compressors, pumps, and fans.

With EPRO’s commitment to performance, the PR6423/119-110 excels in delivering real-time measurements of rotating machinery, ensuring timely detection of mechanical issues like misalignment, eccentricity, and vibration.

Applications

The EPRO PR6423/119-110 is suitable for various industrial and laboratory applications, particularly in monitoring turbomachines. The sensor measures critical parameters, such as:

• Clearances between rotating and stator parts
• Vibration of rotating and other critical components
• Dynamic motion and eccentricity of shafts
• Deformation or bending of rotating or stator parts
• Axial and radial shaft movements
• Thrust bearing positions and wear
• Oil film thickness monitoring
• Differential expansions and housing expansions
• Valve positions

By integrating the PR6423/119-110 into your system, you ensure continuous monitoring of machine health and performance, ultimately preventing unexpected downtime.

How It Works

The EPRO PR6423/119-110 forms an oscillator circuit when used with the signal converter (CON). As a metallic object moves closer to the sensor, the amplitude of oscillation decreases. This dampening effect directly correlates to the distance between the sensor and the object, allowing precise measurement of displacement.

Thanks to the contactless design, this sensor maintains high accuracy without direct contact with the target, reducing mechanical wear and tear. Moreover, the system arrives fully calibrated, so no on-site adjustments are required except for setting the gap between the sensor and the target object.

Key Features

• Contactless Measurement: The sensor uses eddy current technology, ensuring no physical contact with the target material, which prevents wear.
• High Sensitivity: Offers accurate measurements of small displacements, with a sensitivity of 2 V/mm (50.8 mV/mil).
• Durability: Designed to withstand harsh industrial environments with protection rated at IP65.
• Pre-Calibrated System: The sensor and signal converter arrive fully calibrated, eliminating the need for further setup.
• Wide Temperature Range: Operates effectively within a wide temperature range of -35°C to +180°C (-31°F to +356°F).

Technical Specifications

System Description

The EPRO PR6423/119-110 is designed for precise monitoring of machinery parameters. It works together with a signal converter to form an oscillator circuit. The sensor’s amplitude of oscillation decreases when a metallic object gets closer, allowing the sensor to calculate the exact distance. This provides accurate displacement measurements without any mechanical contact.

The system requires minimal maintenance and setup, with only the gap between the sensor and the object needing adjustment to achieve optimal signal output. This ease of use, combined with the sensor’s rugged construction, makes the EPRO PR6423/119-110 a go-to solution for machine health monitoring.

Why Choose the EPRO PR6423/119-110?

By selecting the EPRO PR6423/119-110, you gain a precise, durable, and low-maintenance solution for monitoring your turbomachinery. This sensor ensures that parameters such as vibration, displacement, and shaft eccentricity are measured with high accuracy. Furthermore, the system is designed to be easy to integrate, making it ideal for applications in industrial environments where reliability is key.

Conclusion

In conclusion, the EPRO PR6423/119-110 is an advanced, non-contact eddy current sensor that offers accurate measurements of mechanical parameters in industrial machinery. Its contactless design, coupled with its high sensitivity and pre-calibrated system, ensures efficient and effective monitoring. By integrating this sensor into your systems, you improve both the longevity and performance of your machinery.
