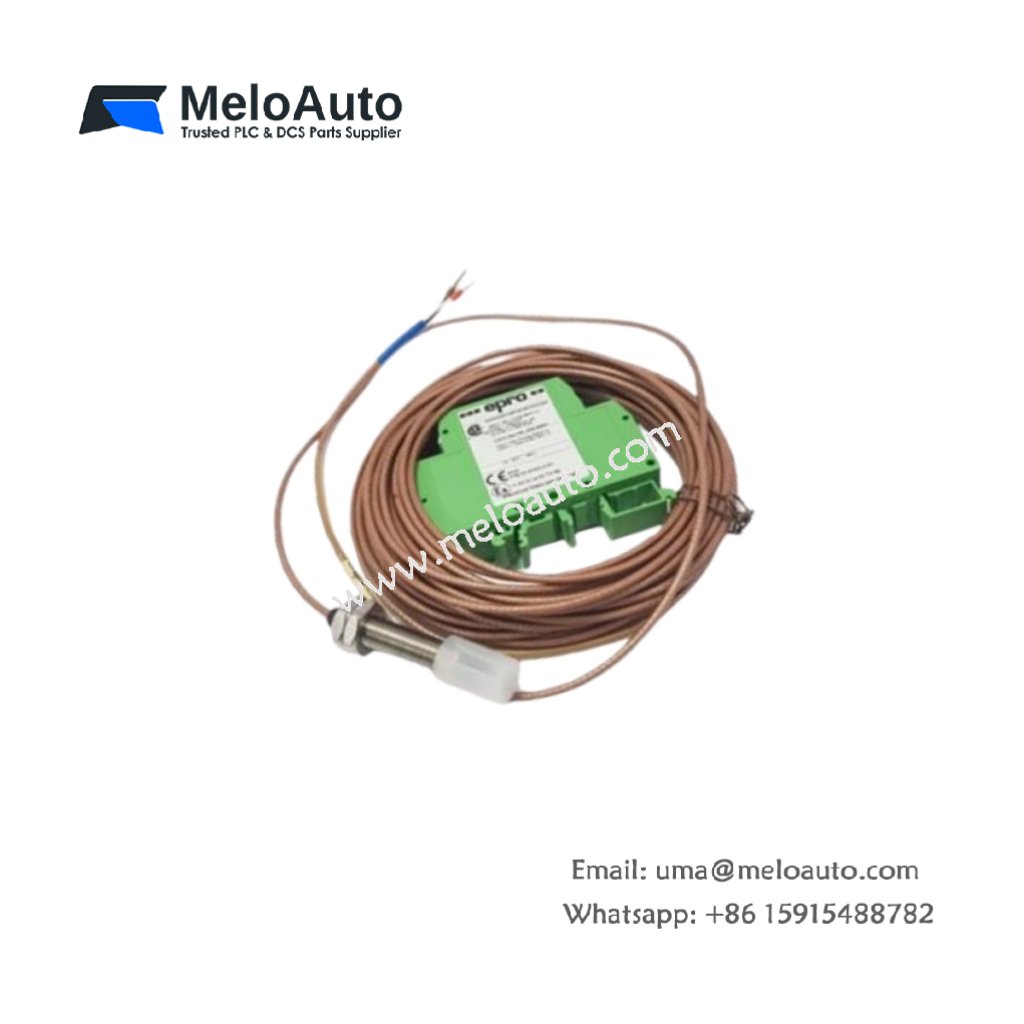

EPRO PR6423/061-110 Eddy Current Transducer System

Overview

The EPRO PR6423/061-110 eddy current transducer system accurately measures mechanical parameters such as displacements and vibrations in industrial applications. This system utilizes a contactless measurement principle, making it ideal for use in challenging environments like turbo machines. The EPRO PR6423/061-110 delivers high performance in demanding conditions, proving essential in industries like power generation, manufacturing, and laboratory testing.

Key Features and Applications

The EPRO PR6423/061-110 excels in various industrial applications, particularly for monitoring critical parameters in rotating machinery. These include:

• Clearances between rotating and stationary parts
• Vibrations of rotating and static machine components
• Dynamic motion and eccentricity of shafts
• Deformation or bending of rotating or stationary parts
• Axial and radial shaft movements
• Thrust bearing positions and wear detection
• Oil film thickness measurement
• Differential expansions between components
• Housing expansions, valve positions, and more

With its versatile design, the EPRO PR6423/061-110 ensures reliable and accurate monitoring of critical parameters. This functionality is key to maintaining optimal performance in turbomachinery.

Working Principle

The EPRO PR6423/061-110 works in conjunction with a signal converter to form an oscillator circuit. When a metallic object approaches the transducer, it dampens the amplitude of oscillation. The amount of damping directly corresponds to the distance between the transducer and the object. This precise system provides accurate detection and monitoring of mechanical parameters.

Benefits

• Contactless measurement: It delivers precise readings without physical contact, extending the life of components and reducing maintenance needs.
• Compact and rugged design: The EPRO PR6423/061-110 is engineered to endure harsh environments, offering long-term reliability.
• No on-site calibration required: The system arrives pre-calibrated. Users only need to adjust the gap between the transducer and the object for optimal performance.
• Versatility: It supports a wide range of applications, from measuring displacement and vibration to monitoring shaft dynamics.

Technical Specifications

Conclusion

The EPRO PR6423/061-110 eddy current transducer system offers a comprehensive solution for measuring displacements, vibrations, and other critical parameters in rotating machinery. Thanks to its compact, rugged design and high-precision contactless measurement, the system plays a vital role in industrial operations. It helps minimize maintenance costs while ensuring reliable performance.
