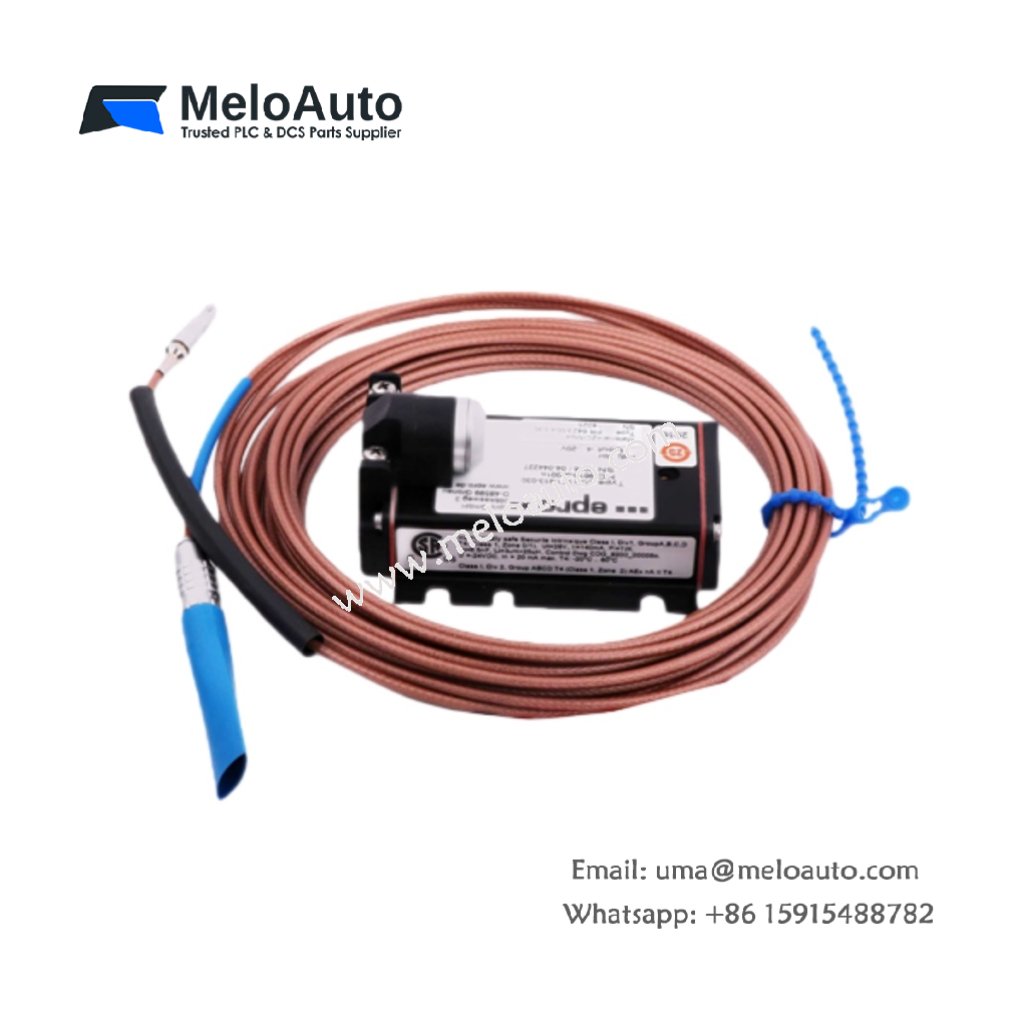

EPRO PR6423/015-010 8mm Eddy Current Sensor

Overview

The EPRO PR6423/015-010 is an advanced eddy current sensor designed for precise measurement in critical turbomachinery applications. It measures radial and axial shaft dynamic displacement, as well as position, eccentricity, and speed in various machinery, including steam turbines, gas turbines, compressors, gearboxes, pumps, and fans. With a non-contact measurement principle, this sensor ensures high accuracy, long-lasting performance, and minimal maintenance.

Key Features

Non-Contact Measurement: This sensor uses the eddy current principle, allowing it to detect movement without physical contact, reducing wear and tear.
Precise Displacement and Eccentricity Measurement: The EPRO PR6423/015-010 measures both radial and axial shaft displacement, providing detailed insights into shaft movement.
Versatile Applications: Ideal for use in turbomachinery, the sensor measures a wide range of mechanical parameters, including eccentricity, position, and speed.
Robust and Durable Design: The IP66 rated enclosure and materials, such as stainless steel and PTFE, ensure the sensor performs reliably in harsh industrial environments.
Factory-Set Calibration: The sensor is factory-calibrated, so users only need to adjust the air gap for optimal measurement without requiring complex on-site calibration.

Technical Specifications

Specification	Details
Model	EPRO PR6423/015-010
Measurement Principle	Eddy Current (Non-Contact)
Measurement Range	Radial and Axial Shaft Dynamic Displacement
Linear Measurement Range	2 mm (80 mils)
Initial Air Gap	0.5 mm (20 mils)
Incremental Scale Factor (ISF)	ISO: 8 V/mm (203.2 mV/mil) ± 5% @ 0°C to 45°C (32°F to 113°F)
Deviation from Best Fit Line (DSL)	± 0.025 mm (± 1 mil)
Minimum Shaft Diameter	25 mm (0.79″)
Target Material	Ferromagnetic Steel (42CrMo4, AISI/SAE 4140)
Protection Class	IP66, IEC 60529
Operating Temperature Range	Sensor: -35°C to 180°C (-31°F to 356°F) Cable & Connector: -35°C to 150°C (-31°F to 302°F)
Material	Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE
Weight (Sensor + 1m Cable)	Approx. 100 grams (3.53 oz)

Detailed Description

The EPRO PR6423/015-010 eddy current sensor is engineered to provide accurate, non-contact measurements in demanding turbomachinery applications. Its compact size and rugged design make it ideal for environments subject to vibration, high temperatures, and other challenging conditions. This sensor measures dynamic displacement and eccentricity of shafts in real-time, ensuring continuous monitoring of critical machinery components.

With an IP66 protection rating, the EPRO PR6423/015-010 is resistant to dust, water, and harsh environmental factors, ensuring reliable operation in tough industrial conditions. The sensor is made from durable materials like PEEK for the sensor tip and stainless steel for the housing, while the cable is made from PTFE, ensuring long-term performance even in high-temperature environments.

This sensor comes fully calibrated from the factory, so no additional calibration is needed on-site. You only need to adjust the air gap to ensure optimal sensor performance. It’s suitable for various applications, such as measuring clearances, vibration levels, shaft movements, and more, contributing to the smooth operation of machinery and preventing costly downtimes.

Applications

Turbomachinery: Perfect for measuring displacement and eccentricity in steam turbines, gas turbines, compressors, gearboxes, pumps, and fans.
Clearance Measurement: Monitors the distance between rotating and stationary parts in machines.
Shaft Monitoring: Tracks both radial and axial shaft movements, providing accurate displacement data.
Vibration and Eccentricity: Measures the vibration and eccentricity of rotating parts, ensuring smooth and efficient operation.
