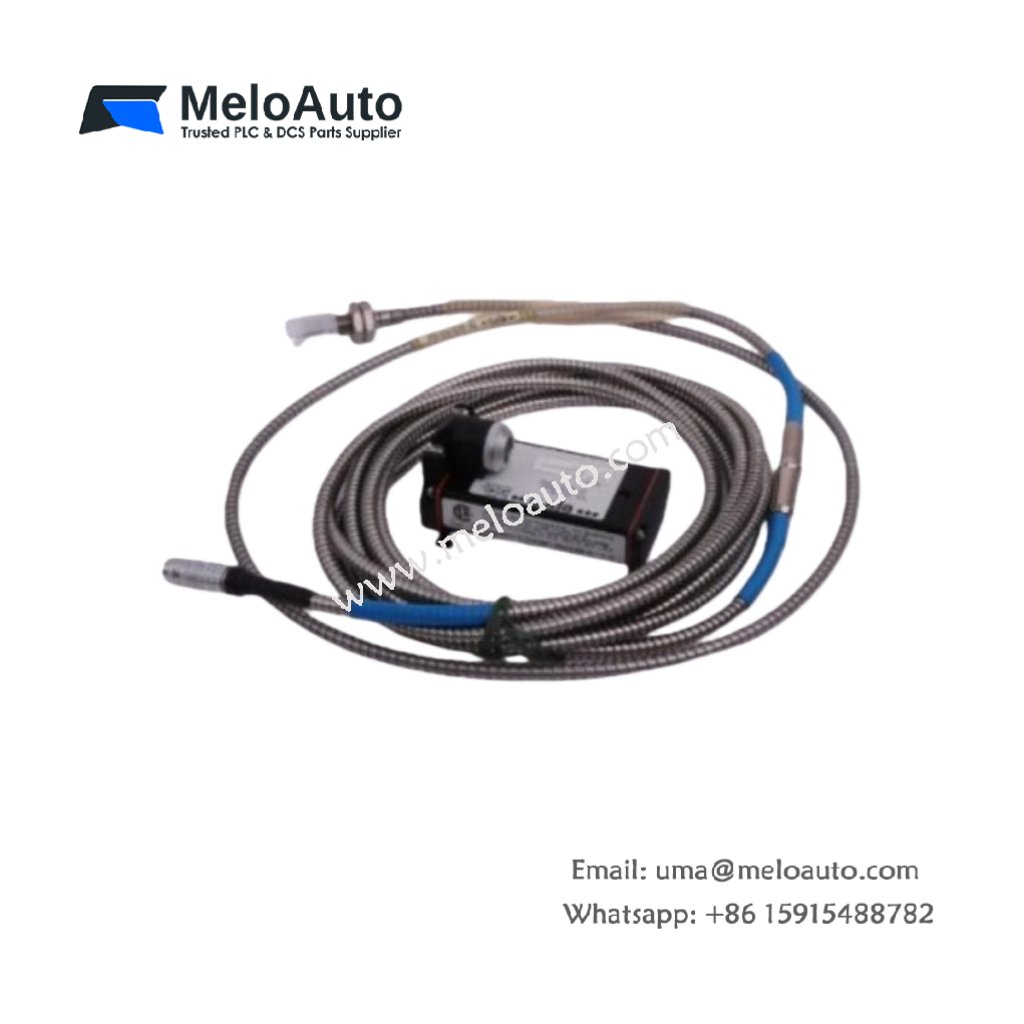

EPRO PR6423/010-010+CON021 Eddy Current Displacement Transducer

Overview

The EPRO PR6423/010-010+CON021 is an advanced, non-contact eddy current displacement transducer designed by Emerson Electric Co. for precise measurement in critical turbomachinery applications. This sensor is particularly effective in environments where reliability and accuracy are paramount, such as in steam turbines, gas turbines, compressors, pumps, and fans. The non-contact nature of the transducer allows for accurate measurement of radial and axial shaft displacement, position, eccentricity, and speed without any wear or tear on the device. This functionality enhances equipment lifespan, reduces maintenance needs, and ensures the smooth operation of machinery even under harsh operating conditions.

By offering continuous monitoring of critical parameters, the EPRO PR6423/010-010+CON021 helps optimize performance, improve safety, and minimize costly downtime in industrial environments. The sensor’s ability to measure both static and dynamic displacement with high sensitivity ensures that even small changes in the machinery’s performance can be detected early, enabling timely maintenance actions to avoid failures.

Key Features

• Non-contact Measurement: Provides wear-free operation, extending the sensor’s lifespan and ensuring high accuracy.
• Versatile Applications: Ideal for turbomachinery such as steam turbines, gas turbines, compressors, and pumps.
• High Sensitivity: With a sensitivity of 8 V/mm, it detects even the smallest displacement changes, ensuring precision monitoring.
• Wide Operating Temperature Range: Operates effectively from -35°C to +180°C (-31°F to +356°F), making it suitable for a wide range of industrial environments.
• Protection Class: Rated IP66, providing dust and water resistance to protect the sensor in demanding conditions.

Technical Specifications

The EPRO PR6423/010-010+CON021 offers impressive technical capabilities to meet the rigorous demands of industrial applications. Below are the key specifications:

Product Origin

• Manufactured by: Emerson Electric Co., USA

Dimensions and Weight

• Sensor Dimensions: 8 mm in diameter
• Thread Type: M10x1 or 3/8-24UNF
• Weight: Approximately 100 grams (3.53 oz)
• Cable Length: 1 meter (3.28 ft)

Applications

The EPRO PR6423/010-010+CON021 is widely used in the power generation, oil & gas, and industrial processing industries. It provides high accuracy in monitoring turbine and compressor shafts, ensuring that any misalignment or abnormality is detected early. This enables proactive maintenance, improving overall system efficiency and reducing the risk of unexpected breakdowns. The PR6423/010-010+CON021 transducer is integral to predictive maintenance strategies, where its precise data helps optimize machinery performance.
