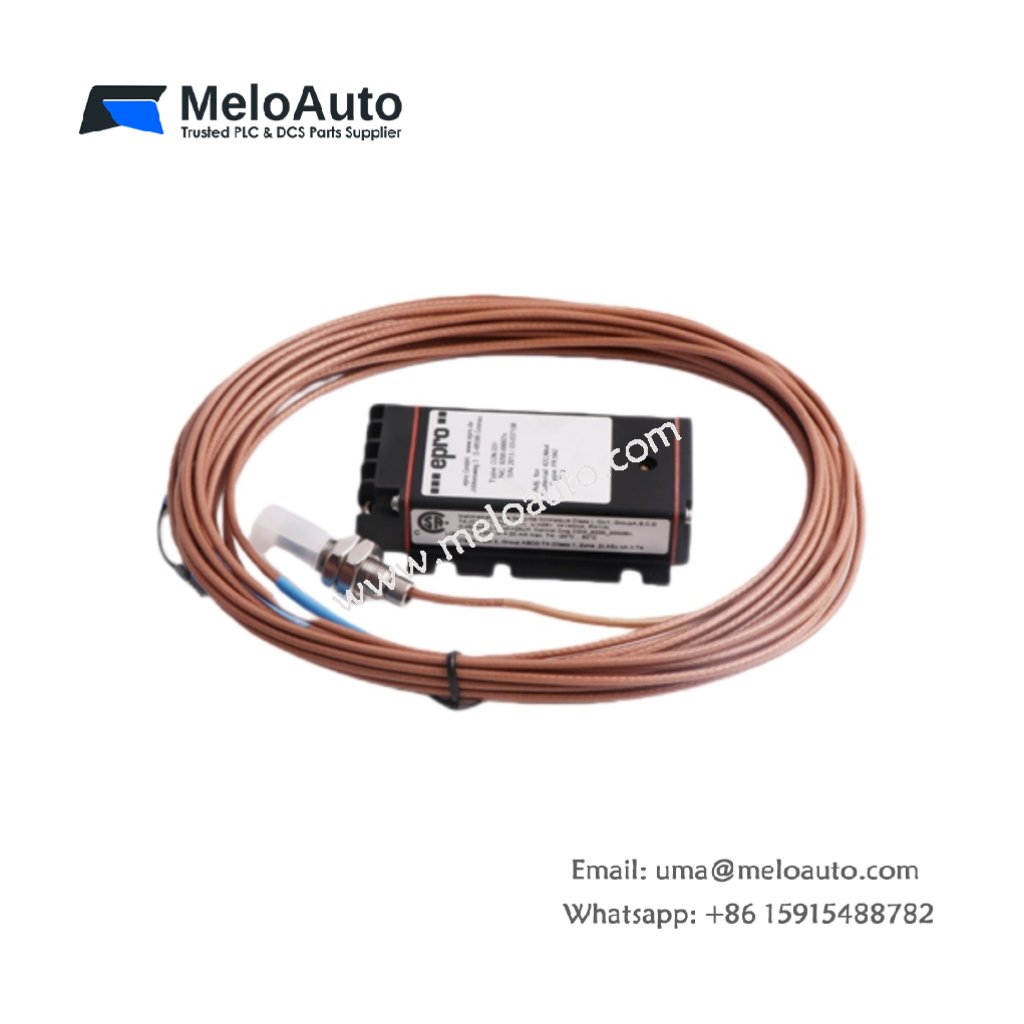

EPRO PR6423/00K-030+CON021 Linear Measurement Transducer

Overview

The EPRO PR6423/00K-030+CON021 linear measurement transducer ensures precise displacement and gap measurements for demanding applications. Its small size, rugged design, and non-contact measurement principle make it an ideal solution for industrial environments. Moreover, its robust construction withstands aggressive conditions, ensuring reliability over time.

Key Features

High Accuracy: The transducer provides a linear measurement range of 2 mm (80 mils), perfect for accurate displacement measurements.
Stable Performance: It offers an incremental scale factor of 8 V/mm (203.2 mV/mil), maintaining precision within a temperature range of 0 to 45°C (32 to 113°F).
Durable Build: The sensor tip is made from PEEK (Polyether Ether Ketone), while the case is stainless steel, guaranteeing long-lasting performance even in harsh environments.
Environmental Resistance: With an IP66 rating and an operating temperature range from -35°C to +200°C (-31°F to 392°F), this transducer excels in challenging conditions.

Technical Specifications

Specification	Value
Linear Measurement Range	2 mm (80 mils)
Initial Air Gap	0.5 mm (20 mils)
Incremental Scale Factor	8 V/mm (203.2 mV/mil) + 5% at 0 to 45°C (32 to 113°F)
Deviation from Best Fit Straight Line	+0.025 mm (+1 mil) at 0 to 45°C (32 to 113°F)
Minimum Shaft Diameter	25 mm (0.79”)
Target Material	Ferromagnetic steel (42CrMo4 / AISI 4140)
Protection Class	IP66 (IEC 60529)
Operating Temperature Range	Sensor: -35°C to +200°C (-31°F to 392°F)
	Cable & Connector: -35°C to +150°C (-31°F to 302°F)
Material	Sensor Tip: PEEK, Case: Stainless Steel
	Cable: PTFE, Connector: Brass (Nickel-Plated)
Weight (Sensor with 1m Cable)	Approx. 100 grams (3.53 oz)

Applications

The EPRO PR6423/00K-030+CON021 is highly effective for various industrial applications. You can use it in:

Turbomachinery: Monitor clearances, vibrations, and movements in turbines, compressors, and pumps.
Shaft Monitoring: Accurately measure shaft positions and deformations.
Industrial Equipment: It performs well in environments requiring high precision, such as heavy machinery and rotating components.

Installation and Maintenance

Installing the EPRO PR6423/00K-030+CON021 is straightforward. The rugged stainless steel housing and PTFE cable ensure its durability and reliability. Once installed, the system requires minimal maintenance and operates efficiently across a wide range of temperatures and environments.

Conclusion

The EPRO PR6423/00K-030+CON021 linear measurement transducer delivers precision and reliability in the most demanding conditions. It is a top choice for industries needing accurate displacement and gap measurements. Whether used in turbines or critical machinery, this device provides superior performance.
