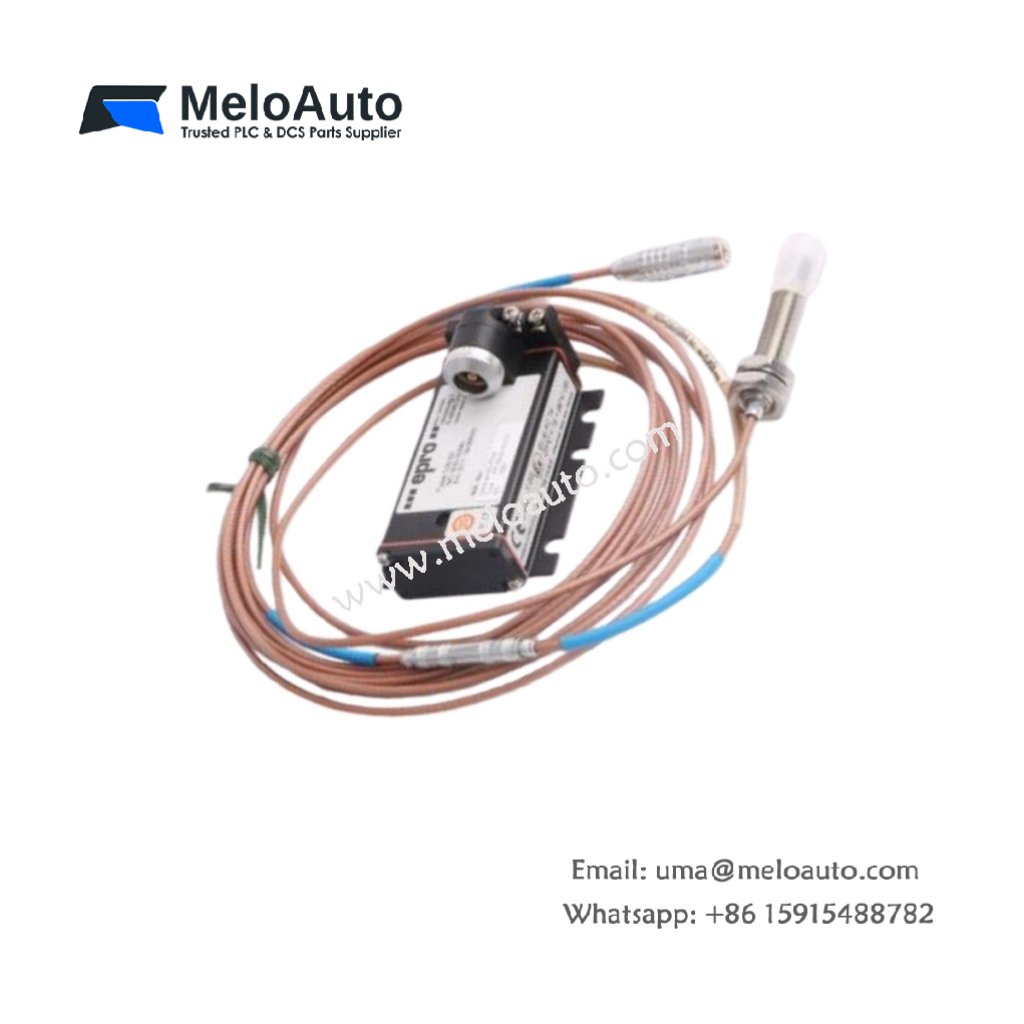

The EPRO PR6423/002-030 CON021 combines the functionality of both an eddy current sensor and a signal converter, ensuring seamless operation in a wide range of industrial monitoring applications.
Technical Specifications
| Specification |
Details |
| Linear Measurement Range |
±2 mm (±80 mils) |
| Initial Air Gap |
0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) |
8 V/mm (203.2 mV/mil) ± 5% @ 0°C to 45°C (32°F to 113°F) |
| Deviation from Best Fit Line (DSL) |
±0.025 mm (±1 mil) @ 0°C to 45°C (32°F to 113°F) |
| Minimum Shaft Diameter |
25 mm (0.79″) |
| Target Material |
Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140) |
| Other Materials |
Available on request |
Environmental Specifications
| Specification |
Details |
| Protection Class |
IP66, IEC 60529 |
| Operating Temperature Range |
Sensor: -35°C to +200°C (-31°F to 392°F) |
|
Cable & Connector: -35°C to +150°C (-31°F to 302°F) |
Material Specifications
| Component |
Material |
| Sensor Tip |
PEEK Polyether Ether Ketone |
| Case |
Stainless Steel |
| Cable |
PTFE Polytetrafluoroethylene |
| Connector |
Brass, nickel-plated |
| Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
EPRO PR6423/002-030 CON021 Dynamic Performance
| Specification |
Details |
| Frequency Range (-3 dB) |
0 to 20,000 Hz |
| Rise Time |
< 15 µs |
| Compatibility |
Works with PR6422, PR6423, PR6424, PR6425, PR6426, PR6453 |
| Extended Range Use |
CON021/91x-xxx |
| Specific Requirement |
PR6425 requires extended range converter |
Environmental Specifications for CON021
| Specification |
Details |
| Operating Temperature Range |
-30°C to +100°C (-22°F to 212°F) |
| Shock and Vibration Resistance |
5g @ 60 Hz @ 25°C (77°F) |
| Protection Class |
IP20 |
Power & Electrical Specifications
| Specification |
Details |
| Supply Voltage Range |
-23V to -32V (Output Range: -4V to -20V) |
|
Alternative: -21V to -32V (Output Range: -2V to -18V) |
Physical Specifications
| Specification |
Details |
| Housing Material |
LMgSi 0.5 F22 |
| Weight |
Approx. 120 grams (4.24 oz) |
| Mounting |
4 Screws M5x20 (Included in Delivery) |
| Connections |
Transducer: Self-Locking Lemo-Plug |
|
Supply/Output: Screw Terminal (max. 1.5mm² wire) |
Product Origin, Dimensions, and Weight
- Origin: Manufactured in Germany
- Dimensions:
- EPRO PR6423/002-030 CON021: 16 cm x 6 cm x 4 cm
- Weight:
- EPRO PR6423/002-030 CON021: Approx. 220 grams (7.76 oz)
