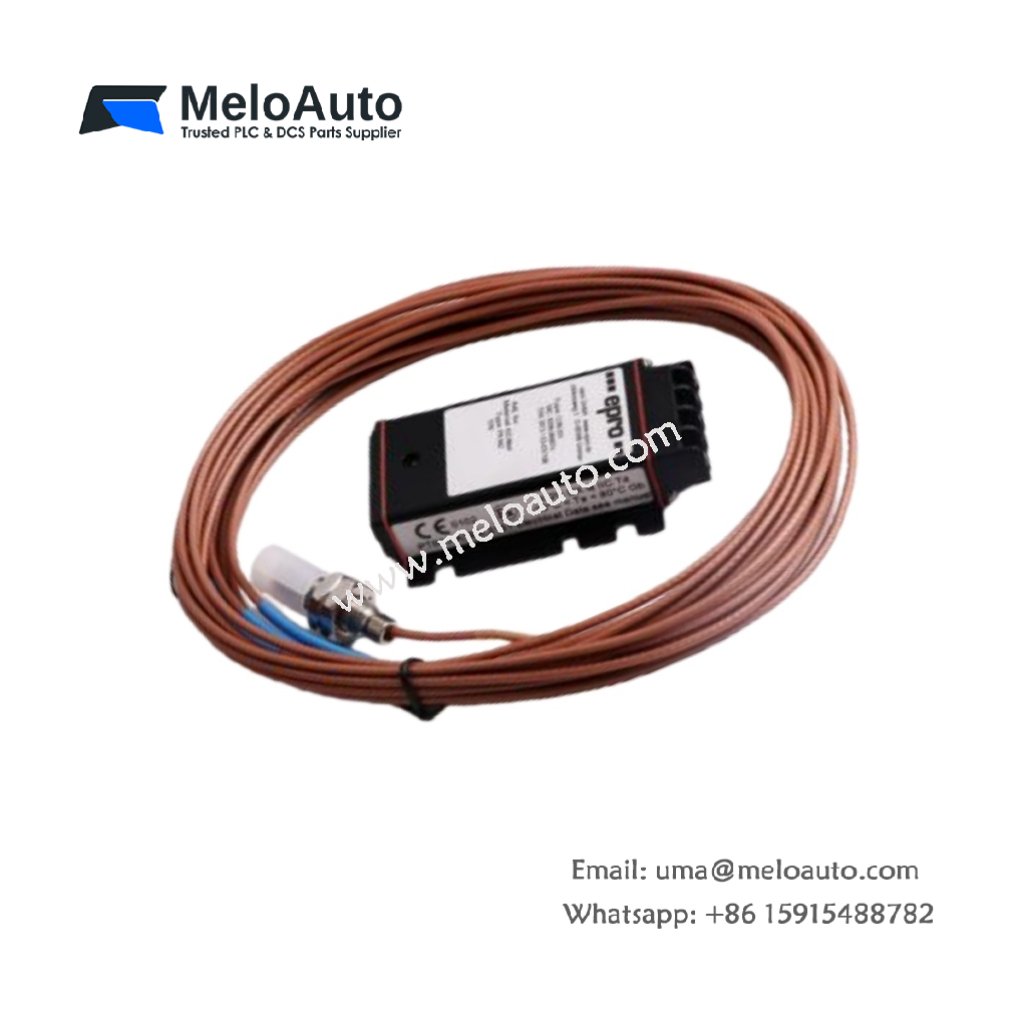

PR6423/000-131-CN CON031 Linear Displacement Sensor Module

Origin: Germany (EPRO standard production)
Dimensions: 16 cm x 6 cm x 4 cm
Weight: Approx. 100 grams (3.53 oz)

The EPRO PR6423/000-131-CN CON031 delivers high-accuracy linear displacement measurement with exceptional repeatability, designed for industrial automation and machinery monitoring. Its robust stainless-steel construction and IP66 rating allow reliable operation in harsh environments.

Key Features

Measures linear displacement with ±0.025 mm accuracy over the full range
Compact sensor tip made of PEEK ensures durability under high temperatures
Includes 1-meter cable with PTFE insulation and nickel-plated brass connector
Suitable for ferromagnetic steel targets with minimum shaft diameter of 25 mm
IP66 protection prevents dust and water ingress for harsh industrial conditions
Temperature tolerance up to 180°C at the sensor tip, supporting demanding applications
ISO-compliant incremental scale factor enables precise automation calibration

Technical Specifications

Parameter	Specification
Linear Measurement Range	2 mm (80 mils)
Initial Air Gap	0.5 mm (20 mils)
Incremental Scale Factor (ISF)	8 V/mm ± 5% @ 0–45°C
Deviation from Best Fit Line (DSL)	±0.025 mm ± 1 mil @ 0–45°C
Minimum Shaft Diameter	25 mm (0.79 in)
Target Material	42CrMo4 Steel (AISI/SAE 4140), others on request
Protection Class	IP66, IEC 60529
Operating Temperature	Sensor: –35 to +180°C; Cable & Connector: –35 to +150°C
Materials	Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE, Connector: Brass/Nickel
Weight	100 g (3.53 oz)
