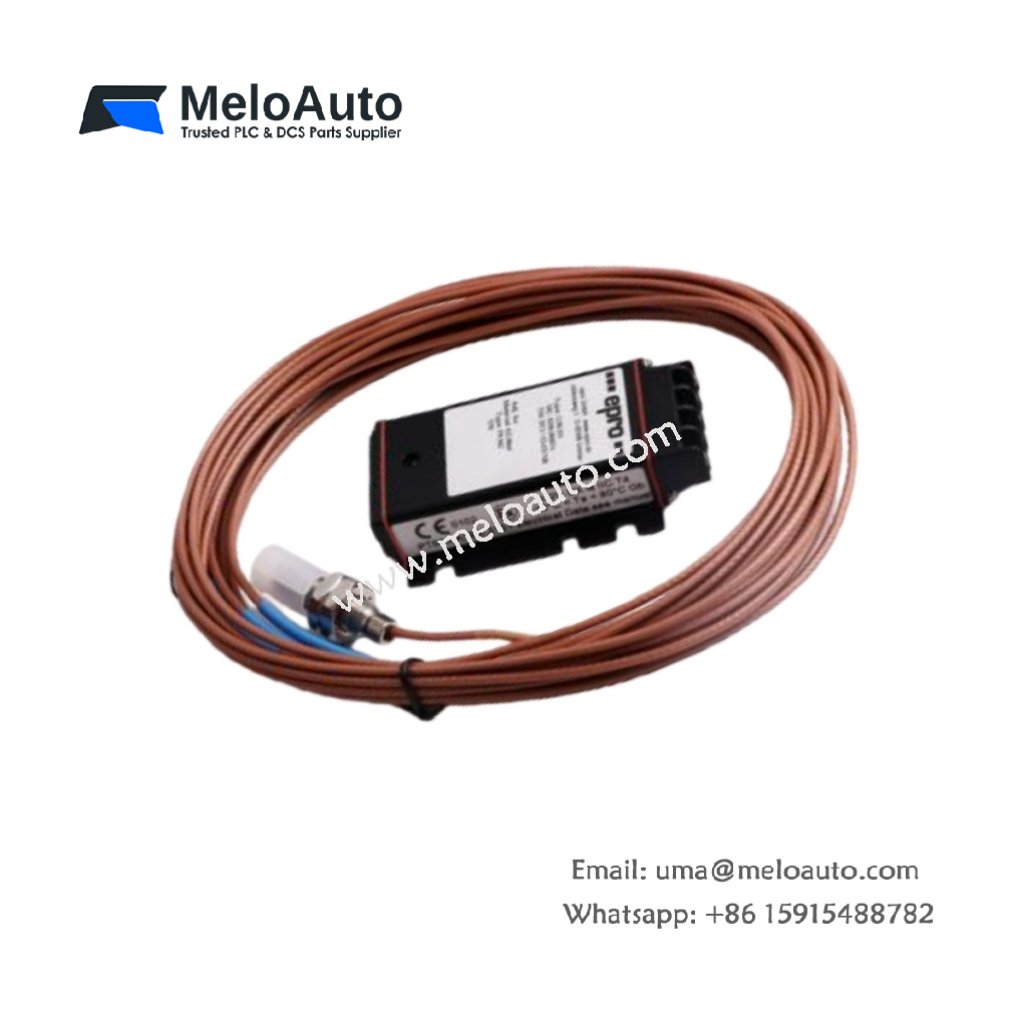

The EPRO PR642 CON021 9200-0006n from Emerson is a high-precision eddy current sensor engineered for accurate measurement of position, displacement, vibration, and speed in conducting objects. Its compact design and robust construction make it ideal for industrial and laboratory automation applications.
Key Features
- Provides precise measurements with linear output for 4-20 mA or 0-10 VDC signals.
- Maintains high accuracy of ±0.5% and linearity up to 0.296 across the measurement range.
- Operates reliably in wide temperature conditions from -40°C to 485°C.
- Withstands humidity from 5% to 95% RH and shock loads up to 50 g for 10 ms.
- Compact dimensions and rugged design allow easy installation in confined or harsh spaces.
- Supports non-contact measurements for high sensitivity and stable readings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson (EPRO) |
| Model Number | PR642 CON021 9200-0006n |
| Product Type | Eddy Current Sensor |
| Output Type | 4-20 mA or 0-10 VDC |
| Accuracy | ±0.5% |
| Linearity | 0.296% |
| Operating Temperature | -40°C to 485°C |
| Humidity Range | 5% to 95% RH |
| Vibration Resistance | 20 g @ 2 kHz |
| Shock Resistance | 50 g @ 10 ms |
| Dimensions | 60 mm x 30 mm x 20 mm |
| Weight | 100 g |
| Measuring Targets | Conducting materials, ferromagnetic and non-ferromagnetic metals |
Applications
- Position, displacement, and thickness measurement for industrial equipment
- Vibration and speed monitoring in rotating machinery
- Non-destructive testing and quality control in manufacturing
- Robotic and automated motion control systems
- Automotive and aerospace component testing
- Material sorting and process monitoring in production lines
Origin, Dimensions & Weight
- Origin: Germany (EPRO standard production)
- Dimensions: 60 mm x 30 mm x 20 mm
- Weight: 100 g
