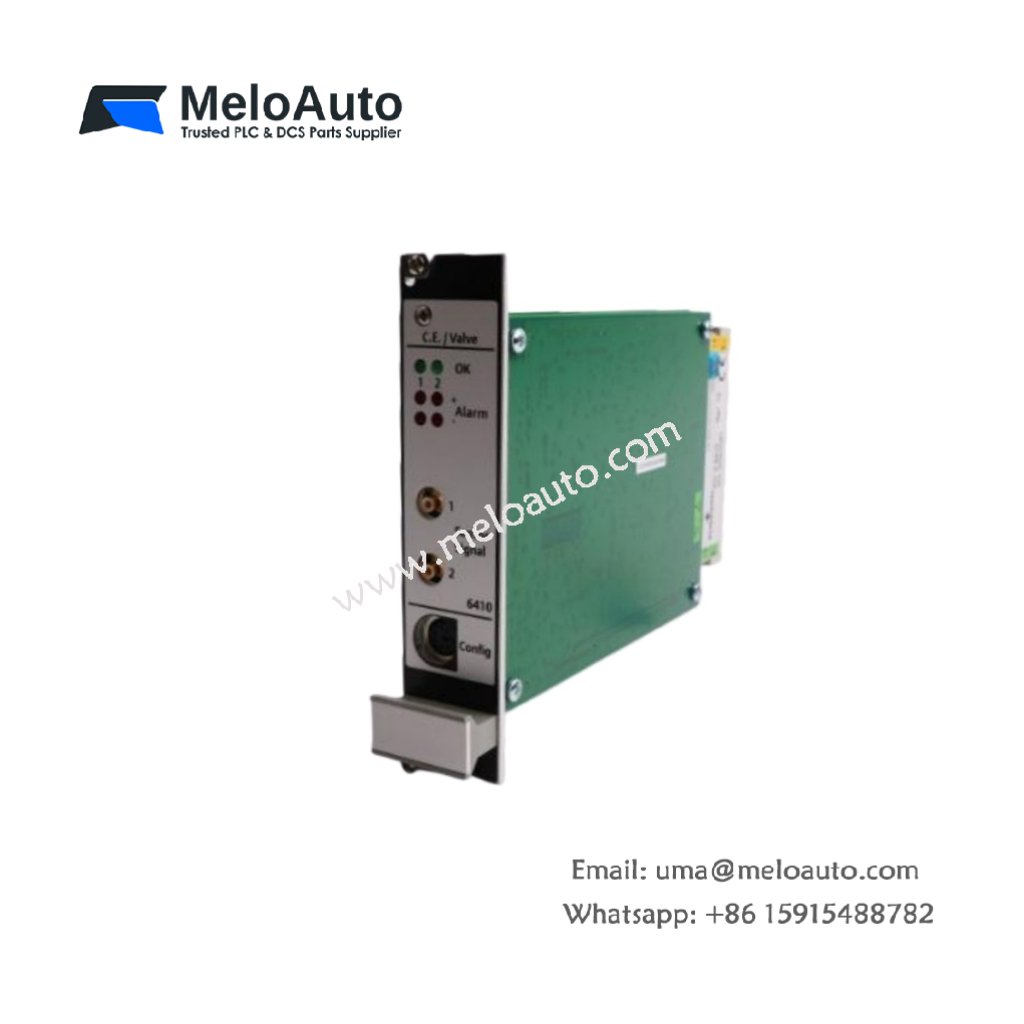

EPRO A6410 Valve and Case Expansion Monitor

Overview:

The EPRO A6410 is a high-performance valve and case expansion monitor designed specifically for use in AMS 6500 Machinery Health Monitoring Systems. Manufactured by Emerson EPRO, this sensor excels in both reliability and durability. Its robust design allows it to perform well even in harsh industrial environments. As a result, it ensures your machinery operates efficiently, helping you maintain optimal performance and minimize downtime.

Key Features:

Brand: Emerson EPRO
Series: AMS 6500 Machinery Health Monitoring
Model: EPRO A6410
Condition: New and ready for installation

Technical Specifications:

Parameter	Value
Transducer Inputs	2 independent, differential inputs
Input Type	Inductive, half-bridge, full-bridge, differential transformers
Input Compatibility	Compatible with part numbers PR 9350/xx and K2315/xx
Input Isolation	Galvanically separated from power supply
Input Impedance	200 kΩ
Input Voltage Range	3.6 VDC, protected against overvoltage
Measuring Frequency Range	0-100 Hz (-3 dB)
Measuring Range	Continuously adjustable via configuration software, outputs may be inverted
Carrier Frequency	4.75 kHz
Sensor Power Supply	Separate buffered supply, galvanically separated from all system voltages
Nominal Supply Voltage	4 V RMS
Permissible Load	120-600 Ω
Front Panel Outputs	Green LEDs (2) for channel status (OK), Red LEDs (4) for alert/danger
Buffered Outputs	2 outputs identical to transducer sensor inputs
Output Voltage	+12 V
Output Load	> 100 kΩ
Configuration Interface	Mini DIN socket (RS-232) for configuration, parameter monitoring, and status monitoring
Module Handle	Facilitates easy removal and identification of the module and sensors
