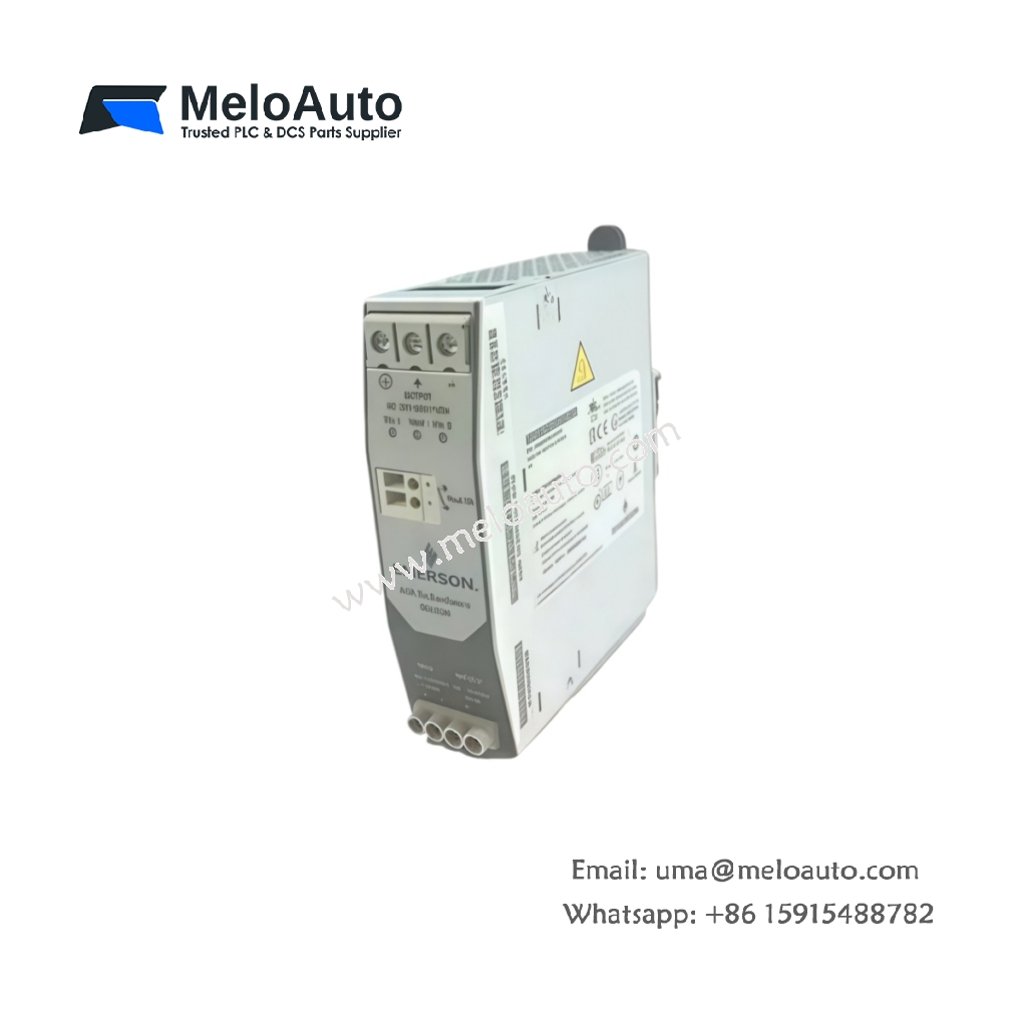

The VE5132 power supply redundancy module from Emerson maintains continuous DC output when one supply drops offline. This unit combines two source feeds and routes power to a shared load rail. Engineers choose this module when they need dependable failover and fast DIN rail installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE5132 |
| Module Type | Power Supply Redundancy Module |
| Input Voltage | Dual DC supply inputs |
| Output Type | Single redundant DC output |
| Interface | Screw-type input and output terminals |
| Mounting | DIN rail or panel mount |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 0.40 kg |
| Dimensions | Approx. 120 mm × 88 mm × 58 mm |
| Energy Storage | On-board capacitors for output holdup |
| Component Count | Dual input paths with steering diodes |
Interface and Power Details
The VE5132 accepts two DC inputs through screw terminals and steers power to one output rail. Steering diodes isolate both sources and block reverse current between supplies. Therefore, technicians gain seamless failover without manual switching or downtime. The module mounts on a standard DIN rail and needs no special tools.
Physical and Environmental Parameters
The unit measures roughly 120 mm by 88 mm by 58 mm and weighs about 0.40 kg. Its compact housing fits tight enclosures and keeps panel layout efficient. Meanwhile, the -40°C to 70°C operating range suits remote and outdoor installations. The on-board energy storage holds the output steady during brief input interruptions.
Why This Module Matters
Plant teams value the VE5132 for its seamless redundancy and rugged temperature range. The capacitor bank bridges short supply gaps during source switching. As a result, connected equipment avoids resets and keeps running without interruption. Technicians also appreciate the clear terminal labeling and quick DIN rail mounting.
