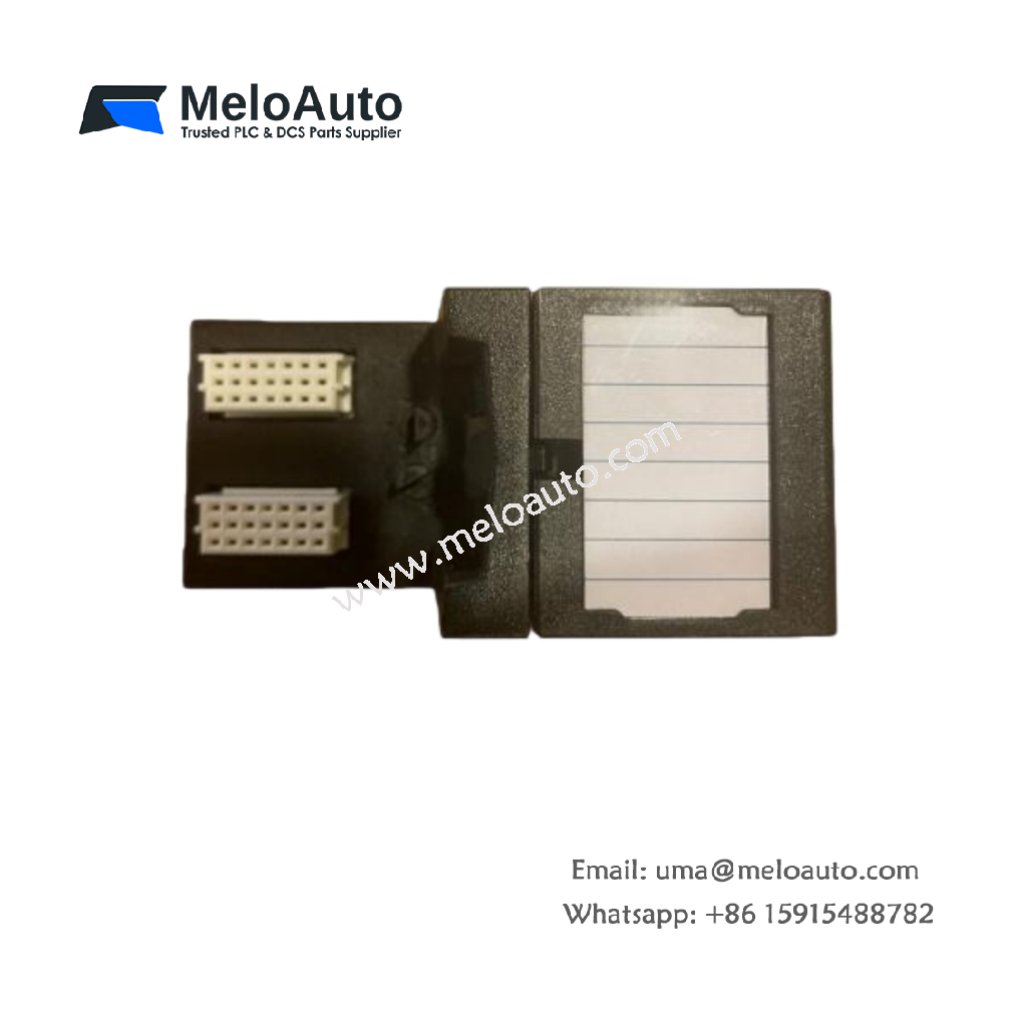

Emerson KJ4006X1-BP1 Redundant Serial Interface Card

Overview

The Emerson KJ4006X1-BP1 is a redundant serial interface card designed specifically for the Emerson DeltaV distributed control system (DCS). It offers two serial ports, providing flexible and reliable connections to RS-232 or RS-485 devices. With its robust design, the KJ4006X1-BP1 ensures high availability, making it an ideal solution for industrial applications requiring reliable communication with serial devices.

Key Features

Dual Serial Ports
The KJ4006X1-BP1 provides two serial ports for connecting to RS-232 or RS-485 devices, allowing for versatile connectivity options.
Redundant Design
This card features a redundant design, ensuring high availability in critical applications. The redundancy minimizes the risk of communication failure, maintaining reliable data transmission.
Hot-Swappable
The card supports hot-swapping, enabling easy replacement or maintenance without shutting down the system.
Plug-and-Play Installation
The KJ4006X1-BP1 allows for simple and quick installation with its plug-and-play feature, minimizing system downtime during setup.
Supports HART Protocol
The card supports the HART protocol, allowing for device configuration and diagnostics in industrial settings.
Data Rate
The KJ4006X1-BP1 supports a high data rate of up to 115.2 kbps, ensuring efficient communication with connected devices.

Technical Specifications

Specification	Details
Product Type	Redundant Serial Interface Card
Manufacturer	Emerson
Model Number	KJ4006X1-BP1
Compatibility	Emerson DeltaV DCS
Ports	2 Serial Ports (RS-232/RS-485)
Data Rate	Up to 115.2 kbps
Operating Temperature	-40°C to +70°C
Environmental Rating	ISA-S71.04-1985 Airborne Contaminants Class G3
Relative Humidity	5% to 95%, Non-Condensing

Power Specifications

Specification	Details
Field Power	30 VDC at 3.2 A

Environmental Specifications

Specification	Details
Ambient Temperature	-40°C to +70°C
Shock Resistance	10 g, ½ Sinewave for 11 ms
Vibration Resistance	1 mm Peak to Peak (2 to 13.2 Hz) 0.7 g (13.2 to 150 Hz)
Airborne Contaminants	ISA-S71.04-1985 Airborne Class G3
Relative Humidity	5% to 95%, Non-Condensing

Applications

PLC and RTU Connectivity
The KJ4006X1-BP1 is ideal for connecting Programmable Logic Controllers (PLCs) and Remote Terminal Units (RTUs) to RS-232 and RS-485 devices, enhancing system communication.
Modbus Communication
It supports Modbus communication protocols, allowing for easy integration into existing automation systems.
SCADA Systems
The KJ4006X1-BP1 is a reliable option for Supervisory Control and Data Acquisition (SCADA) applications, enabling robust and efficient data transfer.
Industrial Automation
Widely used in industrial automation, the KJ4006X1-BP1 ensures seamless integration and operation in various automation environments.

Why Choose the Emerson KJ4006X1-BP1?

Dual Serial Ports: With two ports for RS-232 and RS-485 devices, it offers flexible and reliable connectivity.
Redundant Design: The card’s redundant design ensures high availability, essential for critical industrial operations.
Easy Maintenance: Hot-swapping capabilities enable quick replacements without system downtime.
Versatile Applications: It supports various communication protocols and applications, from PLCs to SCADA systems.
