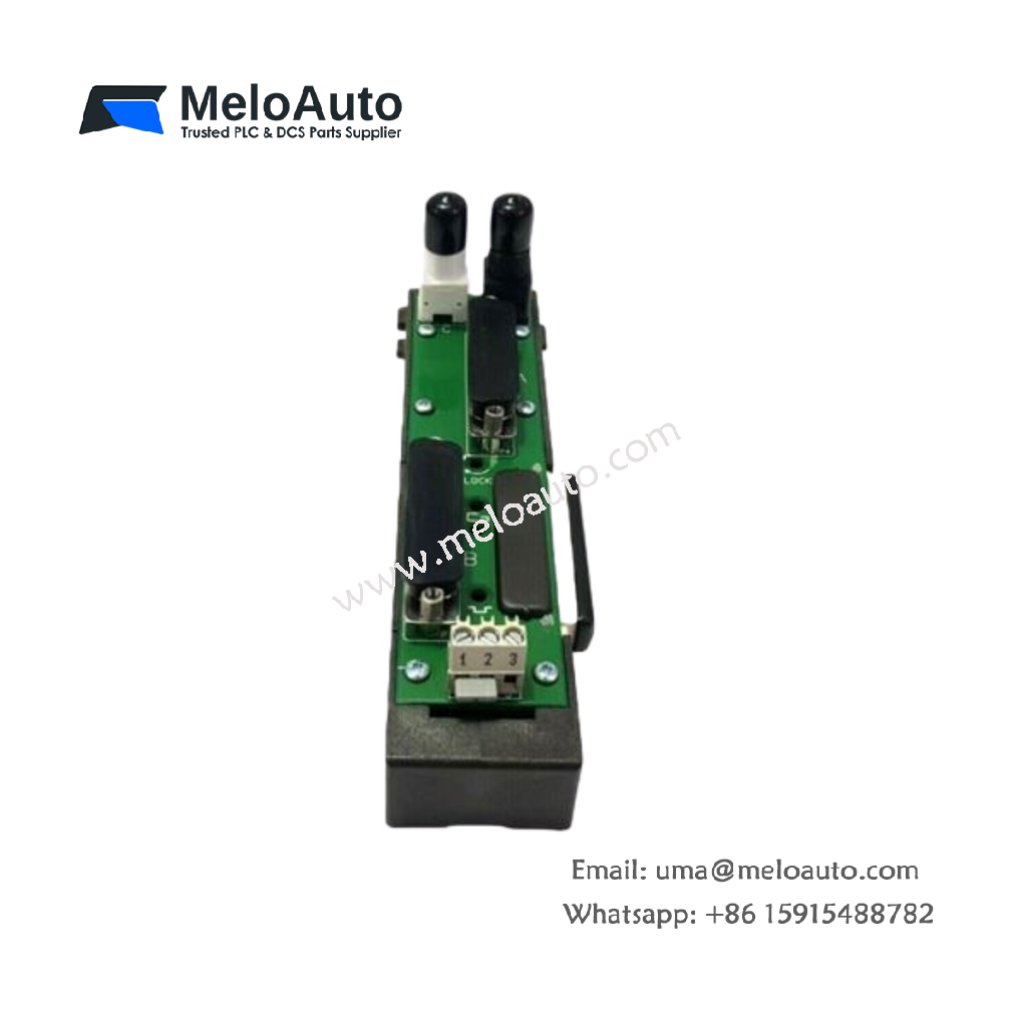

Emerson KJ4001X1-NB1 12P3368X012 I/O Carrier Extender

Overview

The Emerson KJ4001X1-NB1 12P3368X012 serves as a 1-wide I/O carrier extender, designed specifically for hazardous environments. It offers a robust solution for extending DeltaV I/O modules, especially in challenging industrial settings. With certifications for use in Class I, Division 2 and Zone 0/1 locations, this extender ensures safety and continuous performance in volatile environments. Engineers rely on its durable construction to withstand shock, vibration, and extreme temperatures, making it an ideal choice for demanding applications. Additionally, the KJ4001X1-NB1 integrates effortlessly into existing DeltaV I/O chassis, simplifying installation and system expansion.

Key Features

Hazardous Atmosphere Compliance
The KJ4001X1-NB1 is fully certified for use in Class I, Division 2 and Zone 0/1 hazardous locations. This certification guarantees its reliability and safety when deployed in volatile environments.
Rugged Construction
Built with resilient materials, the module resists shock, vibration, and extreme temperatures. As a result, it delivers long-lasting performance even in harsh conditions.
Easy Integration
The KJ4001X1-NB1 features a plug-and-play design, making installation quick and straightforward without the need for specialized tools. This simplifies the upgrade process, saving valuable time.
Flexible Communication
The extender supports multiple communication protocols, including Ethernet/IP, Modbus TCP, OPC, and DeltaV Link, ensuring compatibility with various industrial systems.

Technical Specifications

Specification	Details
Product Type	I/O Carrier Extender
Manufacturer	Emerson
Model Number	KJ4001X1-NB1 12P3368X012
Channels	8 Analog Inputs (4-20 mA)
	16 Digital Inputs (24 VDC)
	8 Output Channels (24 VDC)
Power Requirements	24 VDC to 230 VDC
Communication Protocols	Ethernet/IP, Modbus TCP, OPC, DeltaV Link
Operating Temperature	-20°C to +70°C
Dimensions	100 mm x 120 mm x 3 mm

Power Specifications

Specification	Details
Local Bus Power	12 VDC at 8 A

Environmental Specifications

Specification	Details
Ambient Temperature	-40°C to +70°C
Shock Resistance	10 g half-sine wave for 11 ms
Vibration Resistance	1 mm peak-to-peak (5 to 16 Hz), 0.5 g (16 to 150 Hz)
Airborne Contaminants	ISA-S71.04-1985 Airborne Class G3
Relative Humidity	5% to 95%, non-condensing
IP Rating	IP20

Applications

Industrial Automation
Ideal for industrial automation systems, the KJ4001X1-NB1 ensures reliable I/O module extensions for process control and monitoring.
Hazardous Locations
Perfect for use in hazardous locations, including chemical plants, oil & gas, and other environments requiring high safety standards.
Process Control Systems
Frequently used in process control applications where reliable I/O module extension is essential for system stability.

Why Choose the Emerson KJ4001X1-NB1?

Certified for Hazardous Locations: The KJ4001X1-NB1 is certified for use in Class I, Division 2 and Zone 0/1 locations, ensuring its safe operation in hazardous environments.
Built to Last: With rugged construction, this module withstands extreme conditions, delivering durability and reliability.
Easy Integration: The plug-and-play design allows quick and seamless integration into existing systems.
Flexible Communication: It supports Ethernet/IP, Modbus TCP, OPC, and DeltaV Link, ensuring compatibility with a variety of communication standards.
