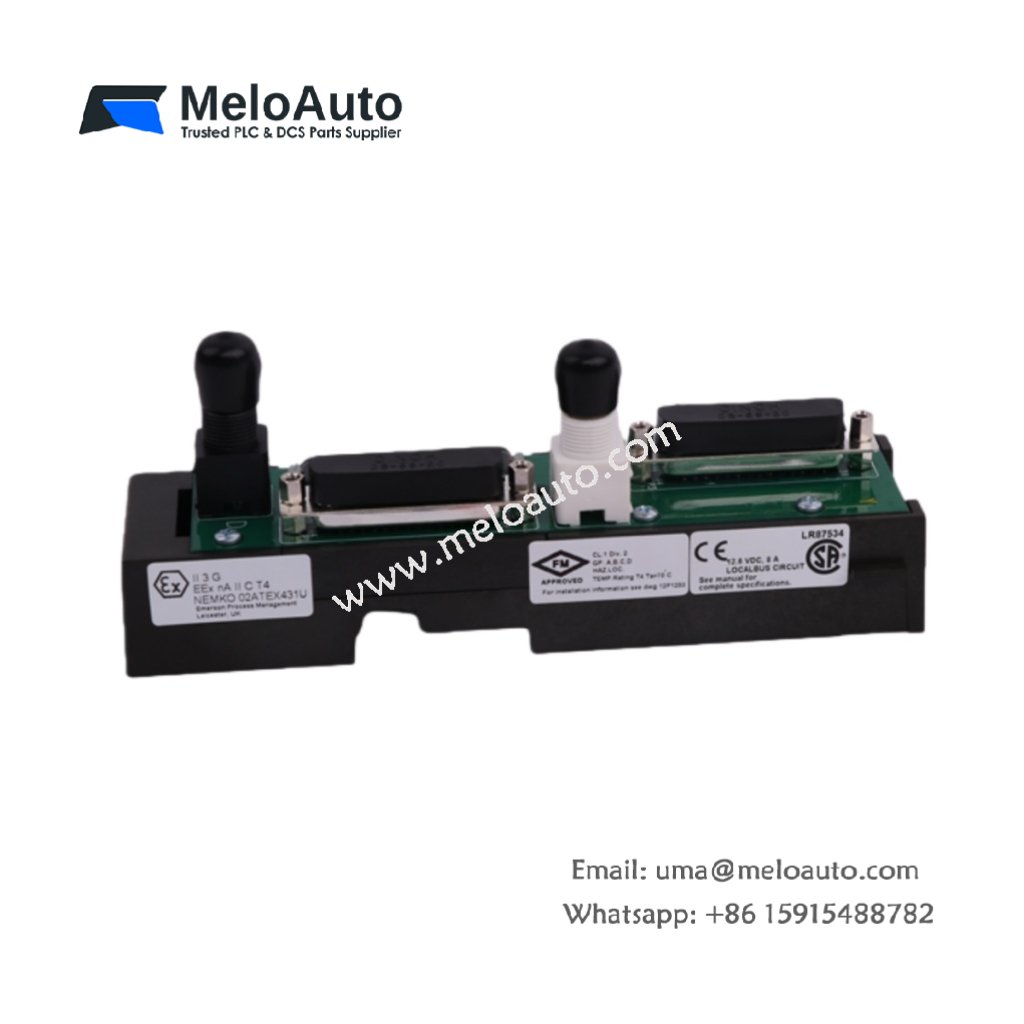

Emerson KJ4001X1-NA1 12P3373X012 Dual Right-Side Extender

The Emerson KJ4001X1-NA1 12P3373X012 is a versatile Dual Right-Side Extender for the DeltaV™ M-series DCS. It effectively expands the system by adding more modules to the existing DeltaV node. This extender connects two right-side carriers to the system, enabling scalable control architectures in complex industrial automation environments. Furthermore, the module integrates smoothly with controllers or I/O carriers through the backplane, enhancing system flexibility.

Key Features of the Emerson KJ4001X1-NA1 12P3373X012

Scalable Expansion: The KJ4001X1-NA1 12P3373X012 simplifies system expansion by supporting two additional right-side carriers, allowing for easy growth of your DeltaV M-series system.
Reliable Connectivity: It provides seamless communication through ribbon cable or backplane connectors, with support for redundant paths to ensure system reliability.
Flexible Mounting Options: The module can be mounted on a DIN rail or directly onto a panel, offering flexibility during installation.
Efficient Power Consumption: The KJ4001X1-NA1 12P3373X012 draws power directly from the DeltaV system backplane, ensuring optimal energy efficiency.

Technical Specifications

Specification	Details
Model	KJ4001X1-NA1
Part Number	12P3373X012
Function	Dual Right-Side Extender for DeltaV M-series DCS
Purpose	Extends DeltaV backplane to support additional modules
Connectivity	Ribbon cable or backplane connector, supports redundant communication paths
Mounting	DIN rail or panel-mounted, installed adjacent to the extended module
Power Supply	Draws power from DeltaV system backplane
Operating Temperature	-40°C to +70°C
Humidity	5% – 95% RH, non-condensing
Shock Resistance	10 g, 11 ms half sine
Vibration Resistance	1 mm (2-13.2 Hz), 0.7 g
Certifications	Suitable for Zone 2 hazardous locations, ATEX, FM, CSA certified
LocalBus Power	12 VDC at 8 A
Environmental Rating	ISA-S71.04 –1985 Airborne Contaminants Class G3
IP Rating	IP 20

Environmental and Power Specifications

Operating Temperature: The KJ4001X1-NA1 12P3373X012 operates efficiently within a wide temperature range of -40°C to +70°C, ensuring reliable performance in diverse environments.
Shock: It withstands up to 10 g shock for 11 ms half sine, making it suitable for industrial applications with vibration or shock exposure.
Vibration Resistance: The module resists vibrations, withstanding 1 mm peak-to-peak from 2 to 13.2 Hz and 0.7 g from 16 to 150 Hz.
Power Consumption: It draws 12 VDC at 8 A from the DeltaV backplane, optimizing power efficiency.

Applications of the Emerson KJ4001X1-NA1 12P3373X012

Industrial Automation: The KJ4001X1-NA1 12P3373X012 enables easy expansion of DeltaV M-series systems, ideal for large-scale control applications.
Process Control Systems: This module supports industrial systems that require additional modules and carriers to manage complex processes.
Hazardous Locations: Certified for Zone 2 hazardous locations, this module ensures safe and reliable operation even in demanding environments.

Why Choose the Emerson KJ4001X1-NA1 12P3373X012?

Effortless Expansion: By supporting two right-side carriers, the KJ4001X1-NA1 12P3373X012 allows easy and scalable expansion of your DeltaV M-series system.
Enhanced Communication: The module ensures continuous communication by providing redundant paths through ribbon cables or backplane connectors.
Durable and Reliable: Built to withstand harsh environmental conditions, the KJ4001X1-NA1 12P3373X012 offers reliable performance in both routine and challenging industrial settings.
