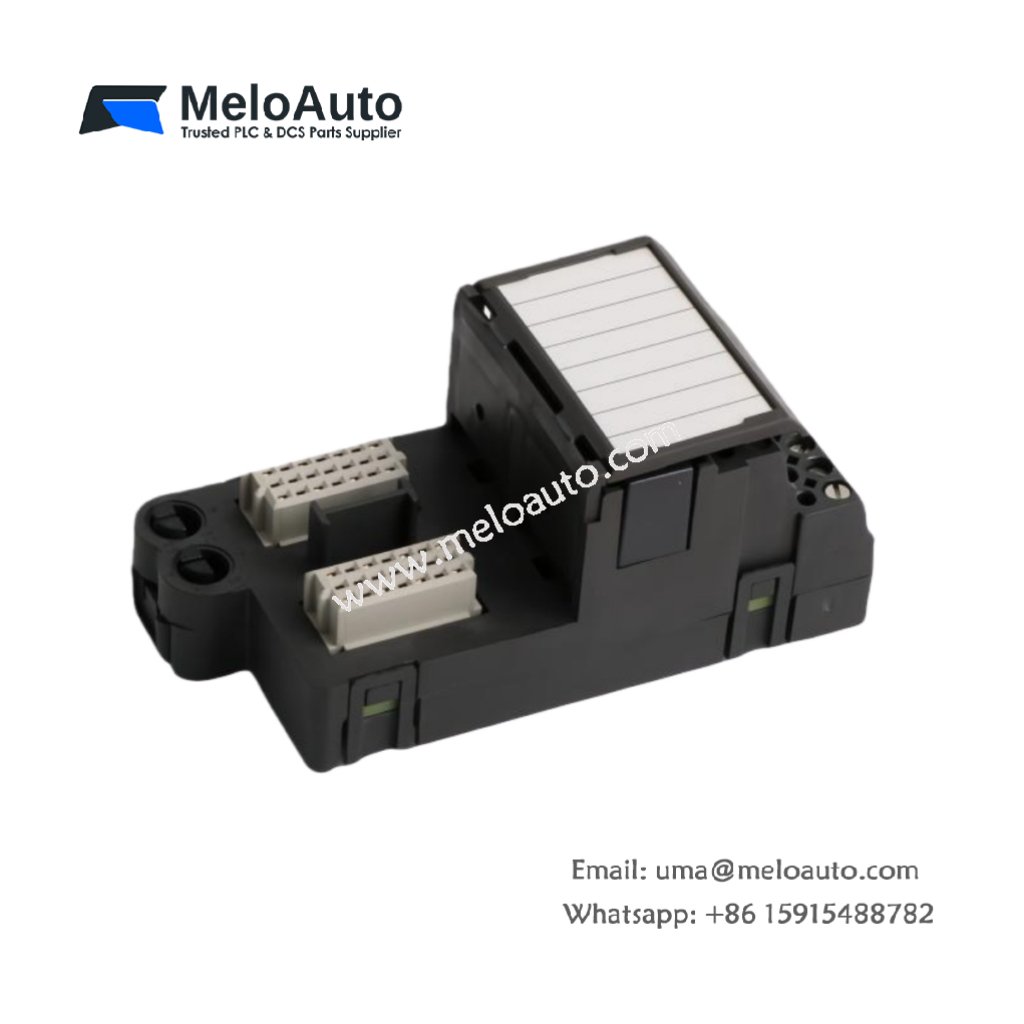

Emerson KJ4001X1-CA1 I/O Terminal Block

Overview

The Emerson KJ4001X1-CA1 is a high-performance I/O Terminal Block designed for use in hazardous atmospheres. It ensures reliable and safe connectivity for industrial automation systems operating in explosive or dangerous environments. This terminal block is built to withstand challenging conditions while meeting strict safety standards.

Key Features

• Hazardous Atmosphere Compliance
  The KJ4001X1-CA1 is certified for use in Class 1, Zone 2 hazardous locations. It provides safe operation in explosive or flammable environments.
• Reliable Power Handling
  This terminal block supports 250 VAC and 60 VDC input power at 1 A per channel, ensuring stable operation in a wide range of industrial applications.
• Durable Environmental Protection
  Built to withstand extreme conditions, this device operates in ambient temperatures ranging from -40°C to +70°C, ensuring dependable performance in both cold and hot environments.
• Shock and Vibration Resistance
  The KJ4001X1-CA1 is designed to resist 10 g shock with a half-sine wave for 11 ms and can handle vibration ranging from 1 mm peak-to-peak from 2 to 13.2 Hz and 0.7 g from 13.2 to 150 Hz.
• Protection Against Contaminants
  The terminal block complies with ISA-S71.04-1985 for Class G3 airborne contaminants. It also operates within a 5% to 95% non-condensing relative humidity range, making it suitable for demanding industrial environments.

Technical Specifications

Environmental Specifications

• Operating Temperature Range: -40°C to +70°C
• Shock Resistance: 10 g half-sine wave for 11 ms
• Vibration Resistance:
  • 1 mm peak-to-peak from 2 to 13.2 Hz
  • 0.7 g from 13.2 to 150 Hz
• Airborne Contaminants: Complies with ISA-S71.04-1985 Class G3
• Relative Humidity: 5% to 95% non-condensing

Safety and Installation Guidelines

• Safety Precautions
  Never remove or insert the KJ4001X1-CA1 terminal block when the system power is energized. Always follow the installation procedures to ensure safety, especially in hazardous environments.
• Compliance with Hazardous Atmosphere Standards
  This terminal block is certified for use in Class 1, Zone 2 hazardous locations. For further certification details, refer to the product label.

Applications

• Industrial Automation: Ensures reliable and safe connectivity for control systems in hazardous environments.
• Process Control: Ideal for use in chemical, oil & gas, and petrochemical industries.
• Hazardous Location Systems: Provides essential I/O connectivity for systems operating in explosive or hazardous atmospheres.
• Remote Monitoring: Used in environments requiring robust and safe equipment for remote data acquisition and control.

Why Choose the Emerson KJ4001X1-CA1 I/O Terminal Block?

• Safety Certified: Meets stringent hazardous location standards, ensuring safe operation in dangerous environments.
• Versatile Power Handling: Supports a wide range of voltages and current ratings, ensuring reliable operation.
• Durable and Reliable: Designed for challenging conditions with protection against shock, vibration, and airborne contaminants.
• Easy Installation: Hot-swappable with plug-and-play capabilities for easy setup and maintenance.
