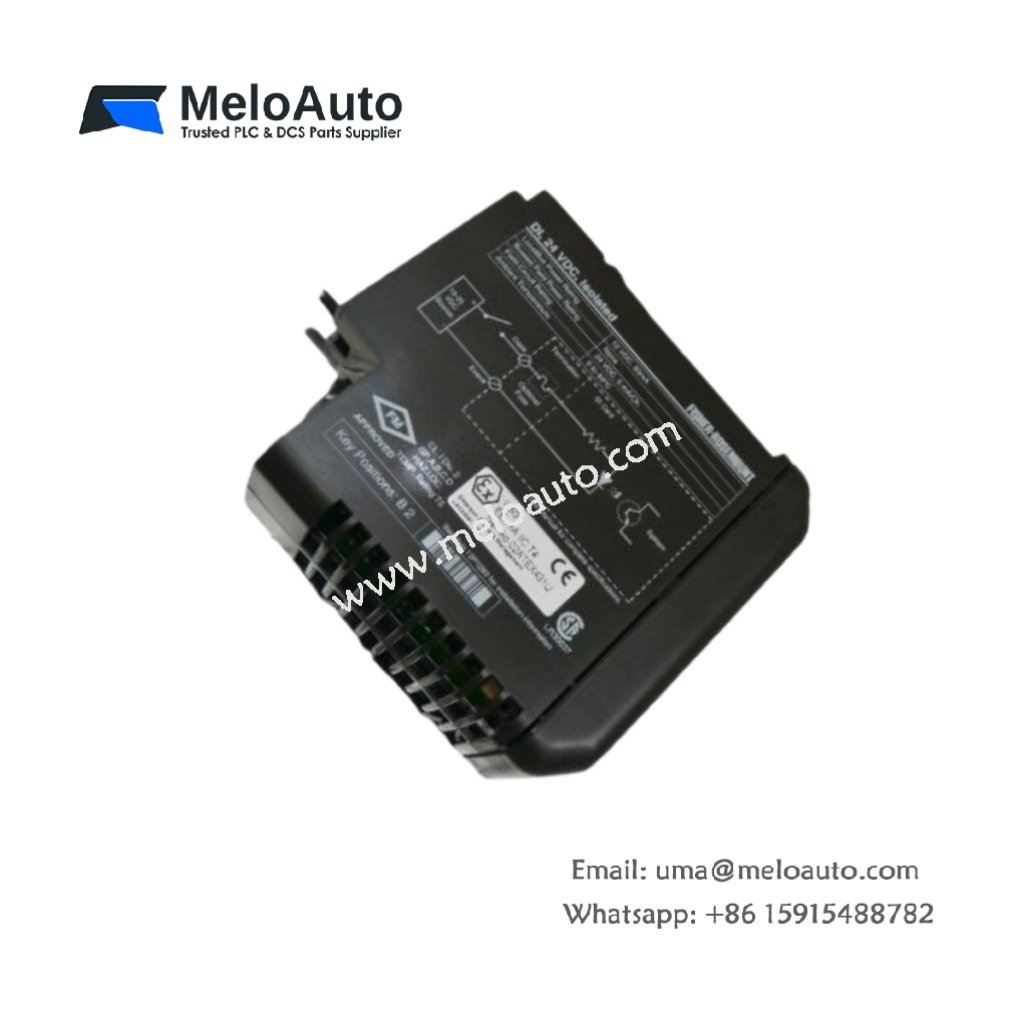

Emerson KJ3001X1-BA1 12P0549X112 Discrete Input Module

Product Overview

The Emerson KJ3001X1-BA1 12P0549X112 is a high-performance isolated discrete input module designed for industrial automation. It is part of the DeltaV automation system and connects digital input devices such as switches, sensors, and encoders to the control system. With 12 isolated input channels, the module effectively isolates electrical noise and interference, ensuring reliable performance in demanding industrial environments.

Key Features

Isolated Discrete Inputs: The module provides 12 isolated input channels, each electrically separated from the power supply and other inputs.
Wide Input Voltage Range: Accepts input voltages from 10 VDC to 32 VDC, offering flexibility with various field devices.
High Accuracy & Repeatability: Delivers accurate and repeatable input signals for precise control applications.
Short Circuit Protection: Designed to protect against short circuits, enhancing system reliability.
Overvoltage Protection: Safeguards the module from voltage spikes and transients.
Easy Installation: Features quick-connect terminals for simple wiring and DIN rail mounting for easy installation in control panels.

Specifications

Specification	Details
Model Number	KJ3001X1-BA1 12P0549X112
Input Channels	12
Input Voltage Range	10 to 32 VDC
Input Current	10 mA
Mounting Type	DIN Rail
Dimensions	120 x 90 x 70 mm
Weight	200 g
Protection	Short circuit & overvoltage protection

Applications

Industrial Automation: Ideal for machine control, process control, and building automation systems.
PLC Input: Provides essential input signals to Programmable Logic Controllers (PLCs).
SCADA System Input: Supplies reliable input signals for Supervisory Control and Data Acquisition (SCADA) systems.
