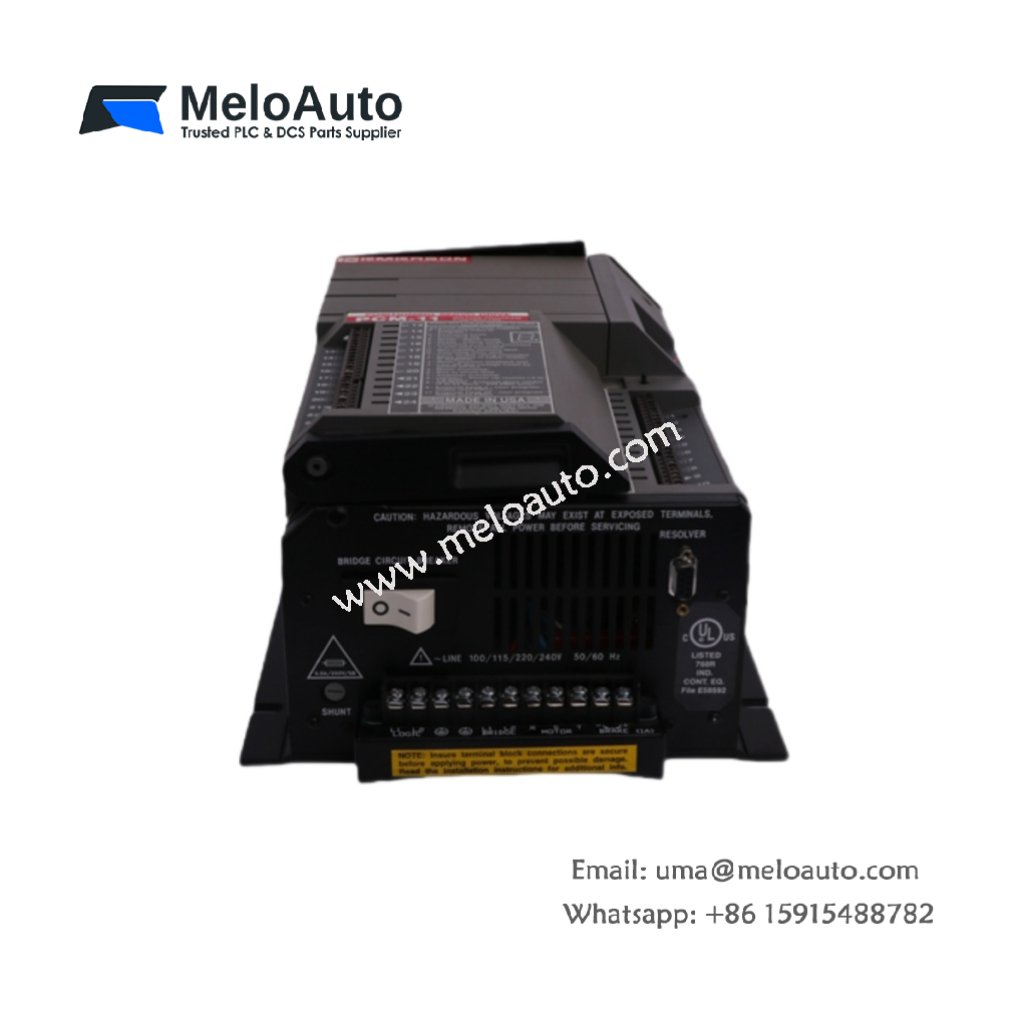

EMERSON FX-340 Positioning Servo Drive

The EMERSON FX-340 is a high-performance positioning servo drive, designed to deliver precise motion control in a wide range of industrial applications. With a robust build and advanced features, the ensures reliable performance, whether operating under normal or heavy-duty conditions.

Key Features and Specifications

• Model Number: FX-340
• Manufacturer: Control Techniques
• Product Type: Positioning Servo Drive
• Voltage Rating: 230 V AC
• Max Output Current: 104 A (peak)
• Normal Duty Horsepower: 40 HP
• Heavy Duty Current: 80 A
• Heavy Duty Horsepower: 30 HP
• Keypad: No keypad included
• Operating Humidity: 0% to 80% (non-condensing)
• Storage Humidity: 0% to 80% (non-condensing)
• Maximum Operating Altitude: 1000 meters above sea level

Technical Specifications

Design and Performance Overview

The EMERSON FX-340 is engineered for optimal motion control, making it ideal for both standard and heavy-duty industrial applications. Rated for a 230 V AC input, this servo drive delivers a maximum output current of 104 A, supporting tasks that require high torque and power.

• Standard Duty Performance: Under normal conditions, the FX-340 achieves 40 horsepower, ensuring reliable operation for everyday applications.
• Heavy-Duty Performance: When operating under more demanding conditions, the drive supports 80 amps of current and delivers up to 30 horsepower.

Environmental Compatibility

The FX-340 is designed to function in challenging environments:

• Humidity: It operates efficiently in environments with humidity levels up to 80%, ensuring reliable performance even in humid areas.
• Storage Conditions: The servo drive can be stored in environments with up to 80% humidity (non-condensing), maintaining its durability.
• Altitude: Suitable for installations up to 1000 meters above sea level, making it versatile for use in various geographical locations.

Physical Dimensions and Weight

• Weight: 10.01 lbs (4.54 kg) – lightweight for easier installation and handling.
• Size: 4.0″ x 2.0″ x 7.0″ (10.2 cm x 5.1 cm x 17.8 cm)

Applications

The EMERSON FX-340 is ideal for a wide range of motion control applications, including:

• Packaging Machines: Provides precise control for packaging lines, optimizing speed and accuracy.
• Material Handling: Powers conveyors and automated handling systems.
• Machine Tools: Ideal for CNC machines requiring high precision.
• Robotics: Delivers accurate movement control for robotic arms and other robotic systems.
• Textile and Printing Industries: Enables smooth and efficient operations in textile manufacturing and printing press equipment.

Why Choose the EMERSON FX-340 Servo Drive?

The EMERSON FX-340 combines powerful performance with robust reliability, making it an excellent choice for demanding industrial applications. Whether under normal or heavy-duty load, the FX-340 offers flexible performance, easy installation, and durability in challenging environments.
