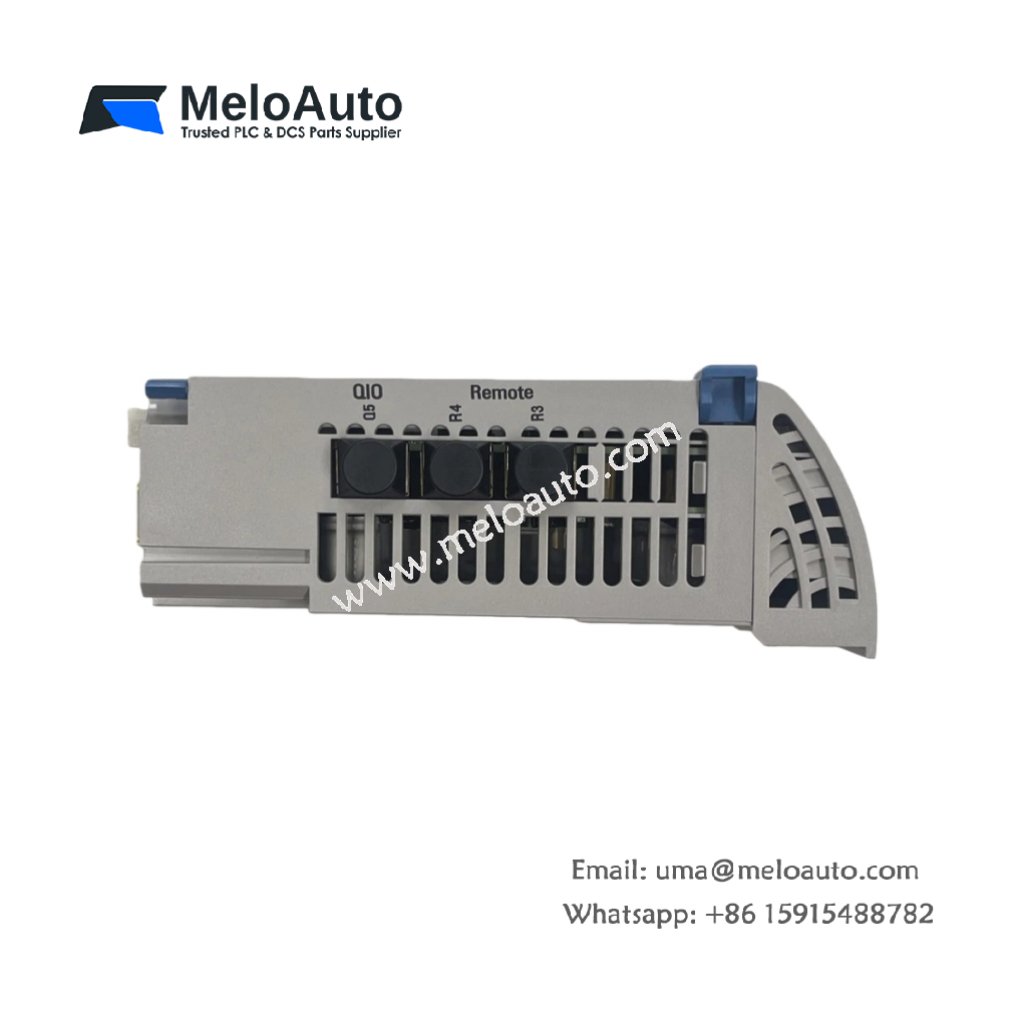

EMERSON 5X00717G01 High-Precision Analog Input Module

The EMERSON 5X00717G01 is a high-speed, high-precision analog input module designed for industrial control systems. With 14-bit resolution, it is ideal for voltage and current measurements across a variety of applications. This module integrates seamlessly with compatible Personality Modules to ensure accurate signal processing and is designed to meet the demanding needs of industrial environments.

Key Features

Multiple Input Ranges: The 5X00717G01 supports a wide range of input types, including voltage (±100 mV, ±250 mV, ±1 V, ±5 V, ±10 V) and current (4-20 mA), making it highly versatile for various industrial measurement needs.
14-Bit Resolution: Provides 14-bit resolution, ensuring accurate data acquisition and precise measurement of small signals in complex industrial systems.
Up to 8 Isolated Input Channels: The module supports up to eight individually isolated channels, enhancing data integrity by preventing signal interference between channels.
Fast Sampling Rate: With high-speed sampling rates, the 5X00717G01 ensures fast response times, making it suitable for real-time monitoring and control applications.
Surge Protection: Integrated surge protection safeguards the input circuits, providing enhanced reliability and durability in industrial environments.
Cold Junction Compensation: The module supports cold junction compensation for thermocouple inputs when used with compatible Personality Modules, ensuring accurate temperature measurement.
CE Mark Certified: The 5X00717G01 is CE Mark certified, confirming its compliance with European industrial standards and regulations.

Applications

The EMERSON 5X00717G01 is designed for a wide variety of industrial applications, including:

Industrial Control Systems: Provides high-precision voltage and current measurements for monitoring and controlling industrial processes.
Data Acquisition: Ideal for precise data acquisition in applications such as process automation and real-time monitoring.
Energy Monitoring: Used in systems for monitoring energy consumption and optimizing power usage.
Temperature Monitoring: When used with appropriate Personality Modules, it can accurately process thermocouple inputs for temperature measurement.

Technical Specifications

Parameter	Specification
Model Number	5X00717G01
Manufacturer	Emerson
Product Type	High-Precision Analog Input Module
Input Ranges (Voltage)	±100 mV, ±250 mV, ±1 V, ±5 V, ±10 V
Input Range (Current)	4-20 mA
Resolution	14 bits
Channels	8 (Individually isolated)
Sampling Rate	50 or 60 samples per second
Surge Protection	Integrated protection for input circuits
Cold Junction Compensation	Available for thermocouple inputs (with compatible Personality Modules)
Power Supply	Requires external power source for field-powered devices
Certification	CE Mark certified
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Relative Humidity	0% to 95% non-condensing

Design and Integration

The 5X00717G01 is engineered for easy integration into industrial systems. Its compact size and user-friendly design simplify installation and maintenance. The module ensures reliable, high-precision signal acquisition, even in harsh environments, helping improve overall system performance and reliability.
