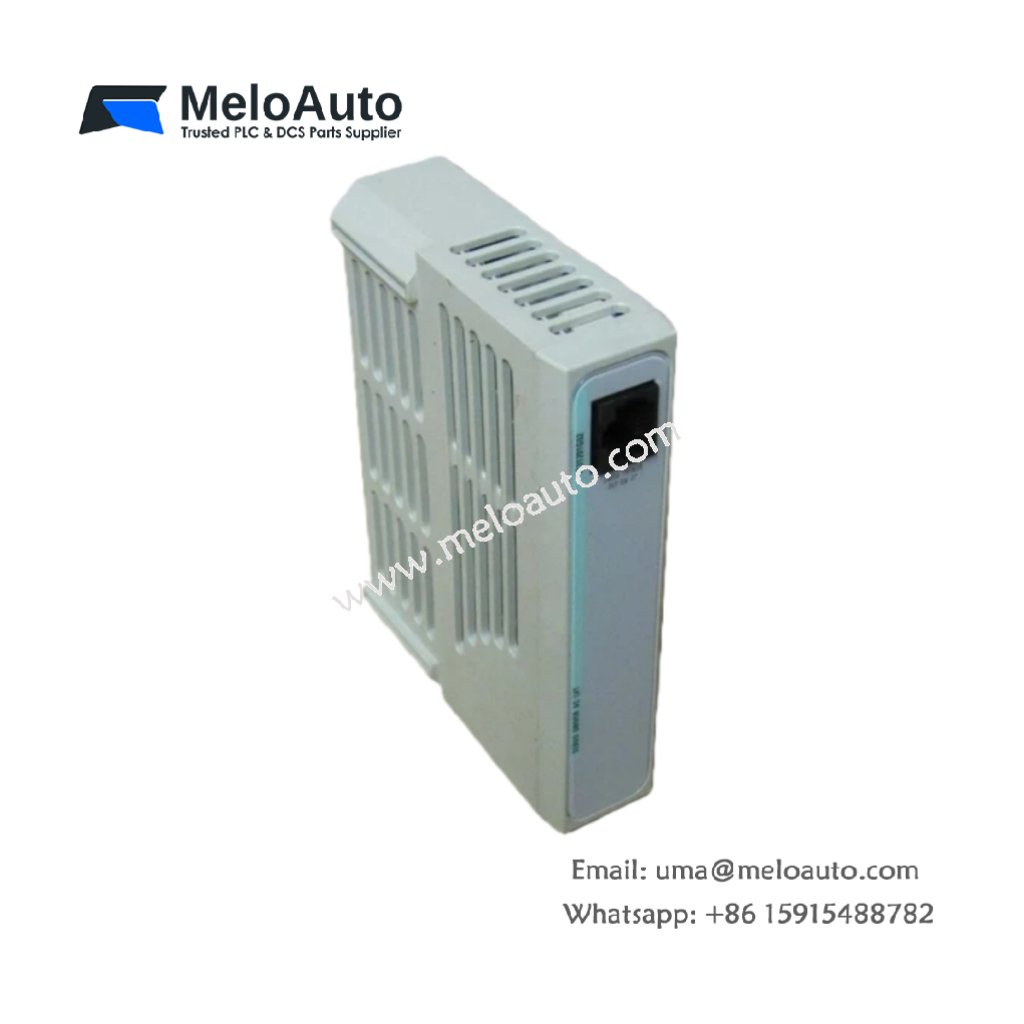

EMERSON 1C31201G02 Servo Driver Personality Module

The EMERSON 1C31201G02 is a specialized servo driver personality module designed for precise position control in Ovation™ Distributed Control Systems (DCS). This module works seamlessly with other electronic modules, such as 1C31199G02, 1C31199G03, and 1C31199G01, to deliver accurate feedback using LVDT (Linear Variable Differential Transformer) technology. Ideal for motion control applications, the 1C31201G02 offers six channels, making it a reliable solution for complex industrial automation systems.

Key Features

Six Channels Supported: The 1C31201G02 provides support for six independent channels, enabling simultaneous control and monitoring of multiple motion axes in industrial applications.
LVDT Feedback: With LVDT technology, the module ensures high-precision feedback for position control. This feature improves the accuracy of motion control systems and reduces errors in industrial automation.
Wide Voltage Support: The 1C31201G02 supports both AC and DC LVDT outputs, offering flexibility for integration with various systems:
- AC LVDT Output: 19 VPP (for modules 1C31199G02 and 1C31199G03)
- DC LVDT Output: 16 VDC (for module 1C31199G01)
High Output Frequency: The module supports two different output frequencies for specific modules:
- 1kHz for 1C31199G02
- 3kHz for 1C31199G03
Industrial Power Supply Compatibility: The 1C31201G02 is compatible with standard industrial power supplies, making it easy to integrate into existing automation systems.
CE and RoHS Certifications: This module is CE and RoHS certified, ensuring compliance with European standards for safety and environmental requirements.

Applications

The EMERSON 1C31201G02 is an essential component in Ovation™ DCS, designed for use in motion control systems. It is ideal for the following applications:

Industrial Automation: Used in automated systems requiring precise motion control and feedback.
Position Control Systems: Ensures accurate position tracking in machinery and other industrial equipment.
Process Control: Supports complex industrial processes where precise and reliable motion control is crucial.
Energy and Power Generation: Employed in energy and power systems for accurate control of moving components.

Technical Specifications

Parameter	Specification
Model Number	1C31201G02
Manufacturer	Emerson
Product Type	Servo Driver Personality Module
Channels Supported	6 channels
System Platform	Ovation DCS
Output Voltage (AC LVDT)	19 VPP (for 1C31199G02 and 1C31199G03)
Output Voltage (DC LVDT)	16 VDC (for 1C31199G01)
Output Frequency	1kHz for 1C31199G02, 3kHz for 1C31199G03
Power Supply	Compatible with standard industrial power supplies
Dimensions	12.1 x 5.4 x 14 cm
Weight	0.22 lbs (approx. 100 g)
Certifications	CE, RoHS
Operating Temperature	-40°C to +70°C

Design and Integration

The 1C31201G02 is compact, measuring just 12.1 x 5.4 x 14 cm, and weighs approximately 0.22 lbs (100 g), making it easy to integrate into tight spaces within industrial control systems. Its compatibility with a wide range of industrial power supplies and motion control modules ensures seamless integration into existing systems.
