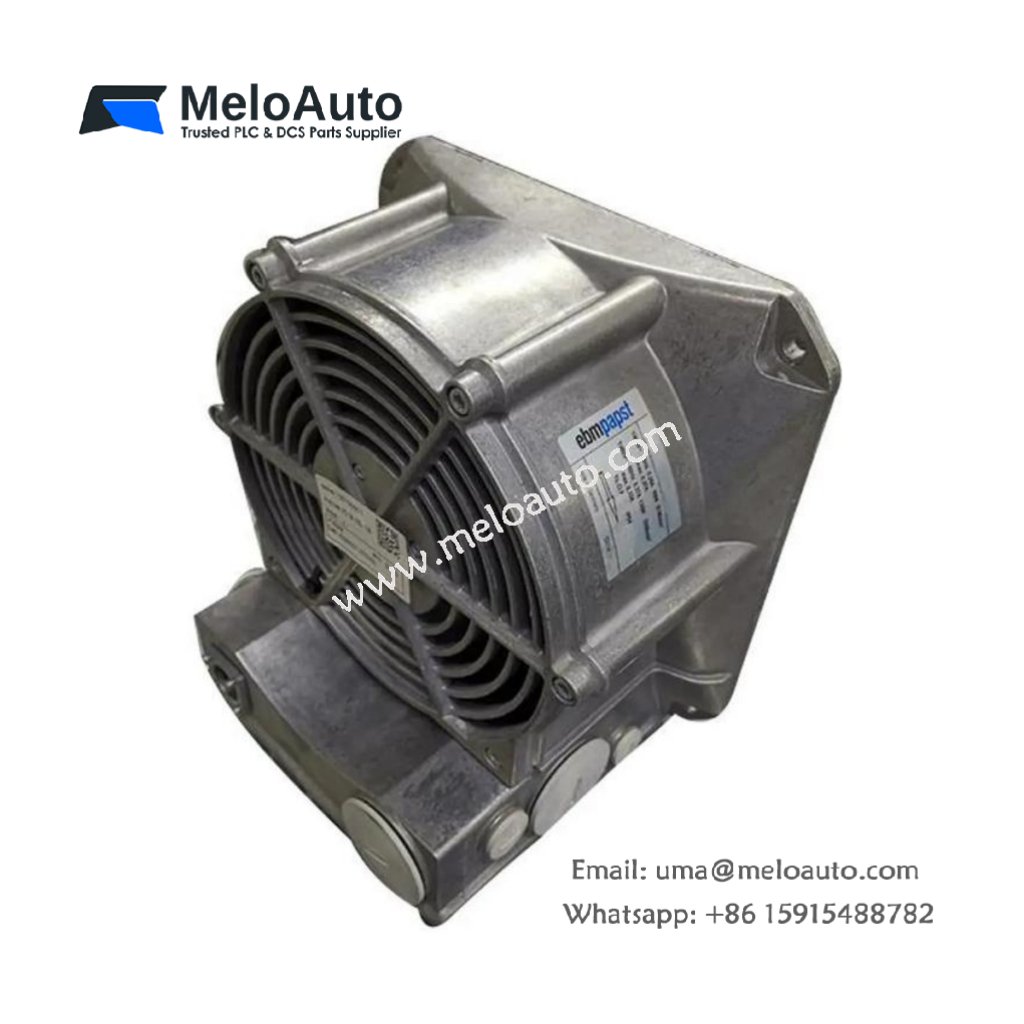

ebmpapst W2D250-ED26-15 AC Axial Fan with Housing

Reliable AC Axial Fan for Industrial Use

The ebmpapst W2D250-ED26-15 is a premium German-made axial fan designed to deliver stable cooling performance in demanding environments. With a durable housing and optimized impeller geometry, it combines efficiency, airflow consistency, and long service life. Its compact size makes it easy to integrate into space-limited enclosures without compromising cooling capacity.

Technical Performance and Construction

Operating at 230V AC, the fan supports both 50Hz and 60Hz systems, ensuring flexibility across global applications. The W2D250-ED26-15 features a 250mm impeller diameter, producing approximately 950 m³/h airflow at 2700 rpm. The external rotor motor reduces energy loss and vibration, improving long-term stability. Furthermore, the galvanized steel housing protects against corrosion, making it suitable for harsh industrial conditions.

Key Specifications

Parameter	Value
Model	W2D250-ED26-15
Brand	ebmpapst
Origin	Germany
Type	AC Axial Fan with Housing
Voltage	230V AC
Frequency	50/60 Hz
Power Input	125 W
Impeller Size	250 mm
Airflow	950 m³/h (approx.)
Speed	2700 rpm
Noise Level	67 dB(A)
Operating Temperature	-40 °C to +70 °C
Weight	3.6 kg
Dimensions (L × W × H)	250 × 250 × 120 mm
Housing Material	Galvanized Steel
Connection	Terminal Block
Mounting	Wall or Panel Mounting

Advantages of German Cooling Technology

This fan unit provides an excellent balance between energy efficiency and airflow output. Because of its compact design, it is easy to mount in cabinets, ventilation ducts, or electronic enclosures. In addition, the low vibration level improves equipment stability, protecting sensitive automation components from overheating and thermal stress.

Application Scenarios

The W2D250-ED26-15 is widely applied in automation control panels, HVAC systems, power electronics, and cooling modules for machinery. It is also suitable for renewable energy equipment, industrial furnaces, and packaging lines. Engineers choose this axial fan because it ensures reliable operation under continuous duty cycles, even in environments where cooling demands remain high.
