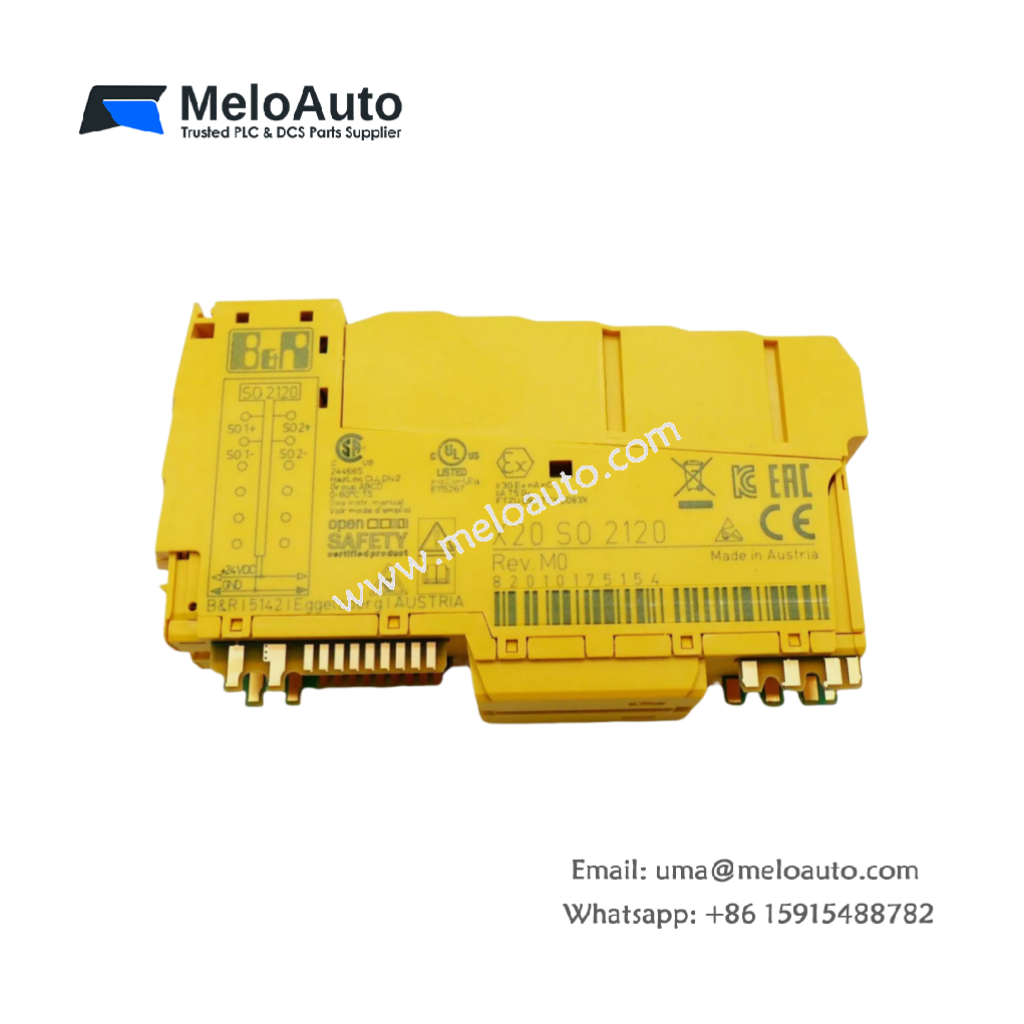

B&R X20SO2120 Safe Digital Output Module

High-Performance Safety Module for Industrial Automation

The X20SO2120 provides two safe digital outputs with a 2A nominal current. It supports safety applications up to PL e / SIL 3 and ensures reliable actuator control.

Advanced Safety Features

• Current Monitoring: Detects open circuits for enhanced safety.

• Integrated Output Protection: Prevents short circuits and overcurrent damage.

• Semiconductor Technology: Eliminates wear-related failures for long-term reliability.

Electrical Specifications

• Nominal Voltage: 24V DC

• Total Output Current: 4A (2A per channel)

• Output Type: FET, positive and negative switching

• Leakage Current: <10 µA

• Short Circuit Protection: Integrated

Rugged and Certified for Industrial Use

• Certifications: CE, UL, ATEX, DNV, KR, ABS, BV, CCS

• IP20 Protection: Suitable for harsh environments

• Operating Temperature: 0 to 60°C (horizontal), 0 to 50°C (vertical)

• Installation Altitude: Up to 2000m without restrictions

Reliable and Easy Integration

• Mounting: Compatible with X20 12-pin terminal blocks

• Automation Studio Support: Version 3.0.71 or later

• Fast I/O Cycle Time: 800µs for real-time automation

The B&R X20SO2120 delivers high-performance, safe actuator control in critical automation environments. It ensures precise operation, durability, and compliance with global safety standards.
