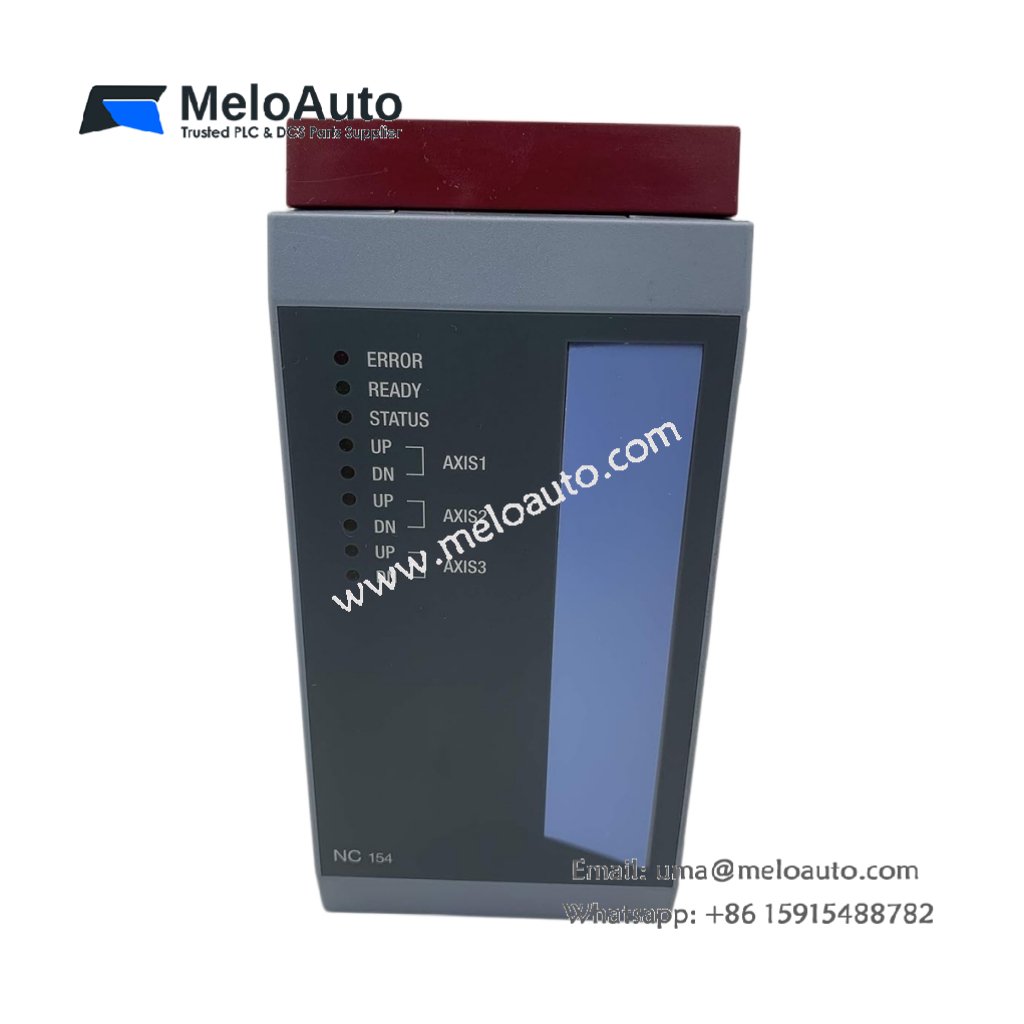

B&R 3NC154.60-2 NC154 Axis Controller

Overview

The B&R 3NC154.60-2 module, part of the System 2005 NC 154 series, delivers advanced 3-axis motion and positioning control for industrial automation. Each axis features precise input handling for incremental and SSI absolute encoders, ensuring smooth and synchronized operation across complex machinery.

Key Features

Supports 3 independent axes with high-speed coordination.
Compatible with both incremental encoders and SSI absolute encoders.
Integrated analog output for ±10 V control signals.
Offers 5 digital inputs and 1 relay output for flexible integration.
Designed for precision positioning in CNC, robotics, and automated production systems.

Technical Specifications

Specification	Description
Model	3NC154.60-2 / 3NC154602
Series	NC 154 – System 2005
Manufacturer	B&R (Bernecker & Rainer)
Axes	3
Input Frequency	150 kHz per axis
Encoder Type	Incremental or SSI Absolute
Resolution	32-bit
Encoder Supply Voltage	5 VDC or 24 VDC
Digital Inputs	5 inputs, 24 VDC, sink
Relay Output	1 output, 24 VAC / 24 VDC, 1 A
Analog Output	±10 V, 12-bit resolution
Connection Interface	Requires 3 × TB162 terminal blocks (ordered separately)

Dimensions and Weight

Parameter	Value
Dimensions (L × W × H)	160 × 100 × 45 mm
Net Weight	0.65 kg
Mounting Type	DIN rail or panel mount

Origin

Parameter	Value
Country of Origin	Austria

Applications

The B&R 3NC154.60-2 positioning module provides reliable axis control in servo systems, packaging lines, and robotic automation. It ensures precise motion synchronization, efficient encoder feedback processing, and consistent output performance, optimizing overall equipment accuracy and cycle time.

Ordering Information

To complete installation, order three TB162 terminal blocks separately. The 3NC154.60-2 integrates seamlessly into B&R System 2005 platforms, offering scalable motion control for a variety of automation tasks.
