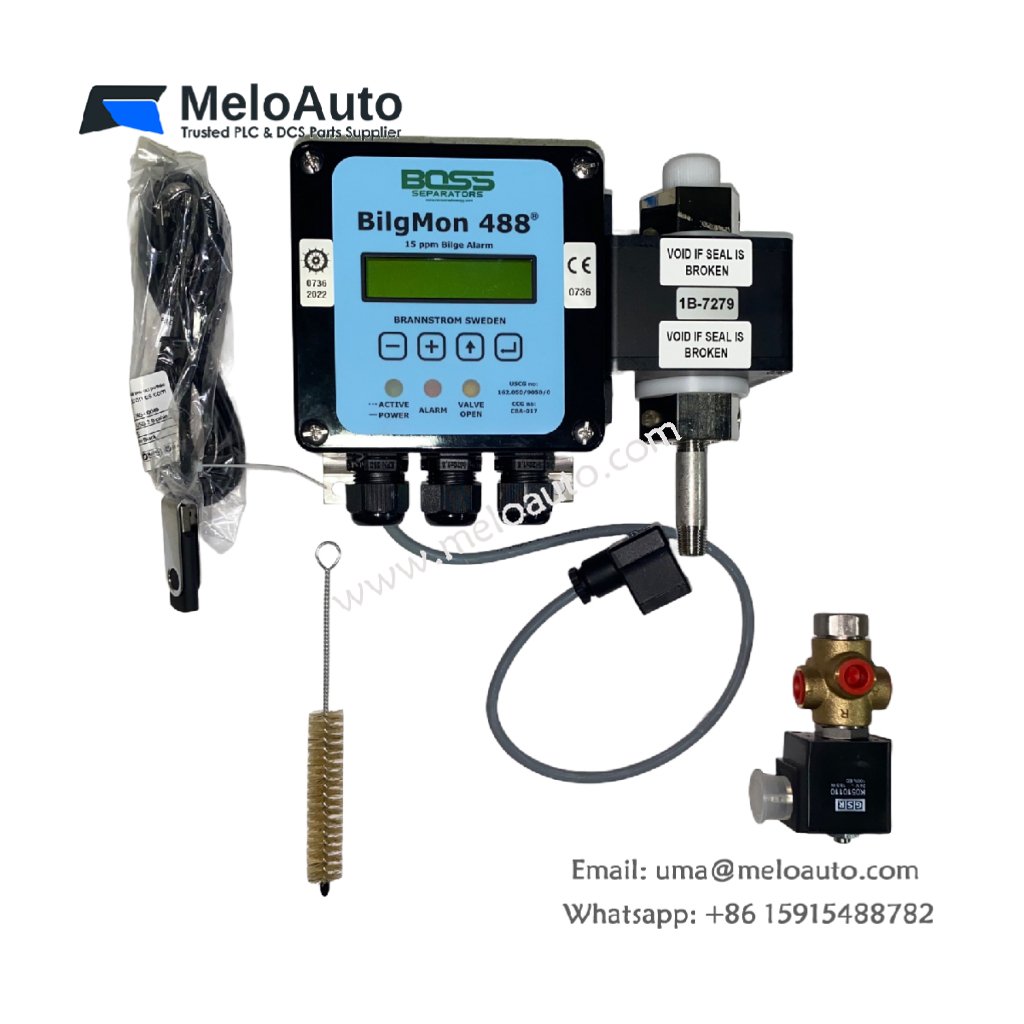

BilgMon 488 15ppm Bilge Alarm – Marine Oil Content Monitoring

Overview

The BilgMon 488 15ppm bilge alarm monitors oil content in marine wastewater, ensuring compliance with IMO MEPC.107(49) regulations. Its compact design allows easy retrofitting on existing separators.

Key Features

Detachable measuring cell with wireless communication for easy replacement or recalibration
Optional 5ppm version meets “Clean Design” class notation
Oil content range: 0–30 ppm
Current output: 0–20 mA or 4–20 mA
Automatic fresh water flushing for accurate measurements
User interface: LCD display and keypad
Data retrieval via LCD or USB port
Supplied with 3-way flushing valve, piping set, and connectors

Technical Specifications

Parameter	Value
Model	BilgMon 488
Oil Content Range	0–30 ppm
Current Output	0–20 mA / 4–20 mA
Power Supply	115/230 VAC or 24V AC/DC
Approvals	IMO Resolution MEPC.107(49)
Measuring Cell	Detachable with wireless communication
Automatic Flushing	Fresh water flushing
User Interface	LCD display, keypad
Data Retrieval	LCD display or USB port
Included Accessories	3-way flushing valve, piping set, connectors
Optional Version	5 ppm, “Clean Design”

Benefits

The BilgMon 488 simplifies marine oil monitoring, ensures regulatory compliance, and allows easy maintenance with its detachable smart measuring cell. Compact and reliable, it is ideal for retrofit installations or new setups.
