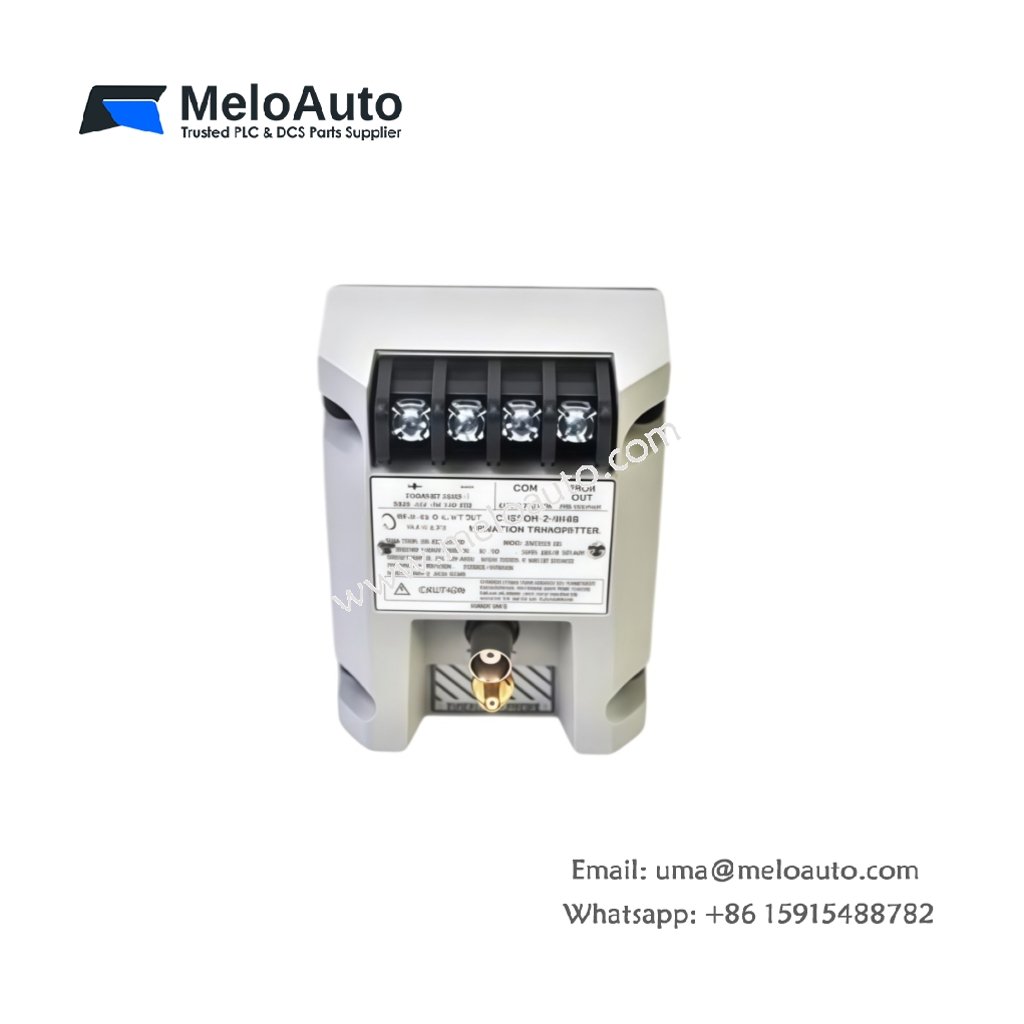

Bently Nevada 991-25-XX-01-CN Thrust Transmitter

The 991-25-XX-01-CN functions as a thrust transmitter within Bently Nevada machinery protection systems. This unit measures axial rotor position on turbines and compressors in real time. Consequently, reliability engineers gain accurate thrust data for safe machine operation.

Technical Specifications Overview

This transmitter combines a sealed housing with rugged industrial construction. Moreover, its parameter set helps engineers plan mounting positions and cable routing accurately.

Parameter	Specification
Product Type	Thrust transmitter
Compatibility	Bently Nevada machinery protection systems
Interface	Two-wire loop output connection
Dimensions	Approx. 100 mm × 75 mm × 60 mm
Weight	Approx. 0.6 kg
Measurement Range	Axial position proportional output
Energy Storage	None (loop powered)
Mounting	Bracket or panel installation
Operating Voltage	24 V DC loop supply

Interface and Signal Connection Details

This unit connects through a two-wire loop output cable. Therefore, technicians achieve simple wiring inside crowded junction boxes. The transmitter converts probe signals into a standardized current output. In addition, it draws 24 V DC directly from the loop supply.

Physical Characteristics and Mounting

The device measures roughly 100 mm wide and 75 mm high. Furthermore, its 60 mm depth suits compact machine-side enclosures. It weighs about 0.6 kg. Consequently, it adds minimal load to bracket assemblies. Installation uses a bracket or panel mount, then technicians tighten the retaining hardware.

Operational Role and Maintenance

Engineers apply this transmitter for axial displacement monitoring and thrust bearing protection tasks. Meanwhile, front-panel indicators show live signal status during troubleshooting. The unit holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the loop supply for power.
