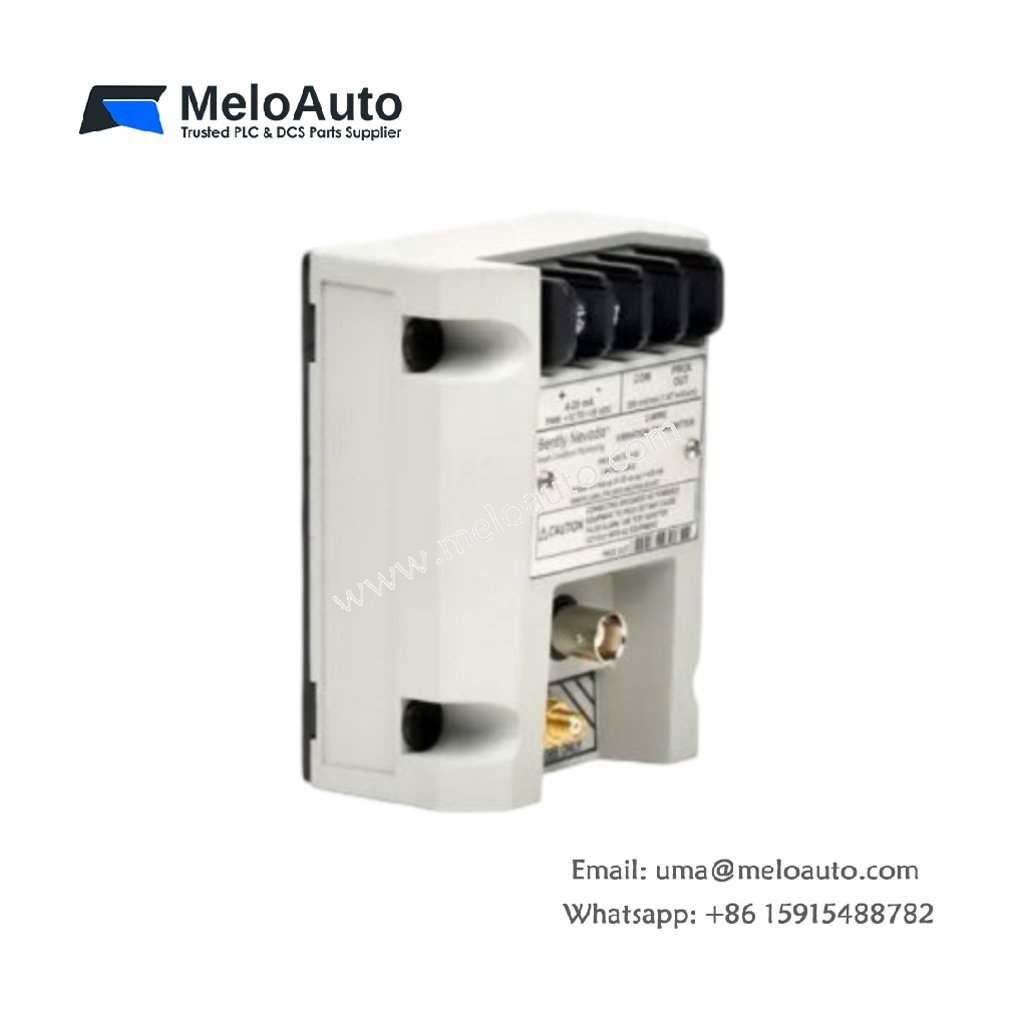

Bently Nevada 991-06-50-01-01 Thrust Transmitter

The 991-06-50-01-01 serves as a loop-powered thrust transmitter within the Bently Nevada 991 series. Reliability engineers rely on this device for continuous axial displacement monitoring on steam turbines and centrifugal compressors. Consequently, it converts eddy current probe signals into standard 4-20 mA outputs for plant control systems.

Technical Specifications

Parameter	Specification
Measurement Type	Axial Thrust Position
Input Signal	Eddy current probe input
Output Signal	4-20 mA, loop-powered
Supply Voltage	12 to 30 VDC
Measurement Range	0 to 25.4 mm (0 to 1.0 in)
Mounting Type	DIN rail or panel mount
Weight	Approximately 400 g
Operating Temperature	-40 °C to +85 °C
Housing Material	Industrial-grade polymer
Terminal Type	Screw terminals
Accuracy	±1% of full scale
Isolation	Galvanically isolated

How the Transmitter Works

This unit accepts input from a Bently Nevada proximity probe and oscillator-demodulator. It processes the displacement signal and generates a proportional current loop output. Meanwhile, the loop-powered design removes the need for separate supply wiring.

Interface and System Integration

The 991-06-50-01-01 connects directly to PLCs, DCS platforms, and plant protection systems. Screw terminals simplify field wiring and routine maintenance tasks. Furthermore, DIN rail mounting saves valuable cabinet space in control rooms.

Environmental and Application Notes

The industrial-grade housing resists dust, moisture, and typical plant contaminants. Additionally, the wide temperature range suits both indoor and outdoor installations. Therefore, this transmitter performs reliably in demanding industrial environments.
