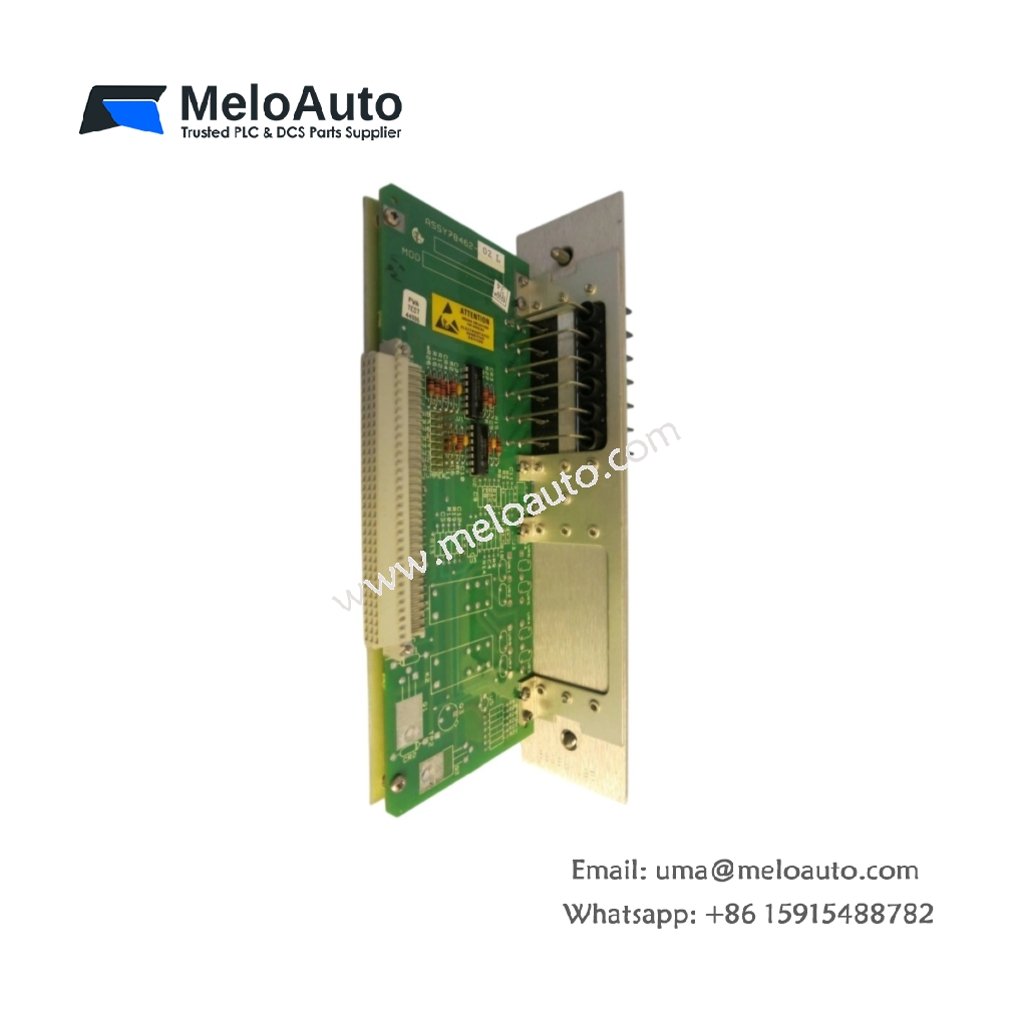

Bently Nevada 78462-02 Transducer I/O Module for Condition Monitoring

The 78462-02 transducer I/O module links proximity probes and seismic sensors to Bently Nevada monitoring systems. Reliability engineers choose this unit when they need accurate vibration signal conditioning. Moreover, the module supports continuous machine protection in demanding plant environments.

Interface and Channel Layout

This module provides four transducer input channels through front-panel connectors. Specifically, each channel accepts signals from proximity probes and accelerometers. Therefore, technicians connect field sensors directly and skip external conditioning hardware.

Physical Dimensions and Weight

The unit measures 160 mm in height, 25 mm in width, and 200 mm in depth. Additionally, it weighs approximately 0.4 kg, which simplifies rack and cabinet mounting. These slim dimensions help engineers fit several modules into dense monitoring racks.

Component Count and Energy Storage

Each assembly contains 92 electronic components on a shielded circuit board. Furthermore, the module integrates a capacitor bank for signal filtering and transient suppression. This energy storage element stabilizes sensor excitation and protects sensitive measurement circuitry.

Key Technical Parameters

Integration and Operational Benefits

The 78462-02 module pairs with Bently Nevada 3500 monitoring systems and System 1 software. Consequently, reliability teams detect machine faults early and plan maintenance proactively. The compact form factor also lowers rack space and installation cost. Overall, this I/O module delivers dependable vibration data for rotating equipment protection.
