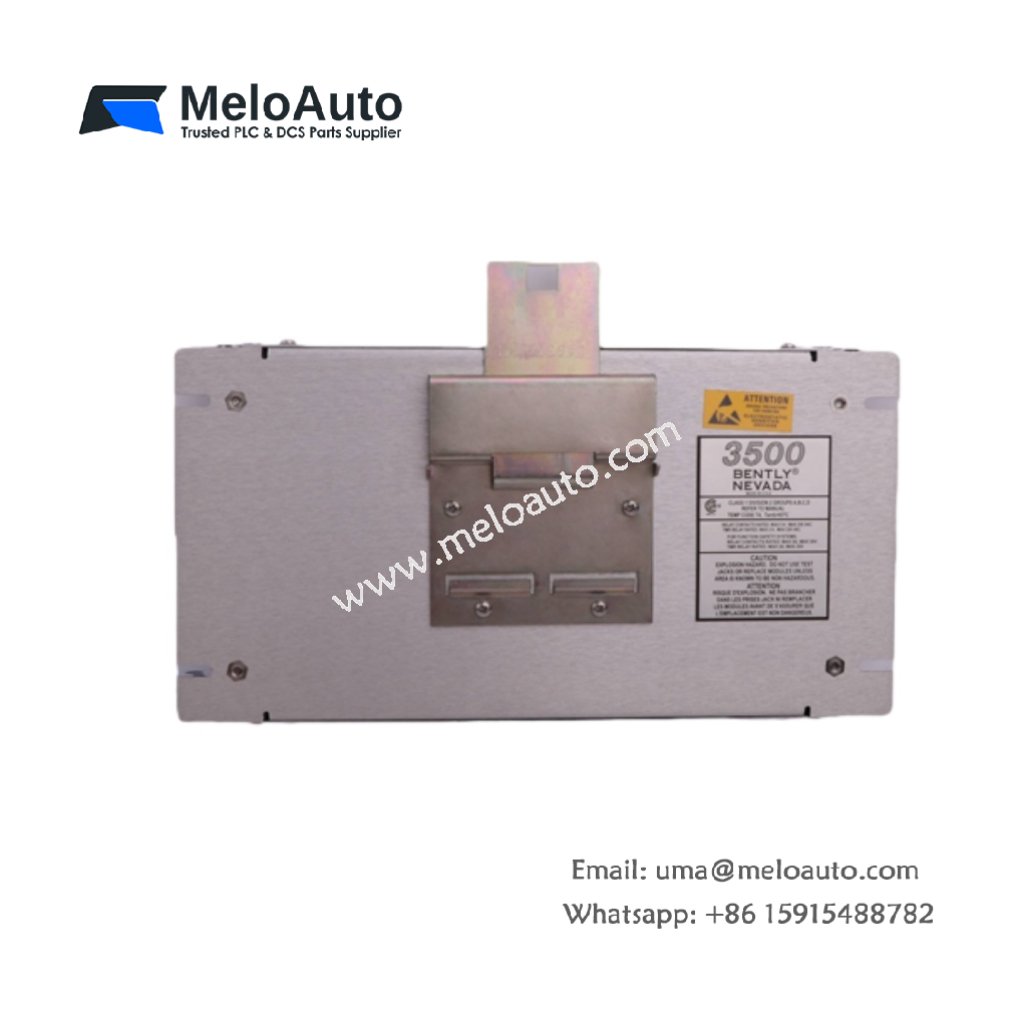

Bently Nevada 3500/94 Display Module

The Bently Nevada 3500/94 VGA Display integrates reliable visualization with responsive touch-screen control and therefore supports the entire 3500 Machinery Protection System. The module works with the 3500/94 I/O card and a remote VGA monitor, which you may install up to 8 meters from the rack. This design improves panel layout flexibility while maintaining clear system diagnostics and fast navigation.

Key Functions

The 3500/94 Display shows complete system information, so technicians access event lists, module data, alarm summaries, and AP-670-style rack views without delay. The interface also provides nine customizable display pages that help engineers organize high-value vibration and system-health data.

Technical Specifications

Below are verified specifications directly related to performance, electrical characteristics, interface behavior, and environmental tolerance.

3500/94 VGA Module & I/O Card

Parameter	Specification
Power Consumption	3.2 W typical / 4.6 W max
Input Signal Range (Non-isolated I/O)	+0.8 V to –21.0 V
Input Signal Range (Isolated I/O)	+5 V to –11 V
Input Impedance	21.8 kΩ minimum
Frequency Range	1 to 1,200,000 cpm (0.017–20 kHz)
Network Interface	High-speed internal network for status and data
Communication	RS232 port for touch-controller data
Visual Indicators	OK LED, TX/RX LED
VGA Output	Analog RGB + sync signals

Display Monitor

Parameter	Specification
Type	Standard color VGA monitor with touch screen
Mounting Distance	Up to 8 m (25 ft) from the rack
Display Options	9 customizable display formats

Environmental Limits

Condition	Specification
Operating Temperature	–30 °C to +65 °C (–22 °F to +150 °F)
Storage Temperature	–40 °C to +85 °C (–40 °F to +185 °F)
Humidity	95% non-condensing

3500/94 Display Router Box

Parameter	Specification
Power Input	+24 VDC ±6% (22.5–25.5 VDC)
Power Consumption	4.7 W max
VGA Inputs	4 video channels
RS232 Inputs	4 touch-controller channels
VGA Output	1 video channel
RS232 Output	1 touch-control channel
Indicator	OK status LED

Origin, Dimensions & Weight

Item	Specification
Country of Manufacture	United States (Bently Nevada, Baker Hughes)
Module Dimensions (approx.)	241 mm × 24.4 mm × 187 mm
Module Weight (approx.)	0.45 kg
Monitor Dimensions	According to OEM display model
Monitor Weight	According to OEM display model

Applications

Engineers use the 3500/94 Display in turbine, compressor, and critical rotating-equipment installations because it delivers fast access to vibration, alarm, and system integrity data.
