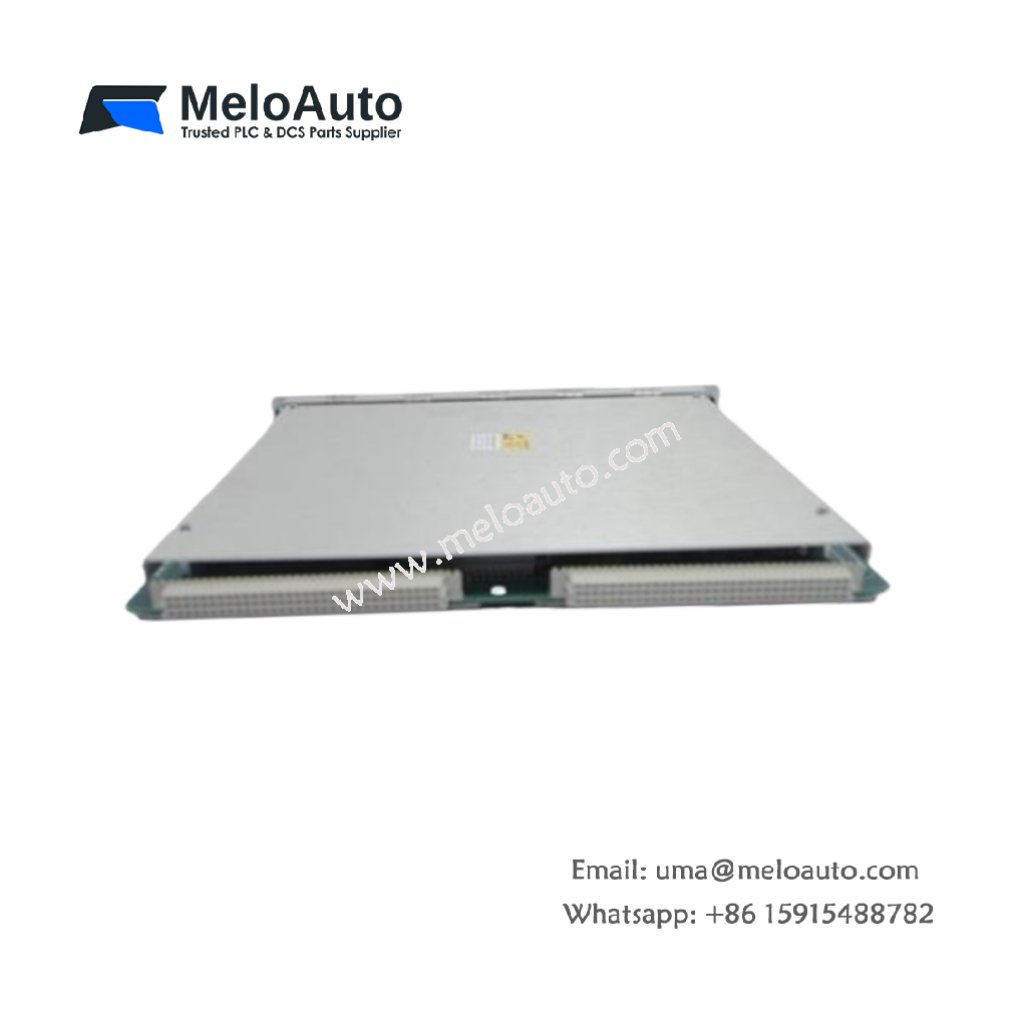

Bently Nevada 3500/92 Ethernet/Rs232 Modbus I/O Module

Overview

The Bently Nevada 3500/92 is an advanced Ethernet/Rs232 Modbus I/O Module that enables efficient communication between monitored systems and process control automation. This module integrates seamlessly with various automation systems, offering support for both Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols. The 3500/92 also ensures smooth data transfer to and from Bently Nevada’s 3500 Rack Configuration Software and Data Acquisition Software.

Key Features

Versatile Communication: Supports Modbus TCP and Modbus RTU protocols for both serial and Ethernet communications. It also incorporates the proprietary Bently Nevada protocol for integration with 3500 Rack Configuration Software.
Modular Design: The 3500/92 module fits into rack monitoring systems and communicates values and statuses efficiently.
Compatibility: Ideal for integration with existing Bently Nevada 3500 systems and process control automation setups.
Energy Efficient: With a typical power consumption of just 5.6 watts, this module offers reliability without high energy demands.

Technical Specifications

Parameter	Details
Part Number	3500/92
Manufacturer	Bently Nevada
Series	3500
Product Type	Ethernet/Rs485 Modbus I/O Module
Power Consumption	5.6 watts (typical)
Operating Temperature	-30°C to +65°C (-22°F to +149°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Dimensions (Main Board)	241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
Weight (Main Board)	0.82 kg (1.8 lb)
Dimensions (I/O Module)	241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
Weight (I/O Module)	0.44 kg (0.96 lb)
Rack Space Requirements	1 full-height front slot (Monitor Module)
Rack Space Requirements	1 full-height rear slot (I/O Module)
Humidity	95%, non-condensing

Physical Dimensions and Weight

Main Board Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
Main Board Weight: 0.82 kg (1.8 lb)
I/O Module Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
I/O Module Weight: 0.44 kg (0.96 lb)

Environmental Limits

Operating Temperature: -30°C to +65°C (-22°F to +149°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 95% non-condensing

Application

The 3500/92 is a high-performance communication gateway designed to streamline integration between Bently Nevada monitoring systems and automation networks. It is ideal for applications requiring reliable data transfer over Ethernet and Modbus networks, supporting critical industrial processes across various sectors.
