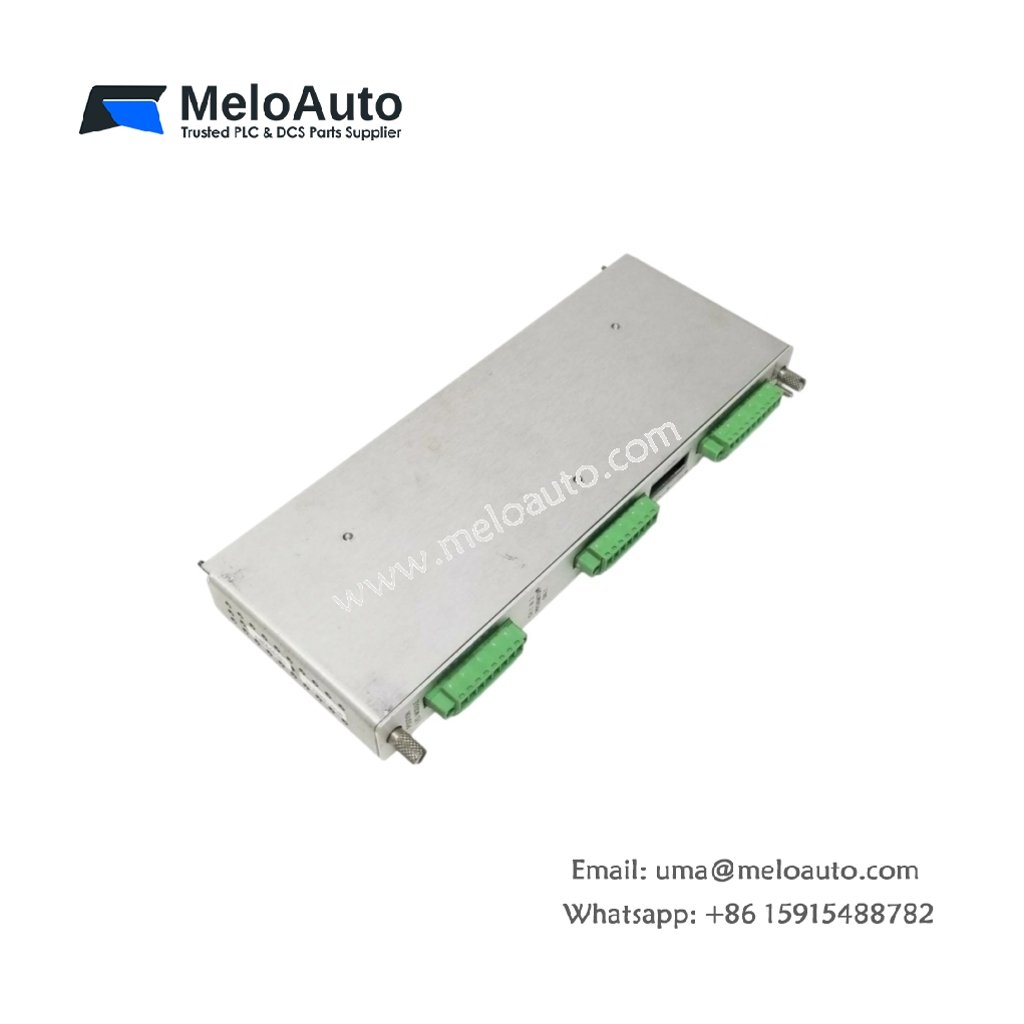

Bently Nevada 3500/45 135137-01 Position I/O Module – Precision Position Monitoring for 3500 Systems

This position I/O module delivers accurate position measurement for critical rotating machinery. It integrates seamlessly into the Bently Nevada 3500 monitoring system platform. The unit accepts inputs from various position transducers for comprehensive machine protection. Users can monitor thrust position, rod drop, and valve position with exceptional reliability.

Input Channel Configuration and Transducer Compatibility

This module features four independent input channels for position transducer connectivity. It accepts proximity probe signals from -24 V DC to 0 V for standard installations. The unit also supports LVDT and RVDT transducers for linear and rotary position sensing. Each channel includes individual signal conditioning for optimal measurement accuracy. This flexibility accommodates diverse position monitoring applications.

Signal Processing and Position Calculation

The 3500/45 135137-01 processes transducer signals with high precision and stability. It converts raw voltage inputs into engineering units for position monitoring. The module applies digital filtering to eliminate high-frequency noise from measurements. Users configure the bandwidth from 0 Hz to 30 Hz for DC position applications. This filtering ensures stable readings in electrically noisy environments. Consequently, operators receive reliable position data for critical machine protection.

Alarm and Danger Threshold Management

This module supports configurable alarm and danger setpoints for each channel. Users set high and low thresholds for warning and shutdown conditions. The module activates relay outputs when measurements exceed configured limits. These relays trigger alerts or initiate automatic machine shutdown. The system also provides time-delayed alarms to prevent nuisance tripping. This feature reduces false alarms and unnecessary downtime.

System Integration and Communication

This module communicates with the 3500 rack through the dedicated backplane bus. It exchanges data with the rack interface module for system-wide monitoring. Users configure all parameters through the proprietary 3500 configuration software. The module stores settings in non-volatile memory for automatic reloading. Additionally, it supports Modbus communication for integration with plant DCS systems. This connectivity enables centralized monitoring and data logging capabilities.

Diagnostic Functions and Self-Checking

The module performs continuous self-diagnostics to verify proper operation. It monitors transducer bias voltage and detects open-circuit or short-circuit conditions. The unit also checks internal signal integrity to identify hardware issues. The module reports transducer faults to the monitoring system for operator alerts. Front-panel LEDs provide clear visual confirmation of each channel’s status. These indicators simplify troubleshooting and minimize diagnostic time.

Power Consumption and Environmental Durability

The module draws 300 mA at 24 V DC from the 3500 rack power supply. Power dissipation remains below 5 W under normal operating conditions. The unit operates reliably between -10 °C and 65 °C ambient temperature. Humidity tolerance spans 0% to 90% without condensation issues. The module carries an IP20 rating for protection against solid objects. This robust design suits power generation, oil and gas, and heavy industrial applications.
