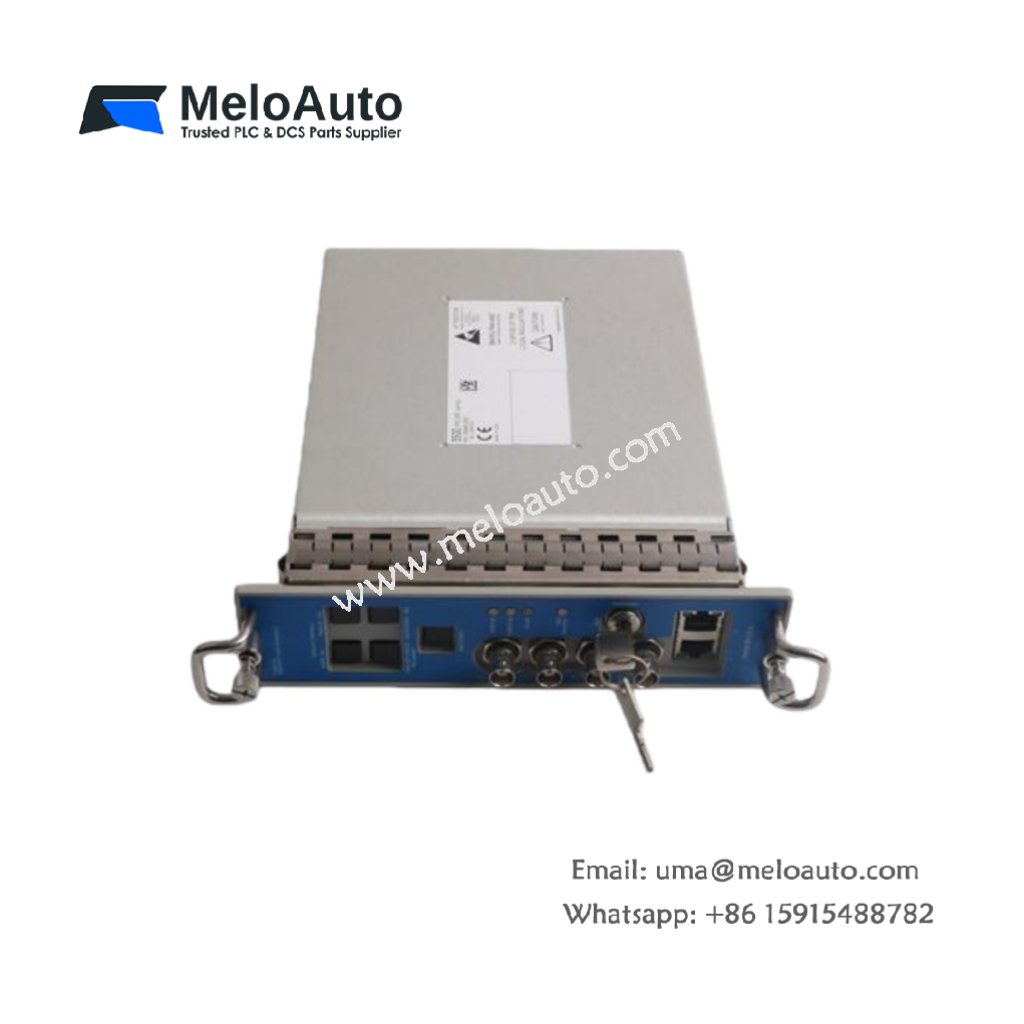

Bently Nevada 3500/23E Transient Data Interface Module

Overview

The Bently Nevada 3500/23E acts as a Transient Data Interface (TDI) connecting the 3500 ENCORE monitoring system to GE System 1 condition monitoring software. Additionally, it combines system monitoring with communication processor capabilities, ensuring reliable collection of steady-state and transient waveform data. Furthermore, the module supports Ethernet and serial communications to integrate rack-monitored values into process control and automation systems efficiently.

Moreover, the 3500/23E occupies Slot 1 of every 3500 ENCORE rack, working alongside vibration monitors such as 3500/42E to continuously collect and transmit data. Using an optional Channel Enabling Disk allows capturing transient signals for detailed analysis.

Key Features

• Integrates monitoring and communication processing within a single TDI module.
• Supports dynamic and transient data acquisition using optional enabling disks.
• Provides Ethernet (10Base-T/100Base-TX, autosensing) and serial RS232/RS422/RS485 connectivity.
• Displays rack and module status with front panel LEDs: Rack OK, TDI OK, TM, CONFIG OK, I/O Module OK.
• Includes a configurable relay to indicate system status or detected faults using Normally Energized logic.
• Front panel controls allow rack reset, alarm clearing, and display navigation for setpoints and tag names.

Technical Specifications

Applications

The 3500/23E module provides seamless integration between the 3500 ENCORE system and GE System 1 software. Consequently, it enables real-time waveform data collection, condition monitoring, and alarm processing for critical machinery. Additionally, it supports process control integration via Ethernet or serial communication protocols.
