Bently Nevada 3500/05 Chassis Rack

Rugged Enclosure for 3500 Machinery Protection Modules

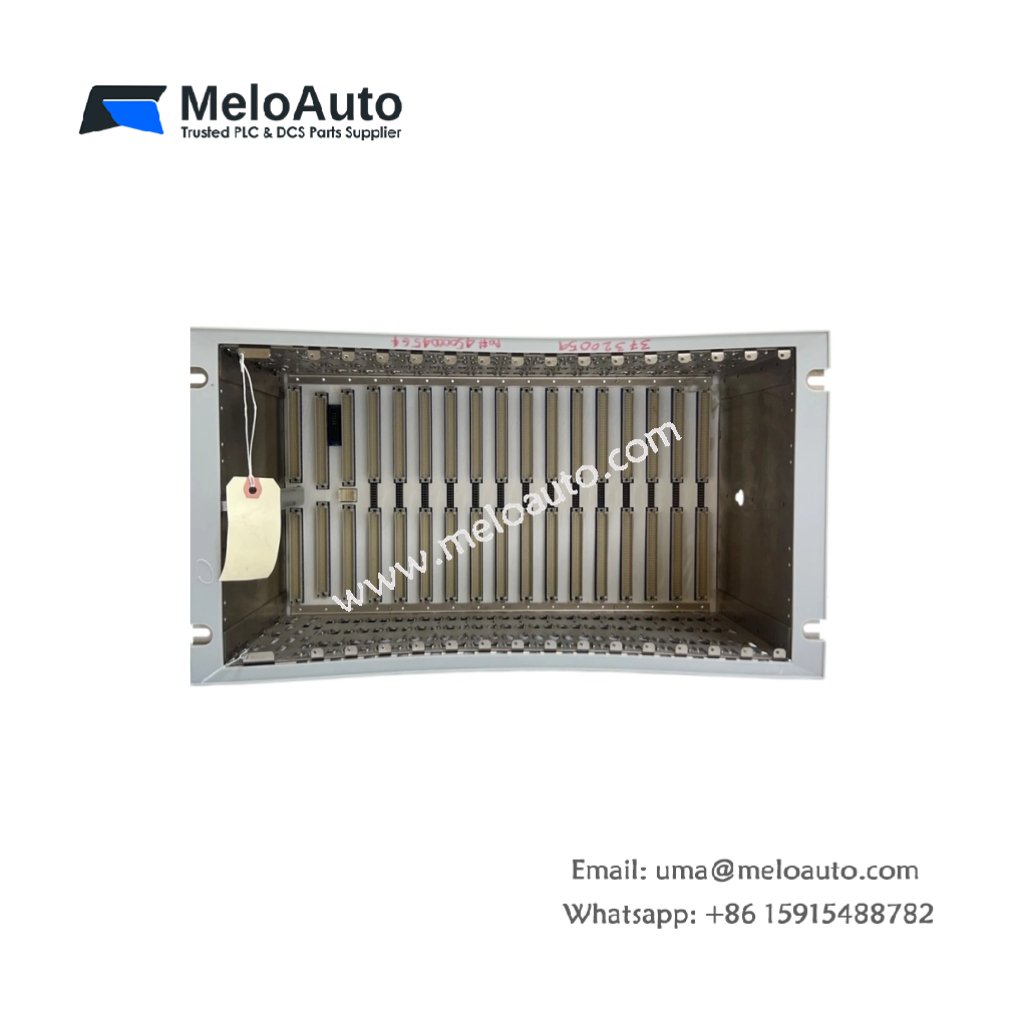

The Bently Nevada 3500/05-01-02-CN-00-01 3500/05 functions as a robust PLC chassis system rack within the 3500 series machinery protection platform. This rack houses up to 14 modules in a single housing for comprehensive monitoring solutions. Its sturdy construction measures 254 mm in height, 400 mm in width, and 305 mm in depth, fitting standard 19-inch rack installations. The total weight reaches approximately 10.5 kg, ensuring stable operation in industrial environments.

This chassis provides a backplane for power distribution and module communication throughout the system. The following table details the complete technical specifications for this system rack:

Parameter	Specification
Product Brand	Bently Nevada
Product Model	3500/05-01-02-CN-00-01 3500/05
Product Category	PLC Chassis System Rack
Platform Compatibility	3500 Machinery Protection System
Module Slot Capacity	14 (full-height modules)
Dimensions (H x W x D)	254 mm x 400 mm x 305 mm
Weight	10.5 kg
Backplane Type	Passive (power and communication)
Mounting Style	19-inch rack or panel
Power Supply Options	AC or DC (external module required)
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Protection Rating	IP20
Certifications	CE, ATEX/IECEx Zone 2, CSA, FM

Slot Capacity and Module Configuration

The 3500/05-01-02-CN-00-01 accommodates up to 14 full-height modules in a single chassis . This capacity supports comprehensive monitoring with a single rack. Users can mix monitors, communication gateways, and power supplies as needed. Engineers can therefore configure the rack for specific application requirements.

Mechanical Construction and System Integration

The passive backplane distributes power and facilitates communication between all inserted modules. A 19-inch rack mounting style simplifies installation in standard industrial cabinets. The construction includes provisions for cable management and module alignment. Maintenance teams can therefore install and service modules with minimal effort.

Environmental Resilience and Certification

The chassis operates reliably from -30°C to +65°C, covering harsh industrial conditions . Storage temperatures from -40°C to +85°C protect the rack during transport. ATEX/IECEx Zone 2 and CSA certifications enable deployment in hazardous areas . Users can therefore install this rack in diverse plant environments with confidence.
