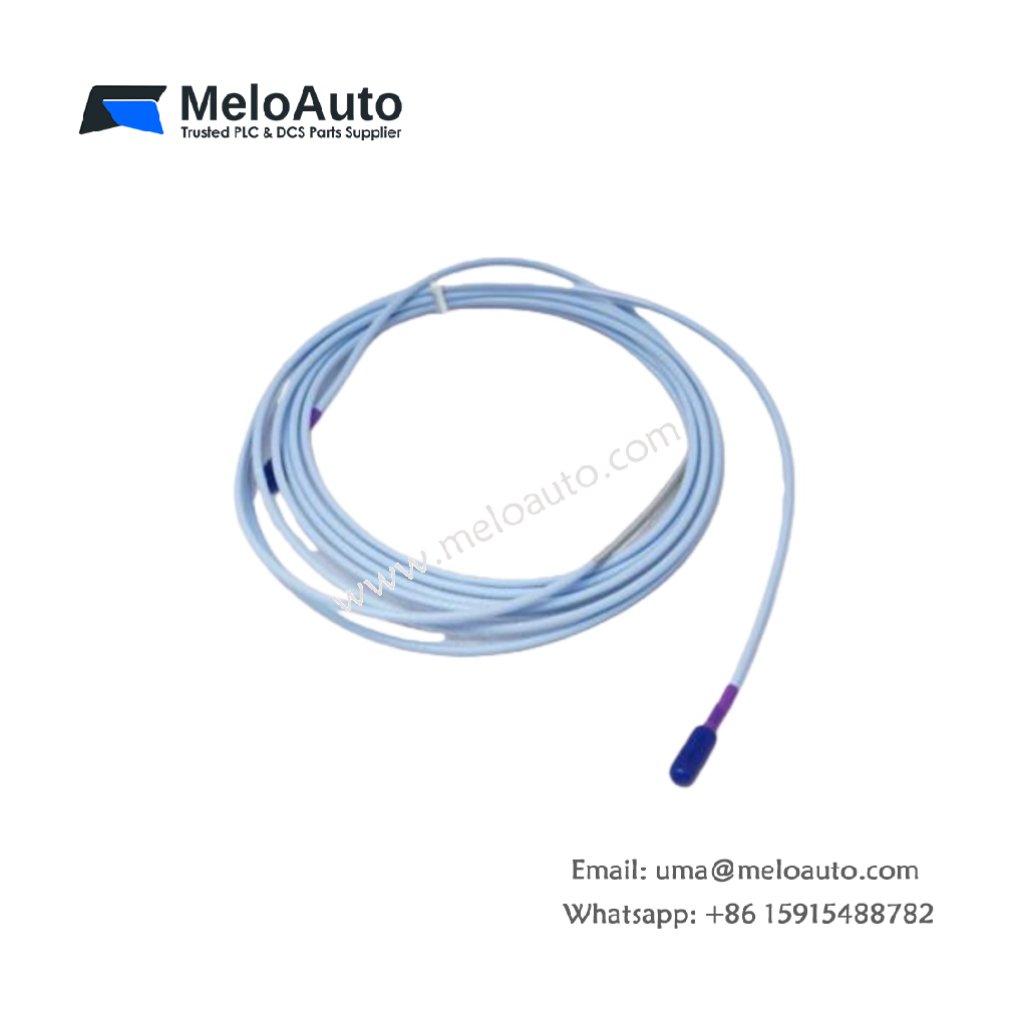

Bently Nevada 330730-080-00-00 Proximity Transducer System

Reliable Vibration and Displacement Measurement for Industrial Machinery

The Bently Nevada 330730-080-00-00 3300 XL 11 mm Proximity Transducer System provides accurate and non-contacting vibration and displacement measurements. It is designed specifically for fluid film bearing machines, offering a linear output of 3.94 V/mm (100 mV/mil). This system is particularly useful for applications that require extended linear range, such as axial position measurements, ramp differential expansion on steam turbines, and rod position monitoring in reciprocating compressors.

The 3300 XL 11 mm system includes three key components: the 3300 XL 11 mm probe, the 3300 XL 11 mm extension cable, and the 3300 XL 11 mm Proximitor Sensor. Each part of the system is designed to work seamlessly together to provide high-precision monitoring for critical industrial machinery.

Key Features

Extended Linear Range: With a tip size of 11 mm, the system offers a longer linear range than the standard 8 mm version.
High-Precision Measurement: The system delivers a 3.94 V/mm output for accurate displacement and vibration readings.
Versatile Applications: It is suitable for axial position, differential expansion, rod drop measurements, and phase reference signals.
System Compatibility: The 3300 XL 11 mm system is fully compatible with 3500 Monitoring Systems and replaces older 7200-series transducer systems.

System Components

The 3300 XL 11 mm Proximity Transducer System consists of the following components:

3300 XL 11 mm Probe: Engineered for precise non-contacting measurements in harsh environments.
3300 XL 11 mm Extension Cable: Available in various lengths to suit your installation needs.
3300 XL 11 mm Proximitor Sensor: This sensor processes input signals from the probe to provide accurate output for monitoring.

Technical Specifications

Feature	Specification
Product Type	3300 XL 11 mm Proximity Transducer System
Output Sensitivity	3.94 V/mm (100 mV/mil) for vibration and displacement measurements
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Probe Cable Specification	75 Ω triaxial, FEP insulated, available in 1, 5, or 9 meters
Extension Cable Material	75 Ω triaxial, FEP insulated
Proximitor Sensor Material	A380 aluminum
Connector Material	Gold-plated brass
System Length	5 or 9 meters, including extension cable
Tensile Strength	330 N (75 lbs) probe case to probe lead; 270 N (60 lbs) at connector
Relative Humidity	Up to 100%, non-submerged (hermetically-sealed case)
Power Requirements	-17.5 Vdc to -26 Vdc at 12 mA max (without barriers)
Output Resistance	50 Ω

Installation and Compatibility

When upgrading from the older 7200-series 11 mm and 14 mm systems, it is crucial to replace all components with those from the 3300 XL 11 mm series. Additionally, the monitoring system should be updated. If using a 3500 Monitoring System, you will need to install the latest software version that supports the 3300 XL 11 mm system. Older 3300 Monitoring Systems may require modification to ensure compatibility.

Environmental Conditions

Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: Up to 100%, non-condensing (hermetically sealed case)

Applications

The 3300 XL 11 mm Proximity Transducer System is highly effective in various industrial applications, including:

Steam turbines: For measuring ramp differential expansion.
Reciprocating compressors: For rod position and rod drop measurements.
General machinery protection: For phase reference signals and vibration monitoring.

This system is ideal for ensuring the reliability of critical equipment by providing accurate and real-time measurement data.
