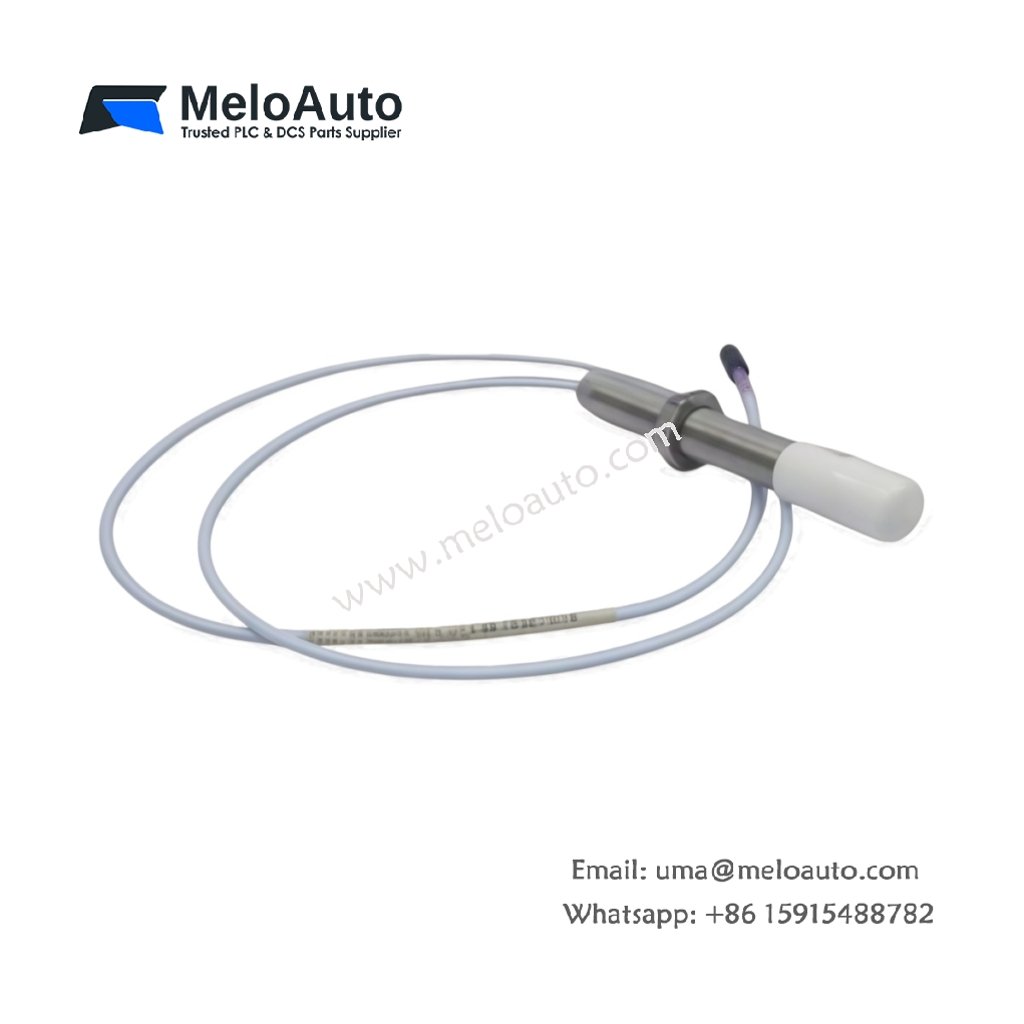

Bently Nevada 330709-000-060-50-02-05 Proximity Probe

Overview

The Bently Nevada 330709-000-060-50-02-05 belongs to the 3300 XL 11 mm proximity probe family. This eddy-current sensor delivers non-contact vibration and displacement measurements for critical rotating machinery. Consequently, engineers deploy it across power generation, oil and gas, and heavy manufacturing facilities.

Technical Specifications

The probe features a 60 mm case length and a 5.0-meter cable. Its M16 × 1.5 metric thread ensures secure mounting in standard ports. Additionally, the 11 mm tip diameter provides an extended linear range compared to 8 mm models.

Parameter	Value
Probe Tip Diameter	11 mm
Case Length	60 mm
Total Cable Length	5.0 meters
Thread Type	M16 × 1.5 metric
Weight	Approx. 0.3 kg to 0.5 kg
Linear Range	4.0 mm (160 mils)
Scale Factor	3.94 V/mm (100 mV/mil)
Probe DC Resistance	7.2 ± 0.8 ohms
Tip Material	Polyphenylene Sulfide (PPS)
Case Material	AISI 304 Stainless Steel
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-51°C to +177°C
Connector Type	Miniature coaxial ClickLoc

Performance and System Integration

This probe pairs with 3300 XL 11 mm Proximitor sensors and matching extension cables. Therefore, it integrates seamlessly into existing machinery protection systems. The non-contact eddy current technology maintains accuracy despite oil, dust, and temperature fluctuations.

Moreover, the gold-plated ClickLoc connector ensures low-resistance signal transfer. The 75-ohm triaxial FEP cable resists electrical noise in demanding industrial settings.

Applications and Reliability

Steam turbines, gas turbines, compressors, and centrifugal pumps commonly use this probe. Maintenance teams rely on it for early detection of bearing wear and shaft instability. Each unit ships factory-sealed with a twelve-month warranty.
