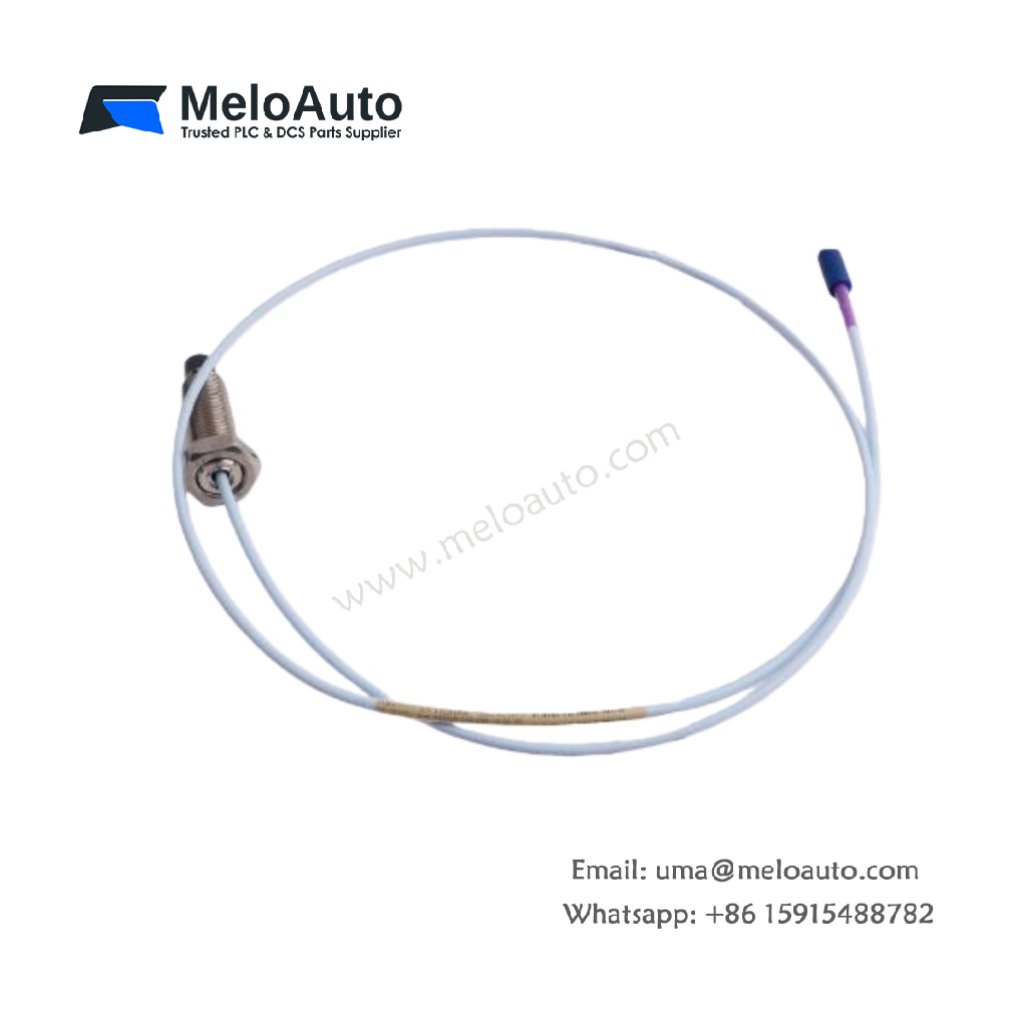

Bently 330709-000-050-10-02-00 3300 XL 11mm Proximity Probe

Advanced Proximity Probe for High-Precision Vibration and Displacement Measurements

The Bently Nevada 330709-000-050-10-02-00 is part of the 3300 XL 11 mm Proximity Transducer System, specifically designed to provide precise vibration, displacement, and axial position measurements in rotating machinery. This system includes the 3300 XL 11 mm probe, extension cable, and Proximitor Sensor. These components work together to offer reliable and accurate data for critical machine monitoring.

The system features a 3.94 V/mm (100 mV/mil) output, allowing it to deliver non-contacting vibration and displacement measurements on fluid film bearing machines. With its 11 mm tip, this transducer system achieves a longer linear measurement range compared to the standard 3300 XL 8 mm Transducer System. As a result, it is ideal for applications where extended measurement ranges are required, such as:

Axial (thrust) position measurements
Ramp differential expansion on steam turbines
Rod position or rod drop measurements in reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals

The 3300 XL 11 mm Proximitor Sensor is designed to replace the older 7200-series 11 mm and 14 mm Transducer Systems. When upgrading, it is important to replace all components with the 3300 XL 11 mm parts and update the monitoring system. If you are using a 3500 Monitoring System, an updated version of the configuration software is necessary to support the 3300 XL 11 mm system.

Key Technical Specifications

Feature	Specification
Product Type	3300 XL 11 mm Proximity Probe
Unthreaded Length	0 mm
Overall Case Length	50 mm
Total Length	1.0 meter (3.3 feet)
Measurement Range	+5 mm
Accuracy	1% of full scale
Operating Temperature Range	-18°C to 54°C
Enclosure Rating	NEMA 4X
Connector Type	Miniature coaxial ClickLoc connector, standard cable
Output Voltage	3.94 V/mm (100 mV/mil)
Agency Approval	Not required

Features and Benefits

High Accuracy: Achieves precise measurements with 1% accuracy. This makes it essential for critical machine monitoring.
Robust Design: The NEMA 4X rating ensures protection against dust and water, making it suitable for harsh environments.
Wide Measurement Range: The system effectively measures small movements, enhancing its monitoring capabilities for various applications.
Easy Integration: It integrates seamlessly with Bently Nevada monitoring systems, replacing older 7200-series systems with ease.

Applications

The Bently Nevada 330709-000-050-10-02-00 Proximity Transducer System is ideal for:

Machine Condition Monitoring: Provides real-time analysis of vibrations, shaft positions, and machine health.
Turbine Monitoring: Perfect for differential expansion measurement on steam turbines.
Compressor Monitoring: Used for rod position or rod drop measurements in reciprocating compressors.
Vibration Sensing: Delivers reliable measurements in critical vibration and displacement monitoring applications.
