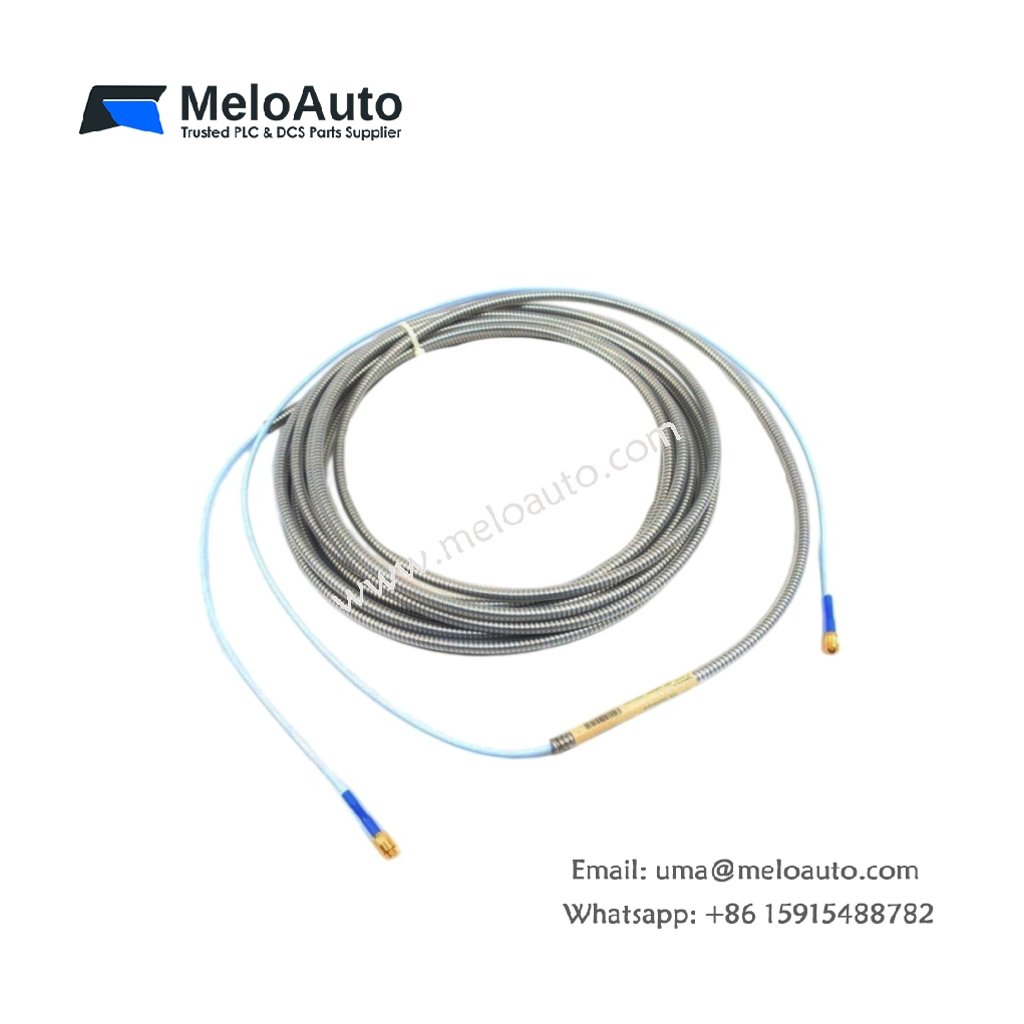

Bently Nevada 330130-080-01-00 | 8m Armored Extension Cable

The 330130-080-01-00 serves as an armored extension cable for Bently Nevada 3300 XL 8 mm proximity transducer systems. This component links the probe to the Proximitor sensor across an 8-meter span. Consequently, it preserves signal integrity for vibration and position measurements in demanding industrial environments.

Technical Specifications

The 330130-080-01-00 delivers precise electrical performance with robust mechanical protection. Each cable adheres to rigorous Bently Nevada standards for reliability and accuracy.

Parameter	Specification
Cable Length	8.0 meters (26.2 feet)
Weight	0.824 kg (approximately)
Cable Type	Armored coaxial
Connector Type	Male coaxial (probe end), Female coaxial (proximitor end)
Impedance	75 Ohm characteristic
Capacitance	69.9 pF/m
Core Resistance	1.78 Ω ± 0.27 (8.0 m)
Jacket Resistance	0.53 Ω ± 0.11 (8.0 m)
Operating Temperature	-52°C to +177°C
Minimum Bend Radius	50.8 mm
Pull Strength	330 N (TipLoc/CableLoc)

Additionally, the stainless steel armor protects against mechanical damage and fluid exposure. The 330130-080-01-00 incorporates patented TipLoc and CableLoc technologies for secure connections . Furthermore, the 75-ohm coaxial design maintains system linearity across the full measurement range.

System Integration

The 330130-080-01-00 connects directly to 3300 XL 8 mm probes and Proximitor sensors. Therefore, it extends the reach between the probe and the monitoring cabinet without signal degradation. The cable maintains consistent electrical characteristics for accurate gap voltage readings.

Installation requires attention to grounding and routing practices. The shield layer should connect at a single point, typically the Proximitor end. Additionally, the cable should not be spliced or shortened, as this disrupts calibrated impedance parameters . The minimum bend radius prevents signal loss from mechanical stress.

Reliability and Application

Industrial environments demand robust components. Therefore, the 330130-080-01-00 undergoes rigorous testing for electromagnetic compatibility and mechanical durability. The cable operates reliably in power generation, petrochemical, and manufacturing facilities.

The 330130-080-01-00 supports predictive maintenance programs. By transmitting accurate vibration data, it enables early fault detection in rotating machinery. Consequently, maintenance teams can schedule repairs before costly failures occur.
